| General Function | Filters | Icons | Alerts | Options |
The Doors and Devices view allows you to see and controls the Doors and Devices on the system.
General Function

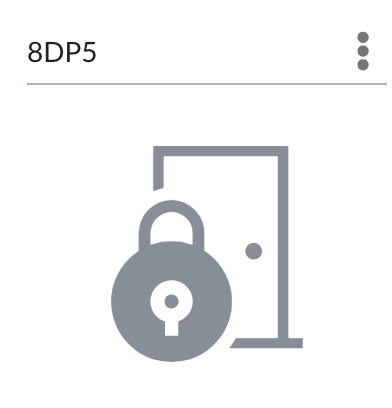

Below the name of each Door or Device is an icon displaying the current status of the Door or Device.

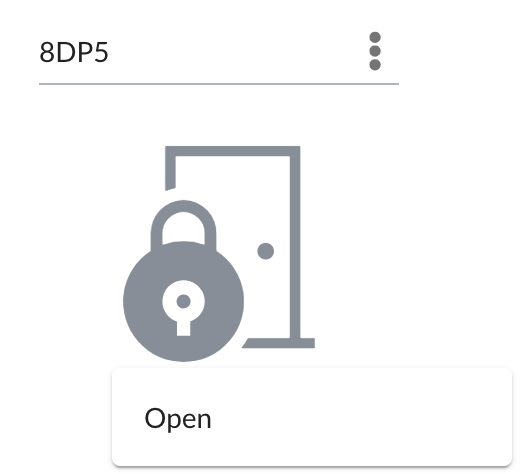

Users with Manager or higher Permissions can also use this view to unlock a door or activate a device. To do this, simply tap/click the Door/Device's icon and tapping/clicking Open.
The Door/Device will unlock or activate for the Dwell time set in Configuration.
Filters
Expanding the Filters section allows to search for and limit which Doors and Devices are displayed.
| Search | The Search filter allows you to limit display of Doors and Devices which contain certain names, letters, and/or numbers |
| Type | This allows you to only display devices/elevators/IO devices of the selected type(s). |
| States | The States filter allows you to only display Doors and Devices that are currently in the selected State(s). For more information regarding these states, please refer to the following article: Doors and Devices States information |
| Controllers & Hubs | This allows you to display only Doors and Devices are connected to the selected Controller(s) on the Cloud Node. |
Icons
The Door and Devices view displays a list of configured Doors and Devices in alphanumeric order beneath the Filters header. Different states or conditions are displayed by different icons.
Below is a list of the different icons showing the state of the Doors and Devices and the meaning of them.
| Door locked and unlocked | |
| Door closed and open | |
| Door not in DND and in DND mode | |
| Closed door on Auto-Open schedule waiting for allowed Credential input | |
| Open door on Auto-Open schedule. |
Alerts

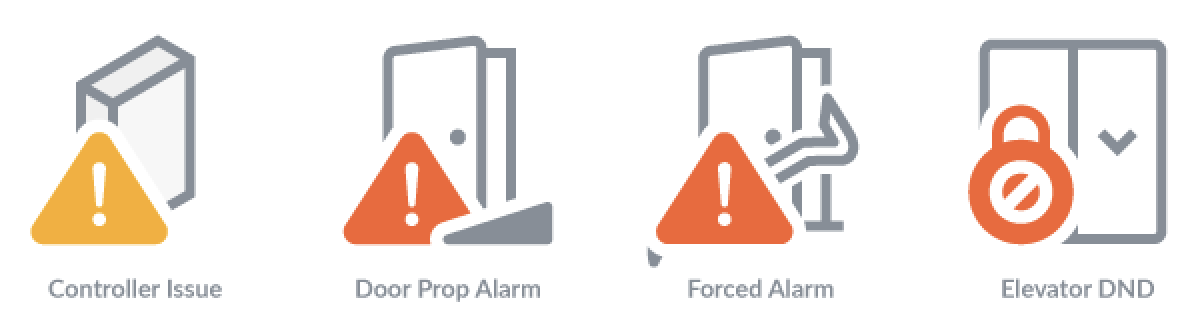

If there is a problem or potential issue with the state of the door, such as the door being propped, forced open, a controller issue or the door being toggled into an unlocked state (remaining unlocked until force toggled again), these will be displayed on the upper left and right areas around the central icon. Below is an image showing some of the icons for potential issues are shown below. For more issues about
Options
Tapping/clicking the kabob button (three vertical dots) in the upper right corner of the door/device, you are able to access other options for the door or device.
- For Doors and Premium IO Devices, the following options are available: Unlock/Lock, DND, Force Toggle, Silence Piezo (Red Readers wired OSDP only) and Go to Controller
- For Elevator Readers, the following options are available: Activate Floor, DND, DND Floor, and Go To Controller
- For Generic IO Devices, the only option available is Go To Controller.
For more information about each of these options, please refer to our article on Doors and Devices View options
