DPS Installation Overview

When installing a door position sensor, it is recommended to use 22/2 shielded wire. Route the wiring through the punch-out hole on the enclosure. Make sure the DPS wire ends are stripped and prepped for installation.

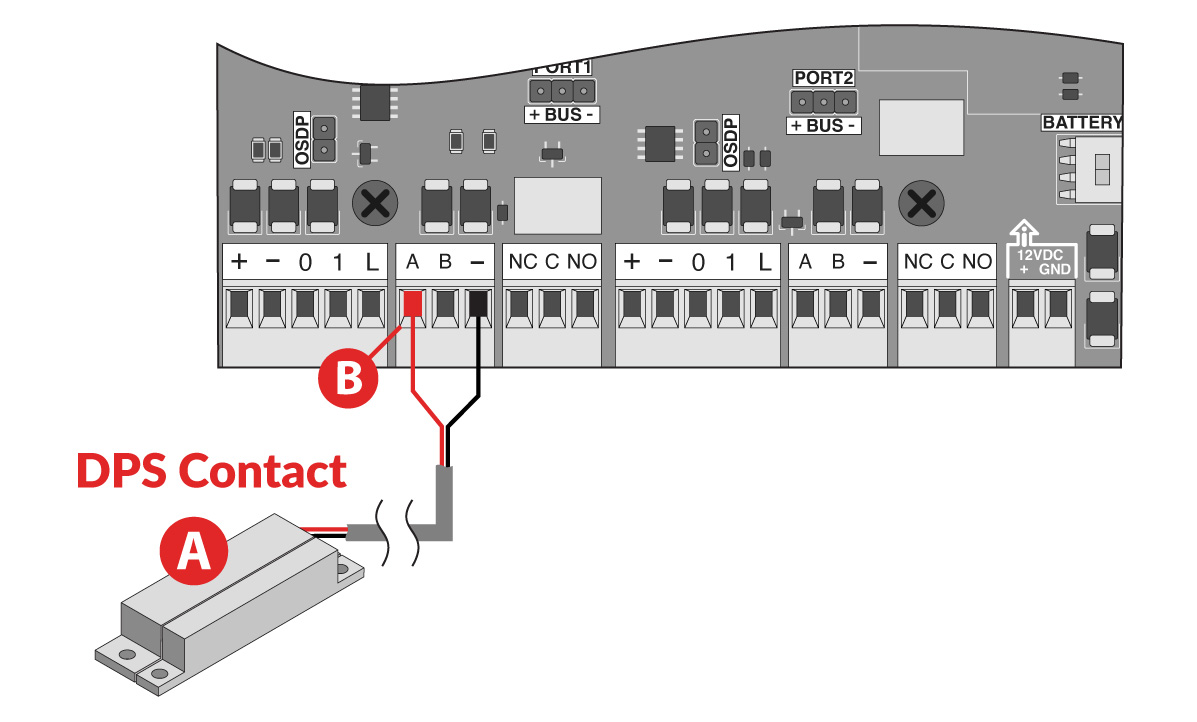

Red 1

Red 2

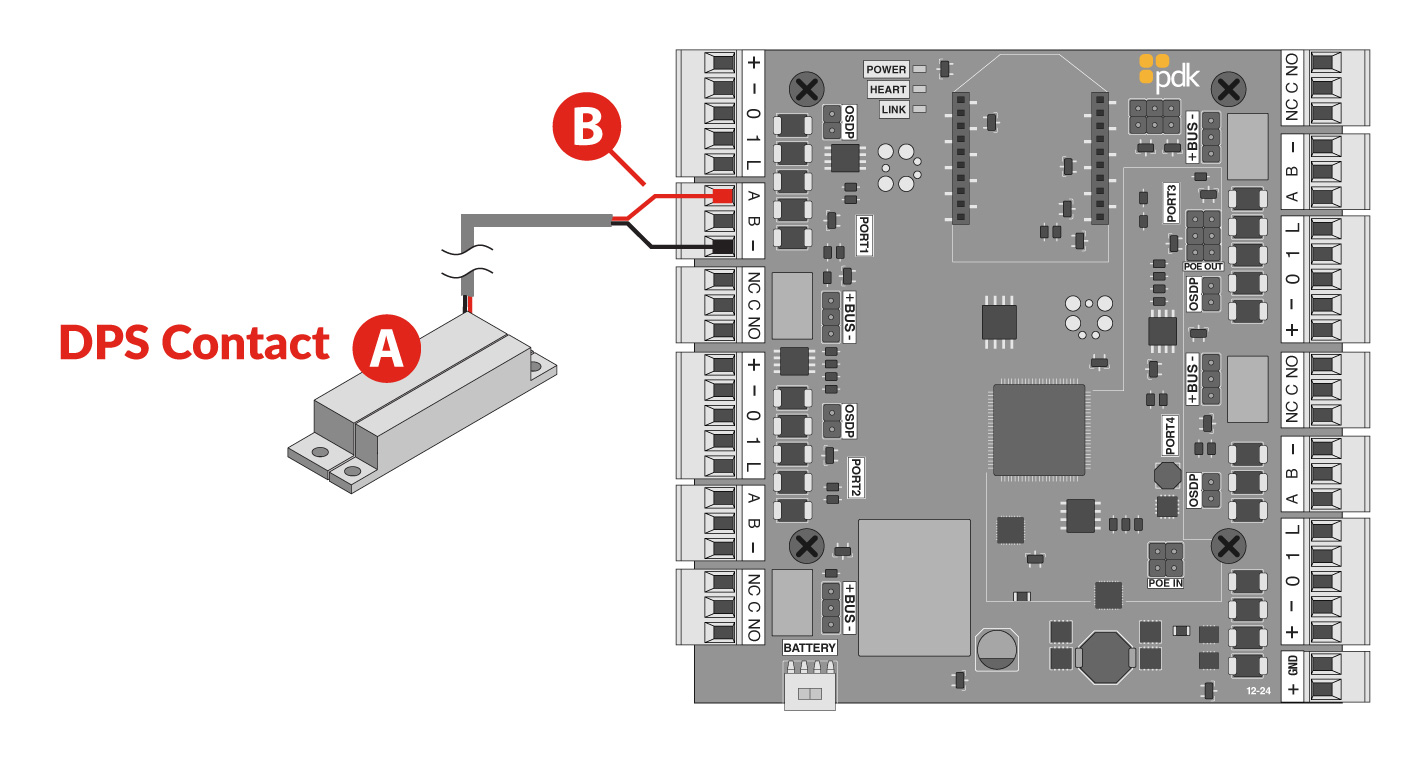

Red 4

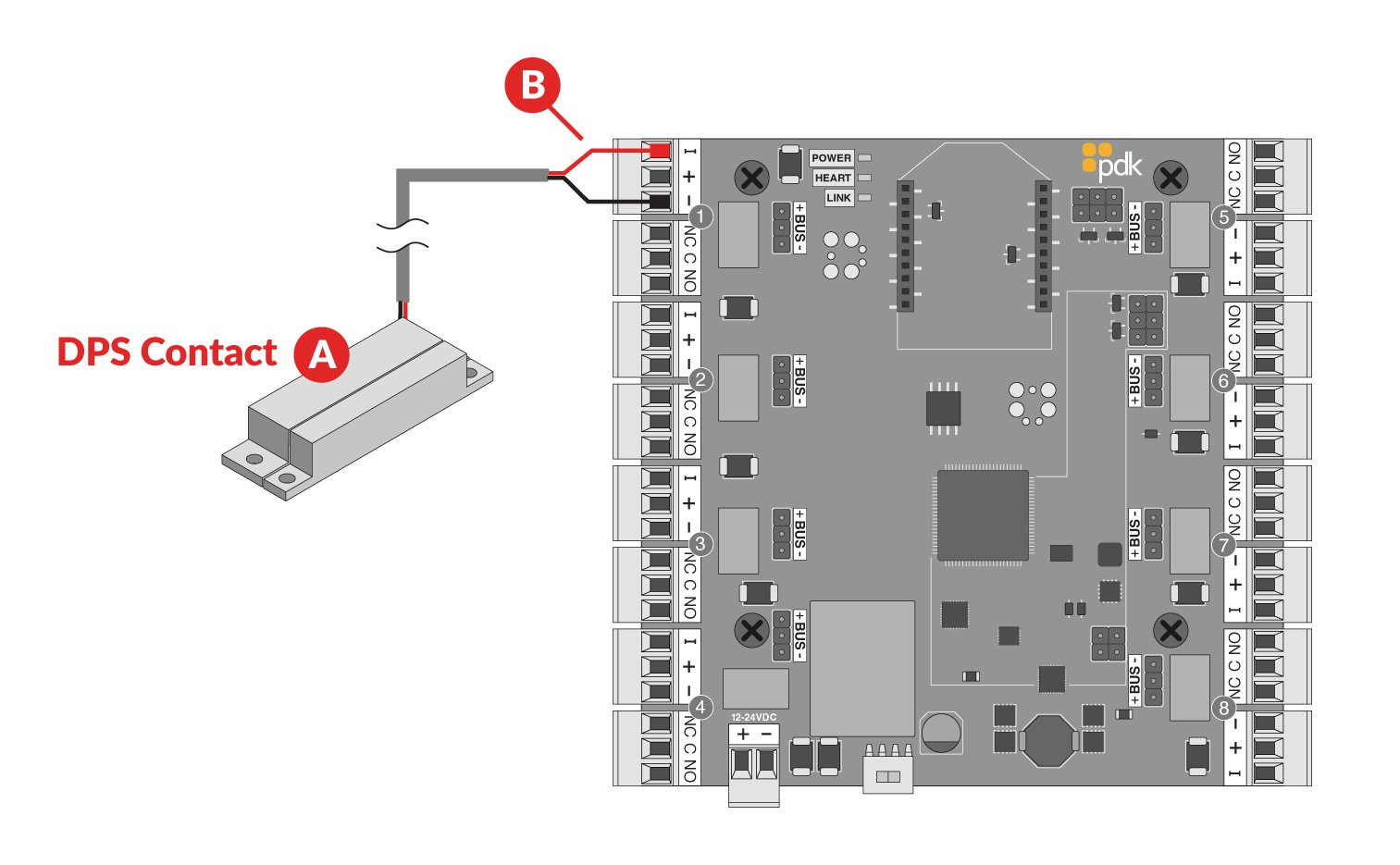

Aux 8

Remove the Input terminal block (labeled as A B - on the Red 1, Red 2, Red 4, or I + - on the Aux 8).
Insert one of the wires into the negative output.
Insert the remaining wire into input A or I.
Reinstall the terminal block.

For information about enabling a DPS for a Device, please refer to the article regarding Inputs in Device Details.
