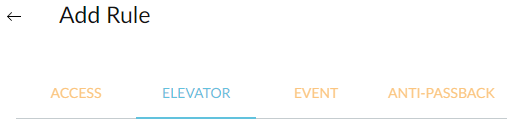

To create an Elevator Rule, tap/click the + icon next to the Rules section.
Then tap/click on the Elevator tab.

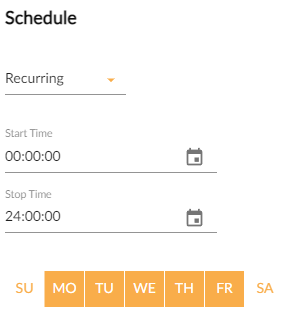

Schedule
Tap or click this field to select between Always, Recurring, or Single Date
Below is an explanation of each Schedule Type and how to configure it
Always - The rule will always be processed.
Recurring - The rule will be processed only during the selected time frame each week.
Start Time - Tap/click the digits to enter the specified time (in 24H format) the rule will begin or tap/click the calendar icon to use a visual clock to set the specified time the rule will begin.
Stop Time - Tap/click the digits to enter the specified time (in 24H format) the rule will end or tap/click the calendar icon to use a visual clock to set the specified time the rule will end.
Days - Select the days of the week the rule will be processed. By default, Monday-Friday are selected.
Single Date - The rule will only be processed for the specified timeframe on a single day.
Start Time - Tap/click the digits to enter the specified time (in 24H format) the rule will begin or tap/click the calendar icon to use a visual clock to set the specified time the rule will begin.
Stop Time - Tap/click the digits to enter the specified time (in 24H format) the rule will end or tap/click the calendar icon to use a visual clock to set the specified time the rule will end.
Day - Tap/click the field to enter the day or the calendar icon to use an on-screen calendar to select the day when the rule will be processed
Authentication Policy
The Authentication Policy option allows Elevator rules to require different credentials or credential combinations to allow access.
Card Only - This option requires the Person to scan a Card credential
PIN Only - This option requires the Person to enter a PIN on the reader's keypad.
Card or PIN - This option requires the Person to scan a Card credential or enter a PIN on the reader's keypad.
Card and PIN - This option requires the Person to scan a Card credential and enter a PIN on the reader's keypad.
Important Notes:
- ProdataKey app credentials (Bluetooth and Mobile) are treated as Card Credentials.
- If an Authentication Policy is set at the Device level for the Elevator reader, this may conflict with the selected Authentication Policy and cause Credentials to not function properly.
Floor Groups
The Floor Group option allows the selection of configured Elevator Floor Groups available on the Cloud Node system or Partition for inclusion in the rule. For information regarding the setup of Elevator Group rules, please refer to our article Elevator Group Rules
Tap/click the + icon next to Floor Groups and tap/click to place checkmarks next to the device(s) and then click Select.
After configuring the Elevator rule, tap/click the Save button in the upper-right corner of the window to save the rule.
