Elevator Rules

Integrator

Admin

Manager

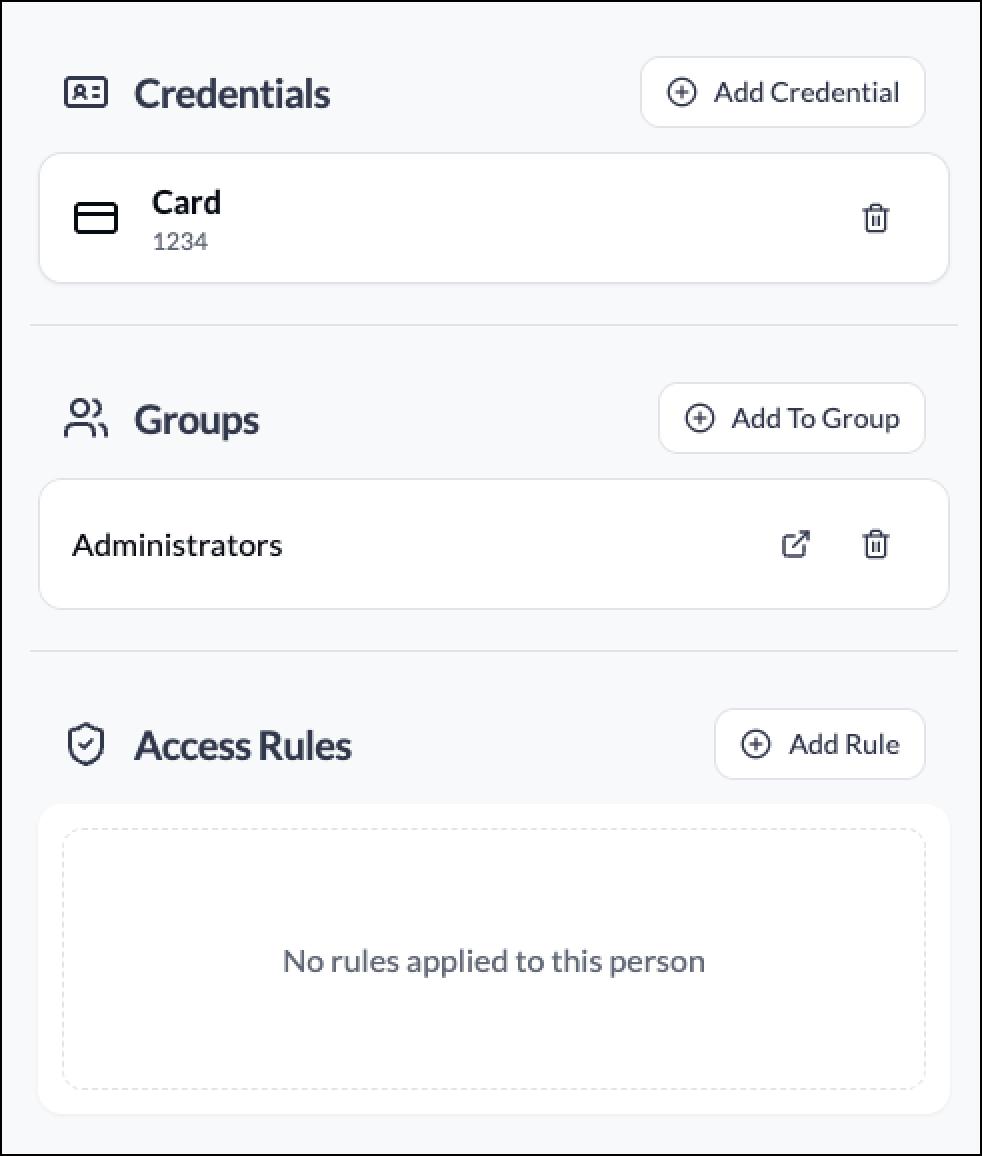

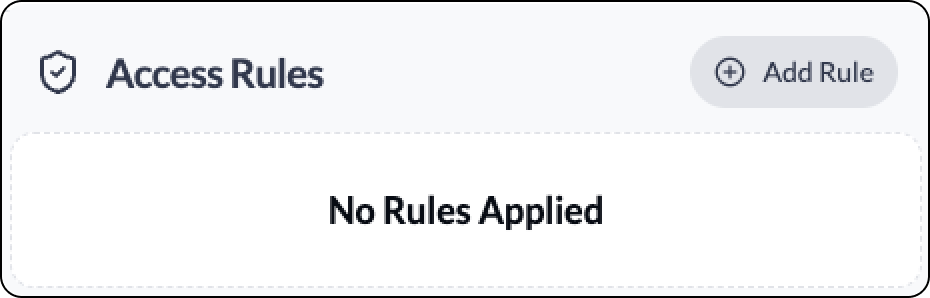

To create an Elevator Rule, select + Add Rules in the Access Rules section of the drawer. This can be done for a Person or a Group.

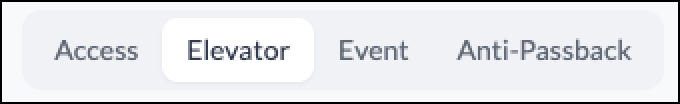

Select Elevator. By default, the Access tab will be selected.

Schedule - Select this dropdown to choose the Schedule Type: Always, Recurring, or Single Date.

Below is an explanation for each Schedule type and how to configure each option.

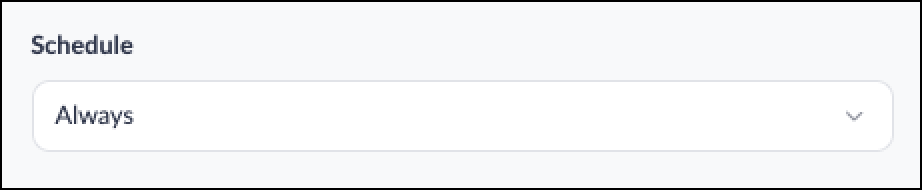

Always - The rule will always be processed.

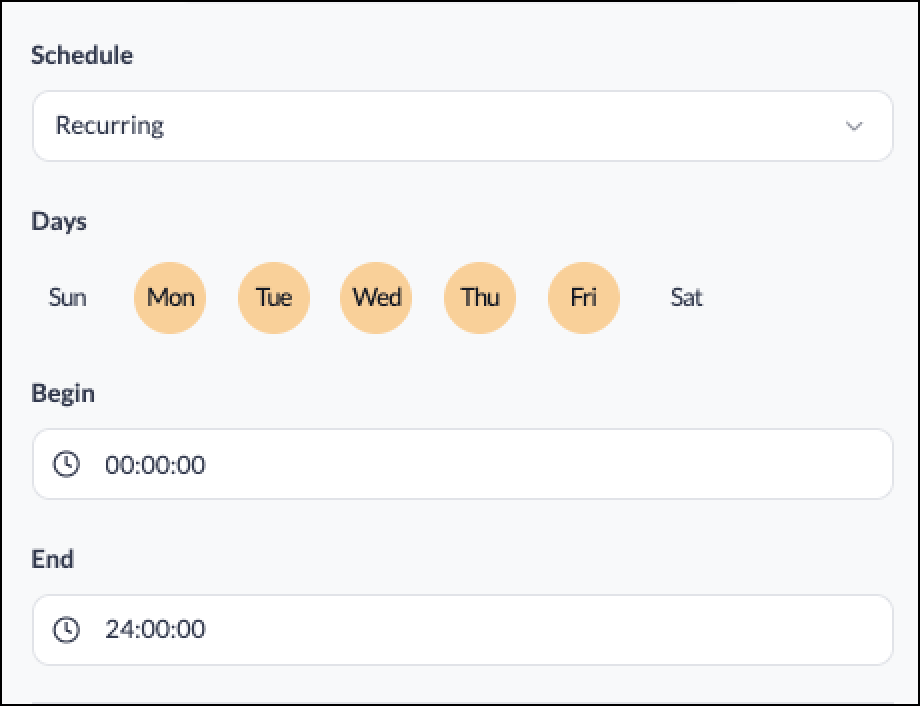

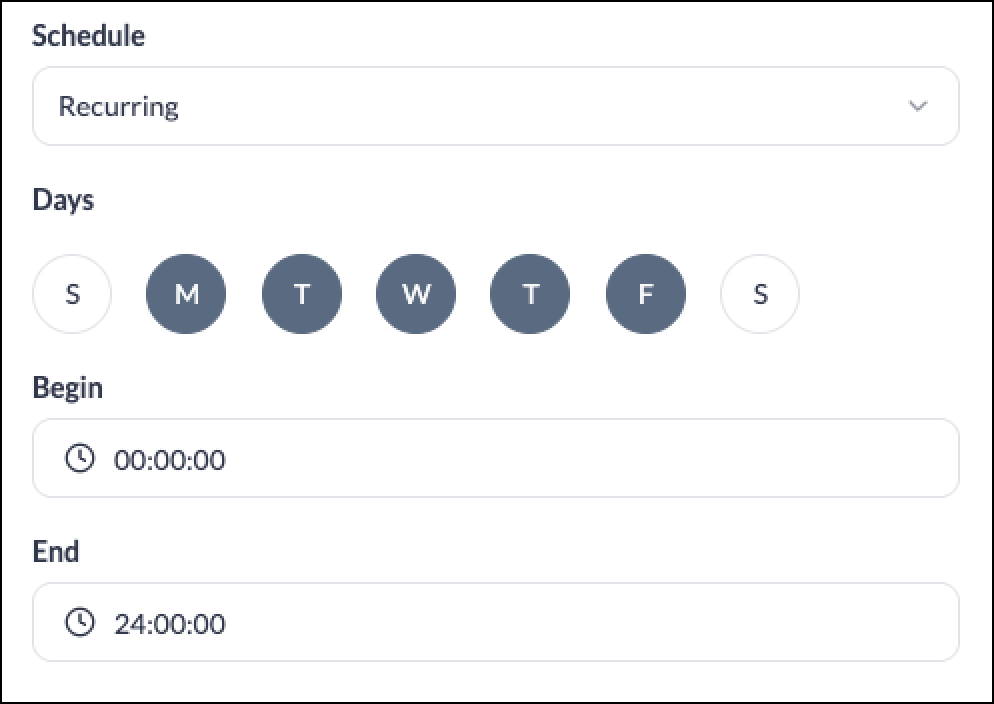

Recurring - The rule will be processed only during the selected time frame each week.

Days - Select the days of the week on which the rule will be processed. By default, Monday-Friday are selected.

Begin - Select the specified time (in 24H format) when the Elevator Rule will begin.

End - Select the specified time (in 24H format) when the Elevator Rule will end.

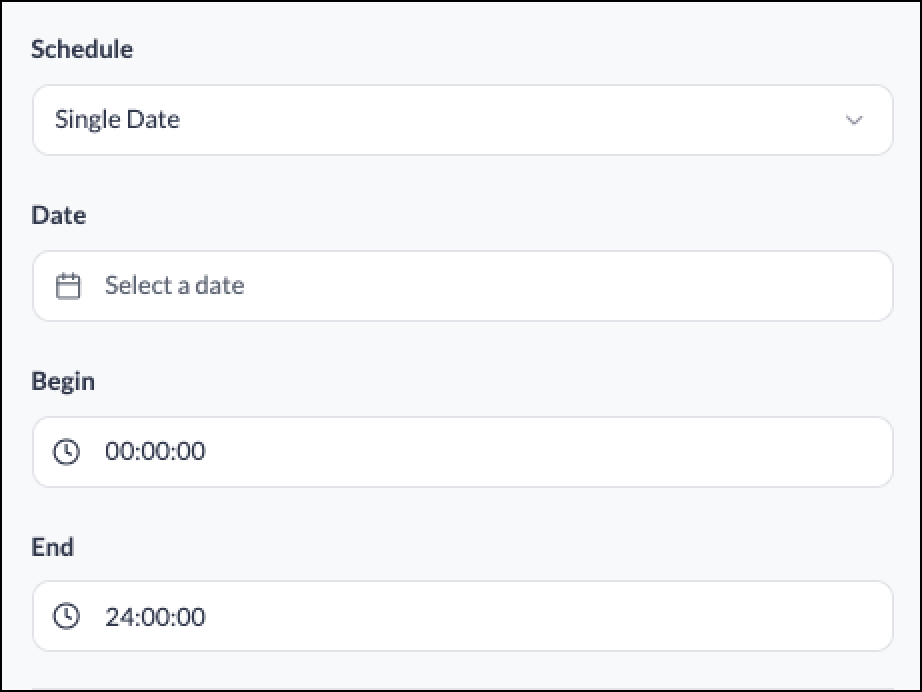

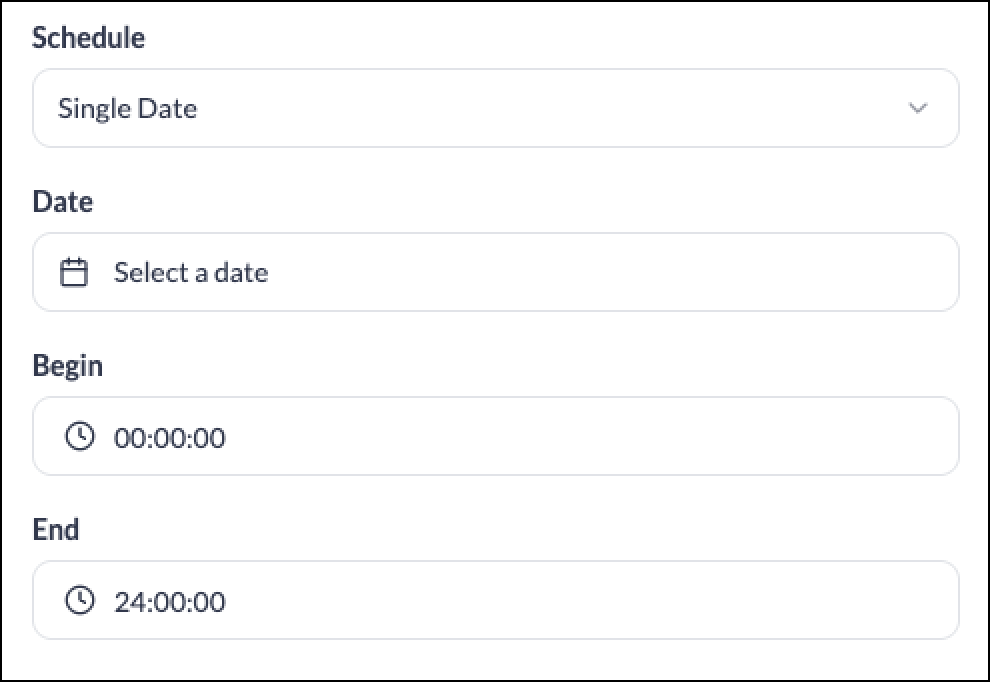

Single Date - The rule will only be processed for the specified timeframe on a single day.

Date - Select the date when the rule will be processed.

Begin - Select the specified time (in 24H format) when the Elevator Rule will begin.

End - Select the specified time (in 24H format) when the Elevator Rule will end.

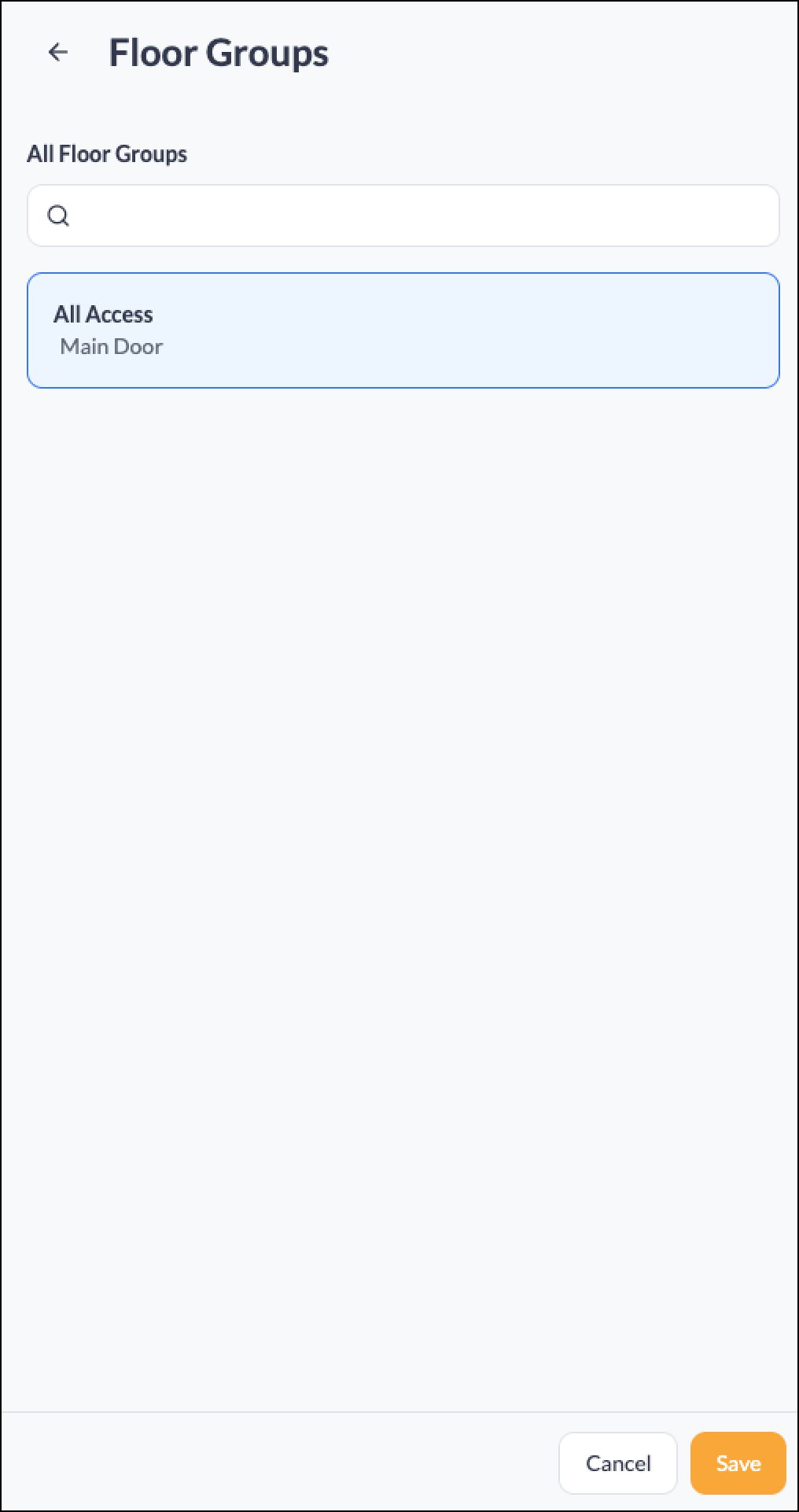

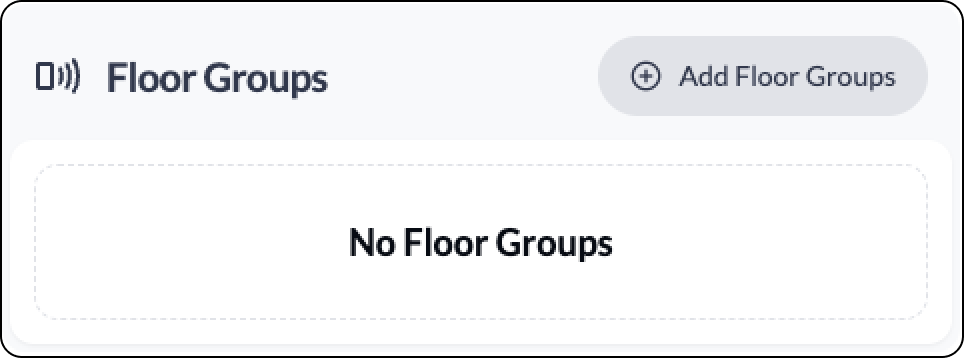

Floor Groups - Select the configured Elevator Floor Group.

At least one Floor Group must be selected to save the Rule.

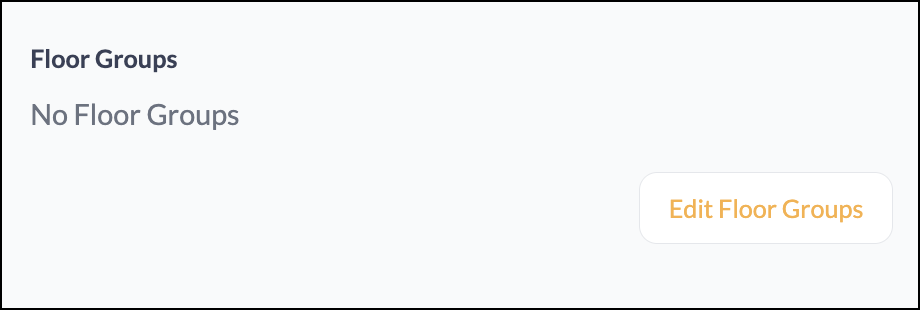

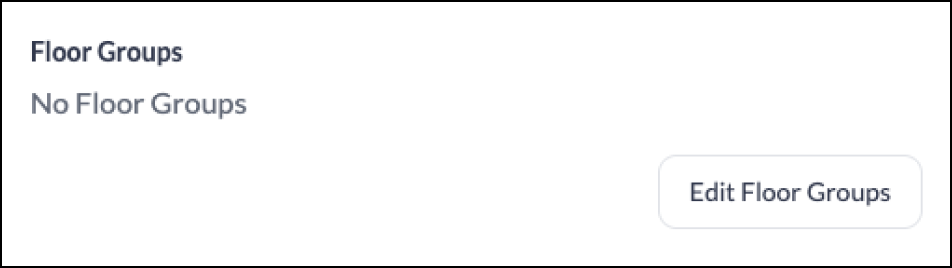

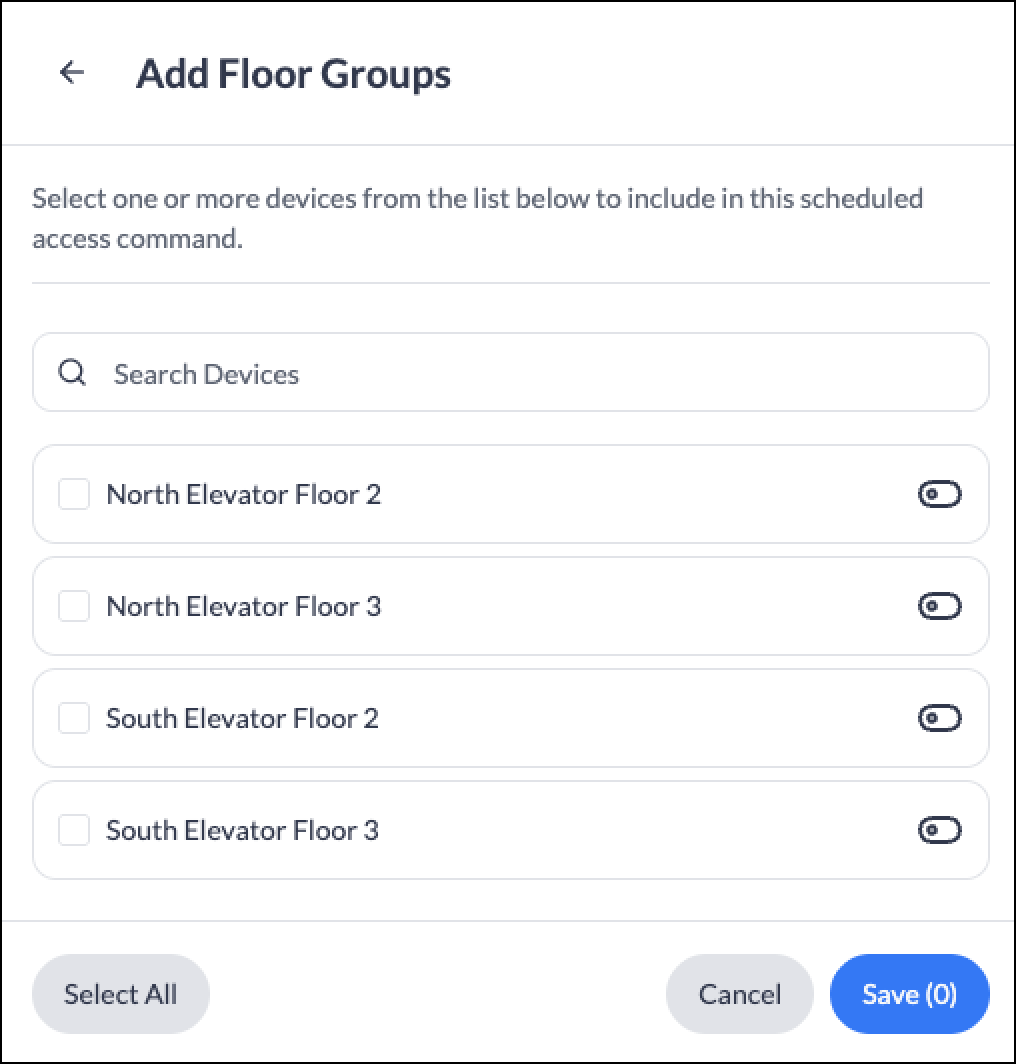

Select Edit Floor Groups to highlight the specified Floor Groups and then Save.

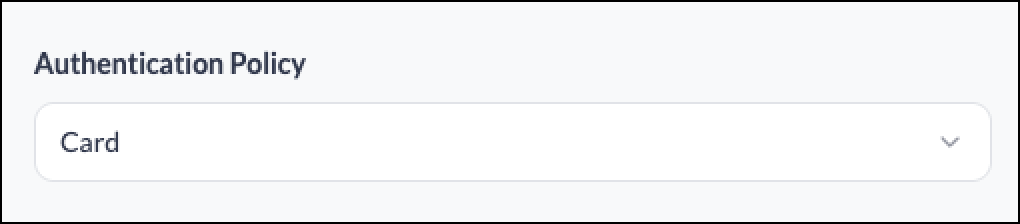

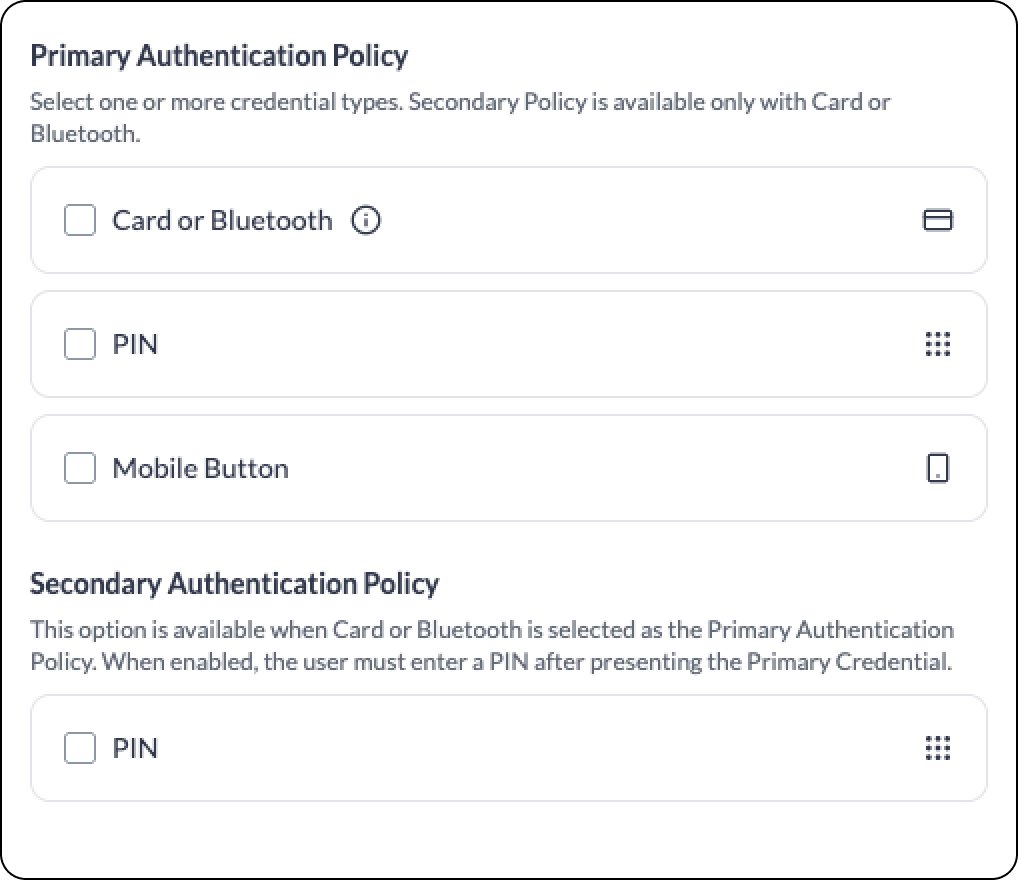

Authentication Policy - The Authentication Policy determines which Credential types are required to gain access.

Primary Authentication Options:

You must select at least one Primary Authentication Policy:

• Card or Bluetooth: Requires a physical card or a Bluetooth credential via the PDK Access App.
• PIN: Requires entering a PIN on a reader keypad.
• Mobile Button: Requires tapping the Door name in the PDK Access App.

Secondary Authentication Policy (Optional):

The Secondary Authentication Policy adds an extra layer of security.

• PIN: If the Primary Authentication Policy is set to Card or Bluetooth, you can require a PIN as a second step. The user must scan their credential and then enter their PIN.

Important Note: If an Authentication Policy is set for the Device in Configuration, it may conflict with the selected Authentication Policy, causing Credentials to function improperly. It is recommended to set this during Access Rule creation.

After configuring the Elevator rule, select Submit to save the rule.
