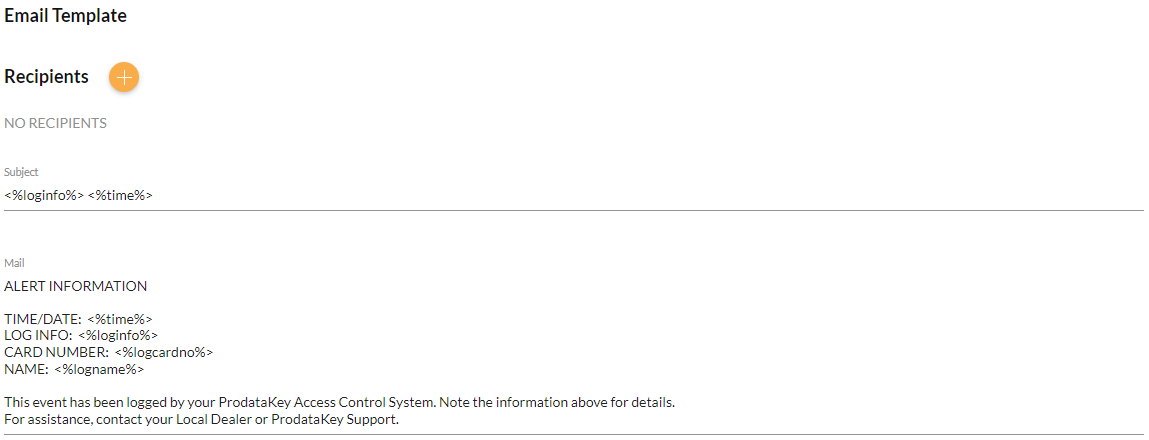

When Send Email is selected in the Action field, the Email Template screen is displayed.
Email Template
Recipients
When using the 'Send Email' action, the action can be configured to send an email to one or more recipients when the rule is processed.
Tapping/clicking on the plus icon next to Recipients will open a dialogue window allowing you to select the Email recipients.
The list of recipients is populated from the list of Permissions added to the customer.
Tap/click the box(s) next to the recipient(s) email address(es) to select who will be notified when the Event rule is processed. If the recipient is not listed, tap/click in the Another Email field and enter the email address.
Tap/click Add to add the selected recipients to this event.
Important Note: You can only add a single recipient that is not listed in the emails from Permissions at a time. If you need to add more than one recipient that is not listed, you will need to Add the first person and then follow the steps above for each Additional Email that needs to be added.
Subject
When setting up an Event email, the Subject of the email can be configured for the Event. If the subject of the email needs to be changed, tap/click the Subject field to edit the subject field. You can enter both text and variable text options in the Subject. To add specific Variable Text Options, after tapping/clicking where you want the variable text to be there will be a floating + icon above the text cursor. Tapping/clicking this + icon will display the list of variable text options. For information regarding variable text options and how to use them, please refer to the 'Variable Text Options' section below.
The default Subject for the email is shown below:
Mail Body

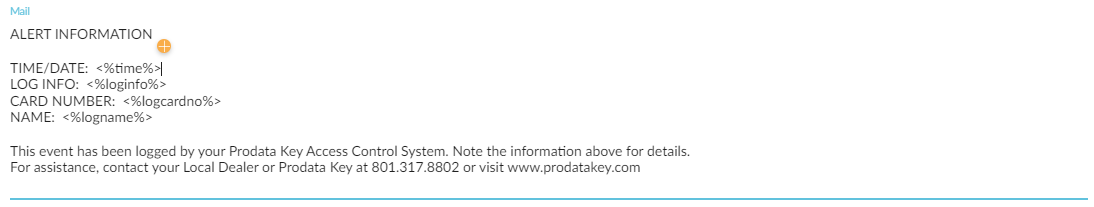

The contents of the email/text message can be changed to what is wanted from the default text. Tap/click inside the Mail field, where 'ALERT INFORMATION' appears in the default template, to edit the contents of the message. Tap/click in the textbox below 'Mail' to edit the message that will be sent when the Event is processed. To add specific Variable Text Options to the Mail body, after tapping/clicking where you want the variable text to be there will be a floating + icon above the text cursor. Tapping/clicking this + icon will display the list of variable text options.
For information regarding these variable text options and how to use them, please refer to the 'Variable Text Options' section below.
By default, the following field template is displayed:
Email Template Variable Text Options
The following variable text options can be used in both the Subject and Mail textboxes. These options allow information specific to the Event to be generated without being specifically stated in the template. This can include timestamps, the door or device where the event occurred, the Person associated with the Event being triggered, and more.
<%time%> - This option will display the date and time when the Event which triggered the email occurred.
<%logdoor%> - This option will display the door/device where the Event occurred.
<%logevent%> - This option will display the logged Event type.
<%logresult%> - This option will display the logged result of the Event.
<%loginfo%> - This option will display the logged Event Description that is shown in Reports.
<%logcardno%> - This option will display the card number associated with triggering the Event.
<%logname%> - This option will display the name of the Person associated with triggering the Event.
<%logiolink%> - This option will display the Connection for the Device where the Event occurred to trigger the Event
