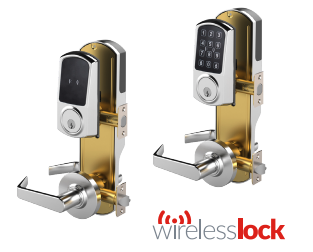

Red Wireless Interconnected Locksets

Red Wireless Interconnected Lock Data Sheet (PDF)

Red Wireless Interconnected Lock

The PDK Red Locksets brings heightened security and convenience to any PDK.io 2.0 system. PDK's Red Locksets allow for the ultimate flexibility in your installs.

These lock styles are available by special order only; please visit lock-builder.pdk.io to build your custom SKU.

Specifications

Door Thickness	1-3/8” to 1-3/4”
Bore Hole Spacing (Center-to-Center)	4" - 5-1/2"
Backset	2-3/8" - 2-3/4"
Credentials	Mobile • Prox • PIN • Mechanical Key
Keyways	Conventional • SFIC
Credential Compatibilities	Prox (Optional) • MIFARE DESFire EV1/EV2/EV3/Light • MIFARE Ultralight EV1/AES • MIFARE Classic
Communication	HubNet (BLE/2.4 GHz)
Wireless Range	up to 100ft line of sight
Batteries Required	4 AA Alkaline Batteries (Last up to 1 year)
Operating Temperatures	-20C to 65C • 0-95% Humidity (Non-Condensing)
Protection Rating	IP65 (Exterior Only)
Certification & Compliances	FCC Part 15 • UL/cUL 10C 20-Minutes • Complies with ADA • BHMA/ANSI Grade 2
Finishes	606 (US4) • 613E • 622 (US19) • 626 (US26D)
Country of Origin	Assembled in USA

Manufacturer's Limited Warranty

One to five-year warranty against defects in materials and workmanship. For full details, visit prodatakey.com/warranty.

For questions about the Red Wireless Lockset, please contact PDK Tech Support.
