Red Wireless Interconnected Lock Door Prep

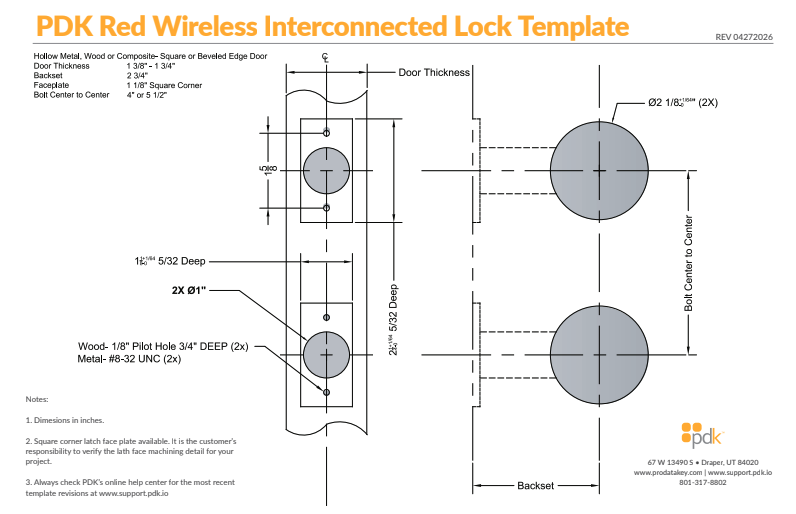

Red Wireless Interconnected Lock Installation Template (PDF)

Door Type: Hollow Metal, Wood, or Composite - Square or Beveled Edge Door

Door Thickness: 1 3/8" - 1 3/4"

Backset: 2 3/4"

Faceplate: 1 1/8" Square Corner

Door Prep:

Bolt Center to Center: 4" or 5 1/2"
