Red Wireless Deadbolt Locksets
Red Wireless Deadbolt Lock Data Sheet (PDF)
Red Wireless Deadbolt Lock
Models
Deadbolt Lock (Satin Chrome): RLDBPKS
Deadbolt Lock (Black): RLDBPKB

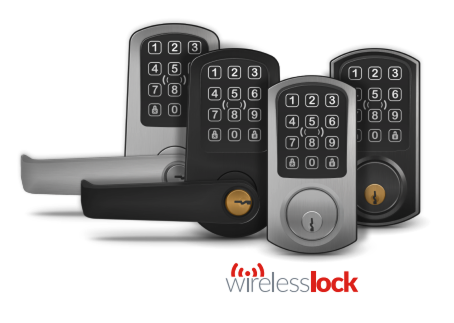

The PDK Red Locksets brings heightened security and convenience to any PDK.io 2.0 system. PDK's Red Locksets come in a cylindrical and a deadbolt variety, allowing for the ultimate flexibility in your installs.
Specifications
| Door Thickness | 1-3/8" to 1-3/4" |
| Backset | 2-3/8" to 2-3/4" (Adjustable) |
| Credentials | Mobile • Prox • PIN • Mechanical Key |
| Keyways | Conventional |
| Credential Compatibilities | MIFARE DESFire EV1/EV2/EV3/Light • MIFARE Ultralight EV1/AES • MIFARE Classic |
| Communication | HubNet (BLE 4.2GHz) |
| Wireless Range | up to 100ft line of sight |
| Batteries Required | 4 AA Alkaline Batteries (Last up to 1 year) |
| Protection Rating | IP65 (Exterior Side) |
| Operating Temperatures | -20C to 65C • 0-95% Humidity (Non-Condensing) |
| Certification & Compliances | FCC Part 15 • UL/cUL 10C 20-Minutes • Complies with ADA • BHMA/ANSI Grade 2 |
| Finishes | 622 (US19) • 626 (US26D) |
| Country of Origin | Assembled in USA |
Manufacturer's Limited Warranty
One to five-year warranty against defects in materials and workmanship. For full details, visit prodatakey.com/warranty.
For questions about the Red Wireless Lockset, please contact PDK Tech Support.
