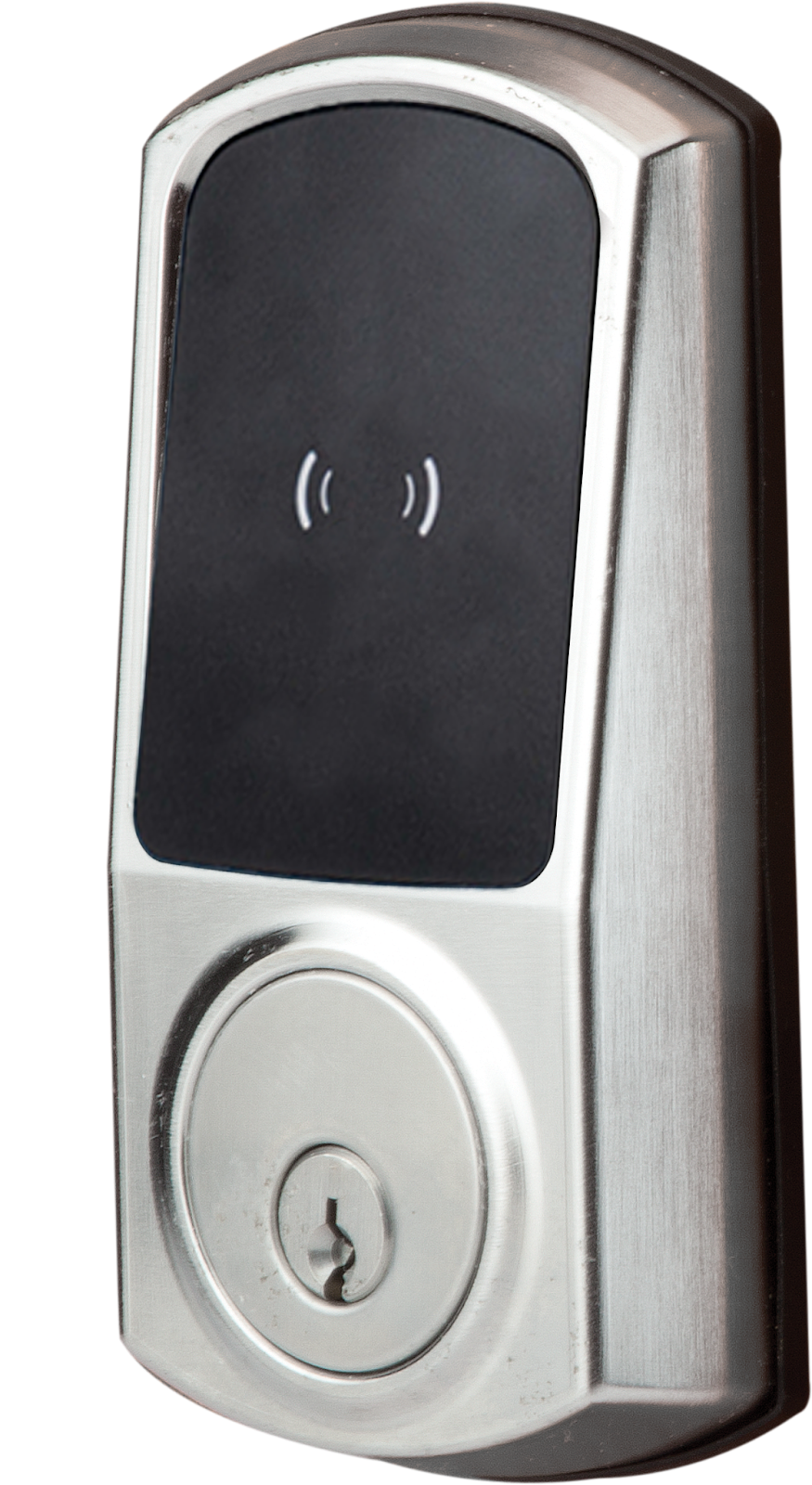

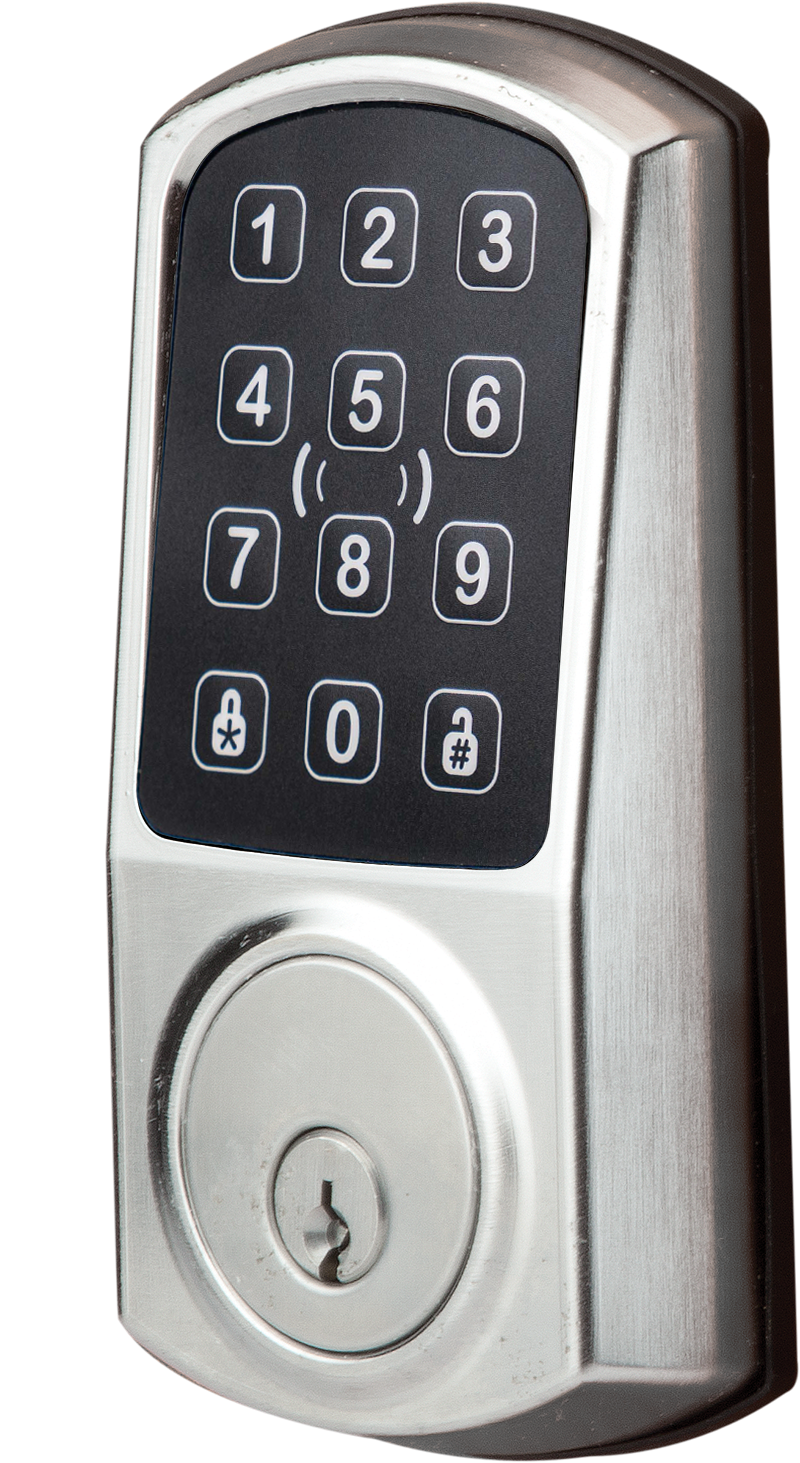

Red Wireless Deadbolt Lock Manual

Rev: 1.0.0

Part Numbers: RLDBPKS, RLDBPKB

Other Lock styles are available by special order; please contact sales@prodatakey.com for details.

Table of Contents

Package Contents   Specifications    Installation     LED Indicators     Compliance Information

Package Contents

• Red Wireless Deadbolt Lock
• Mounting Hardware
• Keys (2)
• Quick Start Guide
• Mounting Template
• AA Batteries (4)

Specifications

Communication       Environmental     Compliance

Communication

• Bluetooth Low Energy (2.4 GHz) (Connection to HubNet)
• End-to-end AES128-bit encryption

NOTE: Always test communication to the HubNet with the door both open and closed to ensure reliable performance.

Environmental

• Temperature: -20°C ~ +65°C / -4°F ~ +148°F
• Humidity: 0%-95% (Non-Condensing)

Compliance

• FCC Part 15
• ADA Compliance
• IP65 Rated
• Conforms to UL 10C
• ANSI/BHMA Grade 2

Installation

This section of the manual provides instructions for installing the ProdataKey Red Deadbolt Wireless Lock. Before you begin the installation, read the instructions thoroughly. Make sure you have read and understood the Safety Information.

IMPORTANT: A ProdataKey Cloud Node and Red Hub are required to operate the Red Wireless Lock.

Pre-Installation Requirements    Installation Instructions

Pre-Installation Requirements

Power

• 4 AA 1.5V Alkaline Batteries

Recommended Tools

• Phillips #1 Screwdriver
• Phillips #2 Screwdriver

Installation Instructions

• Install the Red Wireless Deadbolt Lock

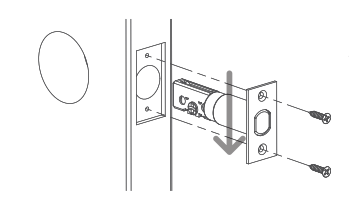

1. Prepare Door & Install Latch

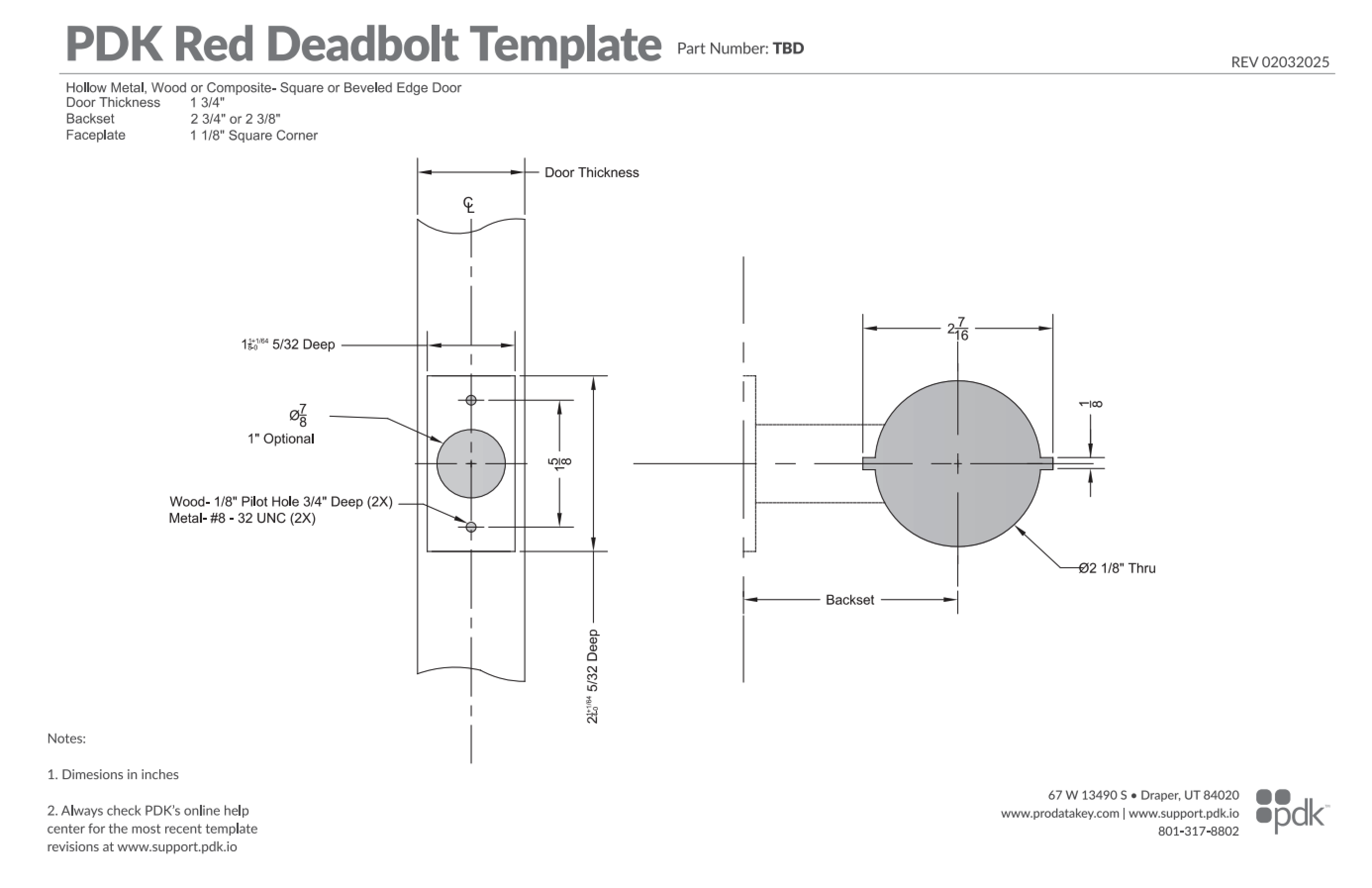

   1. Prepare the door according to the template.
   2. Retract the deadbolt.
   3. Install the adjustable latch with the cross slot for the tailpiece towards the bottom.
   4. Secure with two small combo screws.

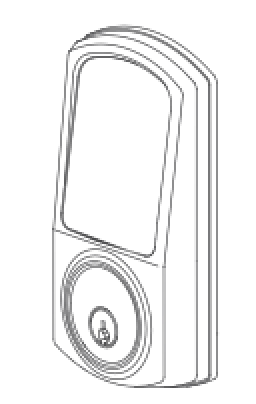

2. Install Outside Trim

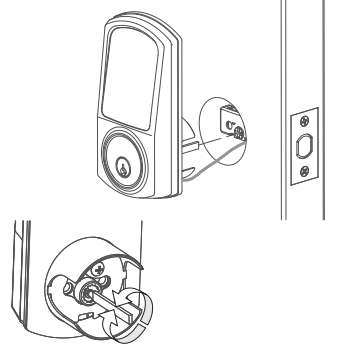

   1. Install the escutcheon/chassis assembly from the outside of the door, feeding the reader wire through the chassis hole in the door, under the latch.

      Left Hand Door: Rotate the tailpiece clockwise until it stops in the vertical orientation.

      Right Hand Door: Rotate the tailpiece counter-clockwise until it stops in the vertical orientation.

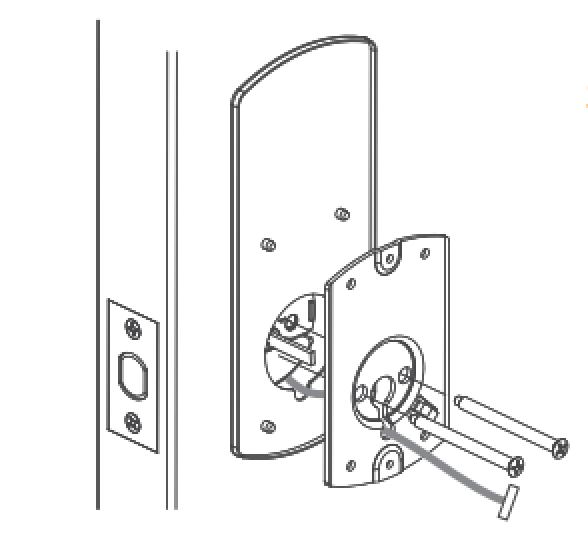

3. Install Gasket & Inside Mounting Plate
   1. Route the wire through the slot in the bottom of the gasket and mounting plate.

   2. Install the rubber gasket and inside mounting plate, and secure with two pan head screws.

      CAUTION: Do not overtighten screws

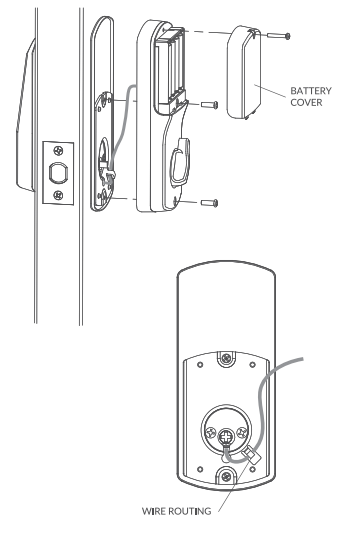

4. Install Inside Trim & Batteries

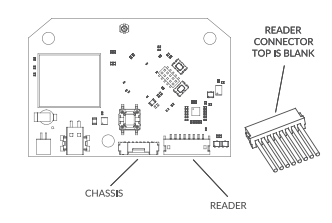

   1. Plug the reader wire into the socket on the control board on the back of the escutcheon.
   2. Route wire through the hook in the mounting plate, and install escutcheon onto the door.
      1. Take care to keep from pinching wire.
   3. Verify that the thumb turn properly operates the deadbolt latch smoothly.
   4. Secure the escutcheon with two pan head screws.

   5. Install batteries and the battery cover with a pan head screw.



5. Calibrate Lock

Before the lock can be used, it must be calibrated. After you put the batteries in the lock, the LED lights will flash red twice every 3 seconds. This indicates that the lock is not yet calibrated. Follow either of these methods to calibrate your lock.

1. Method One:

2.

   1. Fully retract the bolt.

   2. Double tap any physical PDK Red Credential.

      The LED will flash yellow.

   3. Fully extend the bolt.
   4. Fully retract the bolt.
3. Method Two:
   1. Fully retract the bolt.

   2. Input the PIN 387492#

      The LED will flash yellow.

   3. Fully extend the bolt.
   4. Fully retract the bolt.

After successful calibration, the lock will flash a green light and beep twice.

LED Lock Indicators

Compliance Information

Notices   FCC Compliance   Liability    Intellectual Property Rights    Hardware Notices

Trademark Acknowledgements     Regulatory Information    Safety    Disposal and Recycling

Notices

• The ProdataKey Red Wireless Lock is rated for IP65.
• The ProdataKey product shall be installed by a trained professional.
• The ProdataKey product shall be used in compliance with local laws and regulations.
• Install in a dry, well-ventilated, secure environment.
• Use only applicable tools when installing the ProdataKey product. Using excessive force while mounting the product could cause damage.
• Avoid exposing ProdataKey product to shocks or heavy pressure.
• Do not use chemicals, caustic agents, or aerosol cleaners to clean the product. Use a clean cloth dampened with pure water for cleaning the exterior of the enclosure.
• Use only accessories that comply with the technical specification of the product. These can be provided by ProdataKey or a ProdataKey authorized third-party vendor.
• Use only spare parts provided by or recommended by ProdataKey Support or a product reseller.
• Do not attempt to repair the product by yourself. Contact ProdataKey Support or your ProdataKey authorized distributor for service matters.

FCC Compliance

FCC Compliance Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

Product can be used without license conditions or restrictions in all European Union countries, including Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Luxembourg, The Netherlands, Portugal, Spain, Sweden, and the United Kingdom, as well as other non-EU countries, including Iceland, Norway, and Switzerland.

Liability

ProdataKey makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. ProdataKey shall not be liable, nor responsible for incidental or consequential damages in connection with the furnishing, performance, or use of this material. This product is only to be used for its intended purpose.

Every care has been taken in preparing this document. Please feel free to inform ProdataKey Support of any inaccuracies or omissions in this documentation. We welcome your feedback and suggestions. ProdataKey cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and documentation without prior notice.

Intellectual Property Rights

ProdataKey has intellectual property rights relating to technology embodied in the product described in this document.

Hardware Notices

This equipment must be installed and used in strict accordance with the instructions given in the user documentation. This equipment contains no user-serviceable components. Unauthorized equipment changes or modifications will invalidate all applicable regulatory certifications and approvals.

Use only accessories that comply with the technical specification of the product. These can be provided by ProdataKey or an approved third party. Use only spare parts provided by or recommended by ProdataKey.

After the system is installed and working properly, no further maintenance or testing is required.

Do not attempt to repair the product by yourself. Contact ProdataKey Support of your ProdataKey authorized distributor for service matters.

Trademark Acknowledgements

ProdataKey, Prodata Key, prodatakey, PDK, Prodata, are registered trademarks or trademark applications of ProdataKey in various jurisdictions. All other company names and products are trademarks or registered trademarks of their respective companies. Permission to use, copy, modify, and distribute this software and its documentation for any purpose with or without fee is hereby granted, provided that the copyright notice appears in all copies and that both the copyright notice and this permission notice appear in supporting documentation.

Regulatory Information

Electromagnetic Compatibility (EMC)

This equipment has been designed and tested to fulfill applicable standards for

• Radio frequency emissions when installed according to the instructions and used in its intended environment.
• Immunity to electrical and electromagnetic phenomena when installed according to the instructions and used in its intended environment.

Safety

This manual has been prepared to help you install the product. Read through the installation instructions carefully before installing the product. Keep the guide for future installation and maintenance reference.

Disposal and Recycling

When this product has reached the end of its useful life, dispose of it according to local laws and regulations. For information about your nearest designated collection point, contact your local authority responsible for waste disposal. In accordance with local legislation, penalties may be applicable for incorrect disposal of this waste.

PDK Certification and Tutorials

Visit ProdataKey accesscontrol101.com for certification training and tutorials.

Manufacture’s Limited Warranty

One to five-year warranty against defects in materials and workmanship. Full details at prodatakey.com/warranty

Support / Sales

Technical Support:

• Phone: 801.317.8802 option #2
• Email: support@prodatakey.com

Sales:

• Phone: 801.317.8802 option #1
• Email: sales@prodatakey.com

Copyright

© 2026 ProdataKey, LLC. All rights reserved. ProdataKey, the ProdataKey logo, the Red logo and other ProdataKey marks are owned by ProdataKey, LLC and may be registered. All other trademarks are the property of their owners. ProdataKey assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice.

Red Wireless Deadbolt Lock Instruction Manual

Ver. 1.0.0

Date: February 2026
