Red Wireless Deadbolt Lock Door Prep

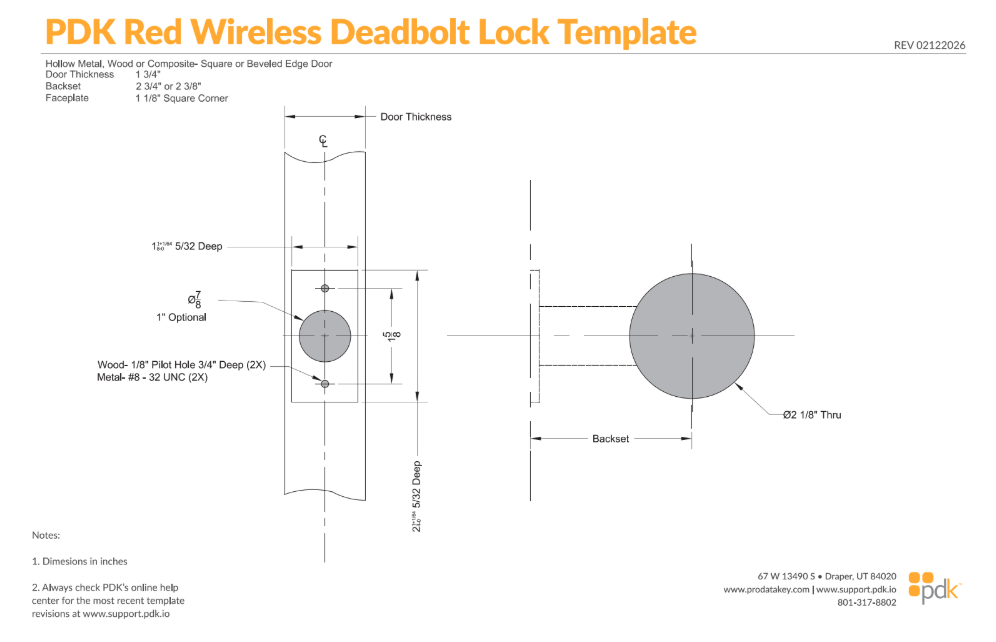

Red Wireless Deadbolt Lock Installation Template (PDF)

Door Type: Hollow Metal, Wood, or Composite - Square or Beveled Edge Door

Door Thickness: 1 3/4"

Backset: 2 3/4" - 2 3/8" (adjustable)

Faceplate: 1 1/8" Square Corner

Door Prep: Standard 161

Bore Hole: 2 1/8"
