Keypad RFID Card Reader Manual

  • Updated


PN: RDRKP

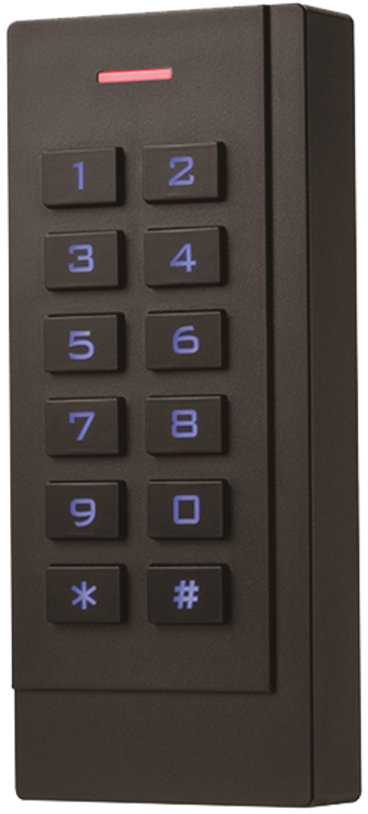

Features

  • Very low power consumption. Standby current is less than 80mA
  • Backlit keys
  • Wiegand output.
  • Standard 26-bit card format.
  • Built-in buzzer

Package Contents

  • RFID Reader (1)
  • User Manual (1)
  • Screwdriver (1)
  • Rubber plugs (2)
  • Self-tapping screws (2)

Specifications

Operating Voltage 9 to 16 VDC
Card Type HID
Reading Distance 1-2.25 in. (3-6 cm)
Communication Distance 328 ft. (100 meters)
Idle Current <80mA
Operating Temperature -49ᐤ F ~ 140ᐤ F (-45ᐤ C ~ 60ᐤ C)
Operating Humidity 10% - 90% Rel. Hum.
Waterproof Conforms to IP68* rating
Dimensions 4.7 x 3.1 x 1.0 in. (120 x 80 x 25 cm)

* Can withstand dust, dirt, and sand, and is resistant to submersion up to a maximum depth of 5 feet (1.5 meters) underwater for up to thirty minutes.

Installation

NOTE: Please read the installation instructions carefully before using the keypad card reader device.

  1. Pry the back cover from the keypad reader using the supplied screwdriver.

  2. Use the back cover to mark the position of the two holes on the surface to be attached.

  3. Drill two holes in the wall for the self-tapping screws and a hole for the reader's cable wires.

  4. Insert the supplied rubber plugs into the two screw holes.

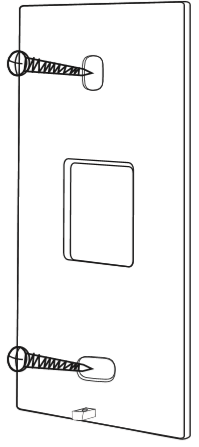

  5. Affix the back cover firmly on the wall with the two self-tapping screws.

  6. Thread the cable through the cable hole.

  7. Connect the needed reader's wires. (Wrap any unused wire with electrical tape.)

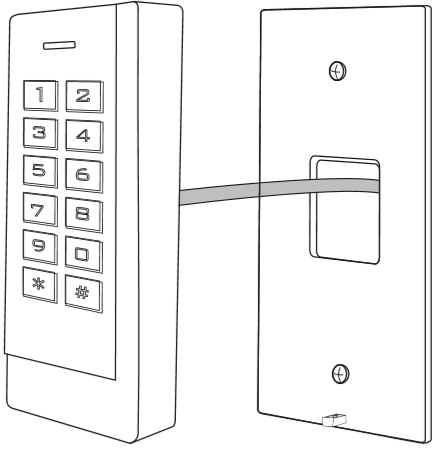

  8. Re-attach the keypad to the back cover.



Wiring

Wire Color Function Description
1 Blue LED  Controller LED
2 Yellow Beeper  Controller beeper
3 Green D0  Output line D0
4 White D1  Output line D1
5 Red (+)12 Volts  Power supply +12 Volts (9 to 16 VDC)
6 Black (-) Ground  Power supply -12 Volts (9 to 16 VDC)



Virtual Card Number

  • The reader will transmit PIN data when it receives the last keypress (#) after the PIN code is entered.
  • Format: Decimal card number with 6 digits.
  • PIN code: (4th to 6th digits).
  • The Facility code is any digits between 0 and 15. PIN code is 4 to 6 digits.

Examples:

If the PIN code is 9999

  • Press 9999#, then the output format will be 009999

If the PIN code is 999999

  • Press 999999#, then the output format will be 999999
