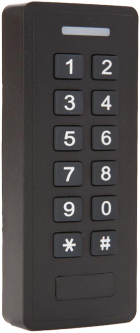

Keypad Reader PN: RDRKP

Prox & PIN Keypad Reader

The Keypad reader is perfect for indoor/outdoor applications and offers users the flexibility of using everyday proximity credentials or PIN numbers to gain access to secure areas. Add an extra layer of security with two-factor authentication, requiring users to present proximity credentials and enter a PIN number to gain access.

NOTE: If the Keypad Reader is sending Wiegand data instead of PIN data, it's an old reader (3 or more years old) and can't be switched. In addition, some older versions of the RDRKP are in Card mode and are not programmable.

Reader Installation Overview

Specifications

Input

• Frequency: 125 kHz

Output

• 26-bit Wiegand protocol

Environmental

• Temperature: -31° ~ +140° F or -35° ~ +60° C
• Humidity: 0 - 95% relative humidity non-condensing

Enclosures

• Dimensions: (W x H x D) 1.9” x 4.8” x .875”
• Weight: 0.33 lbs / 5.3 oz / 150 g
• Plastic Enclosure

Power

• 9 - 18 VDC

Manufacturer’s Limited Warranty

For full details on our one- to three-year warranty against defects in materials and workmanship, visit prodatakey.com. Visit ProdataKey Support to access installation and support resources.
