Keypad Reader - PN: RDRKP
Safety, Maintenance, & Operational Information
Additional Listed System Components
The Keypad Reader is perfect for indoor/outdoor applications and offers users the flexibility of using everyday proximity credentials or PIN numbers to gain access to secure areas. Add an extra layer of security with two-factor authentication, requiring users to present proximity credentials and enter a PIN number to gain access.
The Keypad Reader is a Wiegand output keypad with an integrated proximity reader. The keypad is backlit with a built-in Light Dependent Resistor* (LDR) sensor for anti-tamper security. Because it’s waterproof, it can be mounted either inside or outside in harsh environments.
*Light dependent resistors are frequently used as light sensors and are mainly used when there is a need to sense the absence and presence of light such as burglar alarm circuits, alarm clock, light intensity meters, etc.
Reader Installation Overview
Keypad Reader Features
- RFID Proximity 26- to 37-bit Wiegand-based 125 kHz pass-through of bit length
- Output converts to Wiegand formats
- Voltage: 9 to 18VDC at the reader (12VDC recommended)
- Electronics potted and sealed with tamper-resistant epoxy for indoor and outdoor installation
- IP66* moisture and dust protection
- FCC, RoHS, and UL Standard 294 compliant
- 5 kHz audio buzzer
Keypad Reader Specifications
This manual walks an installer through the steps needed to connect the Keypad Reader to an access control panel. The Keypad Reader supports 125 kHz prox cards. Reviewing and following the information below ensures the reader is installed quickly and properly.
| Card Type | EM and HID® compatible |
| Transmit Frequency | 125kHz |
| Read Range | 1.5 to 3 inches (4 to 8 cm) |
| Wiegand Output | Wiegand 26-bit (factory default) |
| Power Supply | DC 9-18VDC - 12VDC linear power supply recommended |
| Current | </= 35mA |
| Operating Humidity | 0% to 95% relative humidity non-condensing |
| Operating Temperature | -31° to ~140° F (-35° to ~60° C) |
| Dimensions (HxWxD) | 4.8 x 1.9 x .875 inches / 122 x 50 x 21 mm |
| Weight | 0.33 lb. / 5.3 oz. / 150 g. |
| Audio | 5 kHz buzzer |
| IP Rating* | IP66 |
| Certificates | CE, RoHS, FCC |
| Cable Distance | Wiegand ISO (500 ft.) (24 AWG) |
* The IP Code classifies and rates the degree of protection provided by mechanical casings and electrical enclosures against intrusion, dust, accidental contact, and water. The first number is for solids protection such as dust; it ranges from 0 to 6. The second number is for the part's protection against liquids; it ranges from 0 to 8.
Wiegand Format
The standard 26-bit Wiegand format is an open format; it is a widely-used industry standard. Almost all access control systems accept the standard 26-bit format which consists of 2 parity bits, 8-bit facility code, and 16-bit card number fields. The Wiegand interface is commonly used to connect a card swipe mechanism to the rest of an access control system. The physical size limitations of the card dictated that a maximum of 37 Wiegand wire filaments could be placed in a standard card before misreads would affect reliability; therefore, most Wiegand formats used in physical access control are less than 37 bits in length.
NOTE: If the Keypad Reader is sending Wiegand data instead of PIN data, it's an old reader (3 or more years old) and can't be switched.
Reader Wiring Output
Follow all wiring and safety precautions to connect the Keypad Reader to your access control panel (single io or eight io). Mount the door controller with 22/6 wire. This reader supports formats using 26- to 37-bit 125 kHz credentials and outputs the card data through a standard Wiegand interface.
NOTE: For UL certified wire installations, all wire running from a door controller to a lock, strike, or reader device must be less than 98.5 feet (30 meters).
Keypad Reader Wire Conductors
| Reader Wire Conductor | Single io Function | Eight io Function |
| Red - Power to + (positive) connector | DC Power +12VDC | DC Power +12VDC |
| Black - Power to - (negative) connector | Ground (-) | Ground (-) |
| Green - To D0 (data zero) connector | Data 0 (zero) | Data 0 (zero) |
| White - To D1 (data 1) connector | Data 1 | Data 1 |
| Brown - To LED connector | Green LED | Green LED |
| Yellow - Buzzer connector | Buzzer (O) | Buzzer (-) |
NOTE: If the reader will not read cards and fobs, ensure that the cards and fobs are HID™ 26- to 37-bit 125kHz RFID compatible.
Additional Listed System Components
| Cloud Node |
|
| Single io |
|
| Eight io |
|
| Proximity Reader | Must be UL 294 listed |
| Proximity Credentials | Must be UL 294 listed |
| Electronic Locking Hardware | Must be UL 294 listed |
NOTE: For information about other products and services, see https://www.prodatakey.com > Products
Installation
This Installation Manual provides instructions for installing the ProdataKey Keypad Reader.
IMPORTANT: A ProdataKey Cloud Node is required to operate the Keypad Reader.
Package Contents
- Keypad Reader (1)
- Mounting screws (2)
Recommended Tools
- Drill and the appropriate size drill bit
- Wall anchors (2) if mounting to drywall
- Electrical tape
- Pencil (to mark hole positions on the mounting surface)
- Low-voltage white B wire splice connectors (If wires will be outside/exposed to the elements, use blue gel-filled B wire splice connectors.)
- Wire stripper/crimper
Before you begin the installation, read the instructions thoroughly. Make sure you have read and understand the Safety Information.
WARNING: Disconnect power before working with the ProdataKey product. DO NOT mount the product while power is applied. Always apply power at the end of the installation after verifying wiring connections are correct; incorrect wiring could cause damage to the product.
Step 1 - Remove the screw from the bottom of the reader to remove the reader’s backplate.

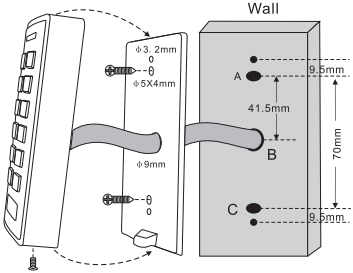

Step 2 - Use the backplate’s mounting and cable holes to mark the hole positions on the wall. Drill two holes to support the mounting screws (and wall anchors, if mounting on drywall).
  |
Drill a larger hole into the wall between the two small holes large enough to pass the reader and controller wires through. Once the wires are paired, crimped, and wrapped in electrical tape, they need room to be pushed back and concealed inside the wall prior to mounting the reader. Feed the wires from the door controller through the wall hole in preparation for pairing with the six Keypad Reader wires. |
IMPORTANT: Before pairing the wires, ensure the power source (including the backup battery) is NOT energized until all wires are properly connected.
NOTE: A backup battery is HIGHLY recommended to prevent system failure in the event of an AC power loss.
Make sure the ends are stripped and prepped for installation. Strip the ends of the wires and pair the Keypad Reader wires with the corresponding controller wires by inserting the exposed ends of each wire pair (one of each door controller and Keypad Reader) into each end of a B connector wire splice; crimp the wires tightly. Repeat this for each set of paired wires, ensuring that both wires are securely crimped inside a B connector.
NOTE: The brown and yellow wires are optional connections.
| Keypad Reader Wire Conductor | Function (Single io) | Function (Eight io) |
| Red - Power to + (positive) connector | DC Power +12VDC | DC Power +12VDC |
| Black - Power to - (negative) connector | Ground (-) | Ground (-) |
| Green - To D0 (data zero) connector | Data 0 (zero) | Data 0 (zero) |
| White - To D1 (data 1) connector | Data 1 | Data 1 |
| Brown - To LED connector | Green LED | Green LED |
| Yellow - Buzzer connector | Buzzer (O) | Buzzer (-) |
NOTE: There may be some degree of pulling and pushing on the wires during the reader install process (especially while concealing the paired wires inside the wall). It is recommended that each B connector be crimped three times to ensure the wire pairs are held securely in the wire splice and will not disconnect. After all wires are paired and crimped, wrap the wire bundle securely with electrical tape around the B connector splices so they remain together and for ease when pulling/pushing the bundle through the wall. Conceal the wire bundle inside the wall in preparation for and prior to mounting the Keypad Reader.
After all wires are connected and concealed inside the wall, align the plate’s holes to the holes in the wall surface and mount the plate with the two provided screws so it is securely fastened to the wall.
Step 3 - With the Keypad Reader backplate securely mounted to the wall surface, mount the main reader unit by angling the reader into the corresponding tab at the bottom of the mounting plate.
Secure the reader to the backplate by replacing and tightening the previously removed screw into the bottom mounting tab hole.
IMPORTANT: A ProdataKey Cloud Node is required to operate the Keypad Reader.
If you have any questions or need help with installation or with any of the hardware described in this manual, please feel free to contact the ProdataKey Technical Support staff.
Operation
NOTE: If the Keypad Reader is sending Wiegand data instead of PIN data, this indicates that it is an older reader (from 2017 and older) and it can't be switched. The data is Wiegand if a PIN number is entered under Live Events or in Reports and it shows that a card number has been entered, just like a rugged reader in virtual card mode. PIN data is sent as a 4-bit per keypress burst (rugged readers allow 8-bit burst also), whereas Wiegand data is sent as a 26-bit string of data.
NOTE: Using a leading zero at the start of a PIN will drop that 0 digit when it is used in PDK. A PIN with a leading zero shouldn't be used. As an example, if a PIN of 0123 is created and entered into the reader, the system will see it as 123. Zero is a non-significant digit and is dropped at the start of a number. The system will not recognize a PIN number with a leading zero as a valid PIN and will not allow it.
- When swiping credentials, the LED turns green and the piezo buzzer sounds. Afterward, the LED returns to red.
- When the LED wire (brown) is pulled to ground, the LED turns green.
- When the Piezo buzzer wire (yellow) is pulled to ground, the piezo sounds. The piezo has a timeout of 30 seconds.
- The green wire is for Wiegand data 0, and white wire is for data 1.
NOTE: For UL certified wire installations, all wire running from a door controller to a lock, strike, or reader device must be less than 98.5 feet (30 meters).
NOTE: If the reader doesn't beep/react when presenting a card format, it's not compatible with the reader. In addition, some older versions of the RDRKP are in Card mode and are not programmable.
Technical Support
Should you require any technical assistance, please contact our knowledgeable ProdataKey Support staff. Your support queries covering hardware, software installation, trouble tickets, troubleshooting, return merchandise authorization (RMA), or any other questions will be addressed as immediately as possible.
NOTE: In order to receive an RMA from pdk, we must first troubleshoot the device prior to the user receiving an RMA number and the device being returned to the user.
-
Phone: 801.317.8802 option #2 or direct at: 801.206.4086
-
Email: support@prodatakey.com
-
Direct Dealer Support Line: 801.206.4086
ProdataKey, LLC - 67 West 13490 South, Draper, Utah 84020 United States
Certifications
FCC Compliance Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.
Product can be used without license conditions or restrictions in all European Union countries, including Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Luxembourg, The Netherlands, Portugal, Spain, Sweden, and the United Kingdom, as well as other non-EU countries, including Iceland, Norway, and Switzerland.
Copyright
© 2019 Prodata Key, LLC. All rights reserved. ProdataKey, the ProdataKey logo, and other ProdataKey marks are owned by ProdataKey, LLC and may be registered. All other trademarks are the property of their respective owners. ProdataKey assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice.
Keypad Reader Instruction Manual
ProdataKey Readers
© 2019 Prodatabe Key, LLC.
Ver. 20191111
Date: November 11, 2019
Doc No. RDRKP-IM-001
Should you require any technical assistance, please contact our knowledgeable ProdataKey Support staff. Your support queries covering hardware, software installation, trouble tickets, troubleshooting, return merchandise authorization (RMA), or any other questions are addressed as immediately as possible.
Safety, Maintenance, & Operational Information
Requirements
This information is intended for trained and authorized installers of ProdataKey access control products. Versions of this article will be updated to the ProdataKey knowledgebase as necessary.
In this manual, ProdataKey and its door controllers are referred to as the PDK products, single io, eight io, product, network door controller, device, device controller, and Cloud Node.
Liability
Every care has been taken in the preparation of this document. Please feel free to inform ProdataKey Support of any inaccuracies or omissions in this documentation. We welcome your feedback and suggestions. ProdataKey cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and documentation without prior notice.
ProdataKey makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. ProdataKey shall not be liable nor responsible for incidental or consequential damages in connection with the furnishing, performance, or use of this material. This product is only to be used for its intended purpose.
Intellectual Property Rights
Patents Pending - ProdataKey has intellectual property rights relating to technology embodied in the product described in this document.
Equipment
This equipment must be installed and used in strict accordance with the instructions given in the user documentation. This equipment contains no user-serviceable components. Wiring methods shall be in accordance with the National Electrical Code, ANSI/NFPA 70. Unauthorized equipment changes or modifications will invalidate all applicable regulatory certifications and approvals.
Use only accessories that comply with the technical specification of the product. These can be provided by ProdataKey or an approved third party. Use only spare parts provided by or recommended by ProdataKey.
After the system is installed and working properly, no further maintenance or testing is required.
Do not attempt to repair the product by yourself. Contact ProdataKey Support or your ProdataKey authorized distributor for service matters.
Trademark Acknowledgments
ProdataKey, Prodata Key, prodatakey, PDK, Prodata, are registered trademarks or trademark applications of ProdataKey in various jurisdictions. All other company names and products are trademarks or registered trademarks of their respective companies. Permission to use, copy, modify, and distribute this software and its documentation for any purpose with or without fee is hereby granted, provided that the copyright notice appears in all copies and that both the copyright notice and this permission notice appear in supporting documentation.
Regulatory Information
Electromagnetic Compatibility (EMC)
This equipment has been designed and tested to fulfill applicable standards for:
- Radio frequency emissions when installed according to the instructions and used in its intended environment.
- Immunity to electrical and electromagnetic phenomena when installed according to the instructions and used in its intended environment.
Safety
This manual has been prepared to help you install the product. Read through the installation instructions carefully before installing the product. Keep the guide for future installation and maintenance reference.
This product complies with IEC/EN/UL 60950-1, Safety of Information Technology Equipment. If your connecting cables are routed outdoors, the product shall be grounded either through a shielded network cable (shielded twisted pair) or another appropriate method.
The power supply used with this product shall fulfill the requirements for Safety Extra Low Voltage (SELV) and Limited Power Source (LPS) according to IEC/ EN/UL 60950-1.
Disposal and Recycling
When this product has reached the end of its useful life, dispose of it according to local laws and regulations. For information about your nearest designated collection point, contact your local authority responsible for waste disposal. In accordance with local legislation, penalties may be applicable for incorrect disposal of this waste.
Supported Readers
Door controllers accept standard 26-bit Wiegand data input from approved readers.
See the available product data sheets at https://www.prodatakey.com/documentation
Support / Sales
Support:
- Phone: 801.317.8802 option #2 or call direct at: 801.206.4086
- Email: support@prodatakey.com
- Direct Dealer Support Line: 801.206.4086
Sales:
- Phone: 801.317.8802 option #1
- Email: sales@prodatakey.com
Learn More
Visit ProdataKey learning center https://www.prodatakey.com/training-schedule for certification trainings and events, webinars, and tutorials.
Notice
- The ProdataKey Single io and Eight io door controllers are intended for indoor use only.
- The ProdataKey product shall be installed by a trained professional.
- The ProdataKey product shall be used in compliance with local laws and regulations.
- The ProdataKey product shall be installed within a secured area.
- Mount in a dry and well-ventilated environment.
- To provide the best conditions and proper operation of the product, the controller must be securely mounted in accordance with the installation instructions.
- Do not install the door controller box on unstable brackets, surfaces, or walls.
- Use only applicable tools when installing the ProdataKey product. Using excessive force while mounting the product could cause damage.
- Avoid exposing ProdataKey product to shocks or heavy pressure.
- Do not use chemicals, caustic agents, or aerosol cleaners to clean the product. Use a clean cloth dampened with pure water for cleaning the exterior of the enclosure.
- Use only accessories that comply with the technical specification of the product. These can be provided by ProdataKey or a ProdataKey authorized third-party vendor.
- Use only spare parts provided by or recommended by ProdataKey Support or a product reseller.
- Do not attempt to repair the product by yourself. Contact ProdataKey Support or your ProdataKey authorized distributor for service matters.
- Use a can lock to ensure secure enclosures and prevent tampering.
- Protect the power cord, Ethernet cable, and transformer wires from being walked on or pinched, particularly where the wiring exits the box.
- For UL certified wire installations, all wire running from a door controller to a lock, strike, or reader device must be less than 98.5 feet (30 meters).
