REX Sensor Data Sheet (PDF)

Universal Request-To-Exit Passive Infrared Sensor

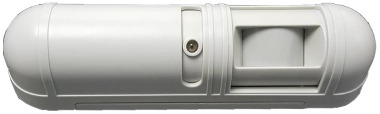

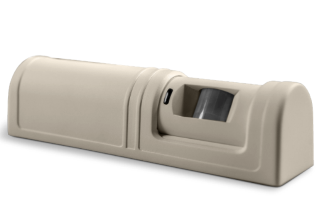

The REX sensor is specifically designed for indoor Request-To-Exit applications and features a passive infrared sensor with qualified motion analysis. The sensitivity of the REX sensor can be easily adjusted for long- or short-range applications and features an adjustable time delay. Because of its sleek design, the REX sensor is easily mounted to any frame, header wall, or ceiling.

Model

REX Sensor PN: REXM

Specifications

Relay

• Output: 2C Contact(N.C/N.O), 24VDC 1A maximum
• Hold (delay) Time: 0.5 to 64 seconds

Detection Type

• Passive infrared

Coverage

• 12 x 5 ft. range at 7 ft. height
• 30 x 12 ft. range at 15 ft. height (adjustment)

Environmental

• Humidity: 0 - 95% relative humidity non-condensing

Enclosures

• Dimensions: (W x H x D) 6.53” x 1.57” x 1.53”
• Weight: 0.4 lbs / 6.4 oz / 182 g
• Plastic Enclosure

Power

• 12-24VDC or VAC

Manufacturer’s Limited Warranty

One to three-year warranty against defects in materials and workmanship. For full details visit prodatakey.com to access marketing and support resources. For questions about the REX Sensor, refer to the REX Sensor article or contact Technical Support.
