Red 2 Expander Manual

Rev: 1.0.0

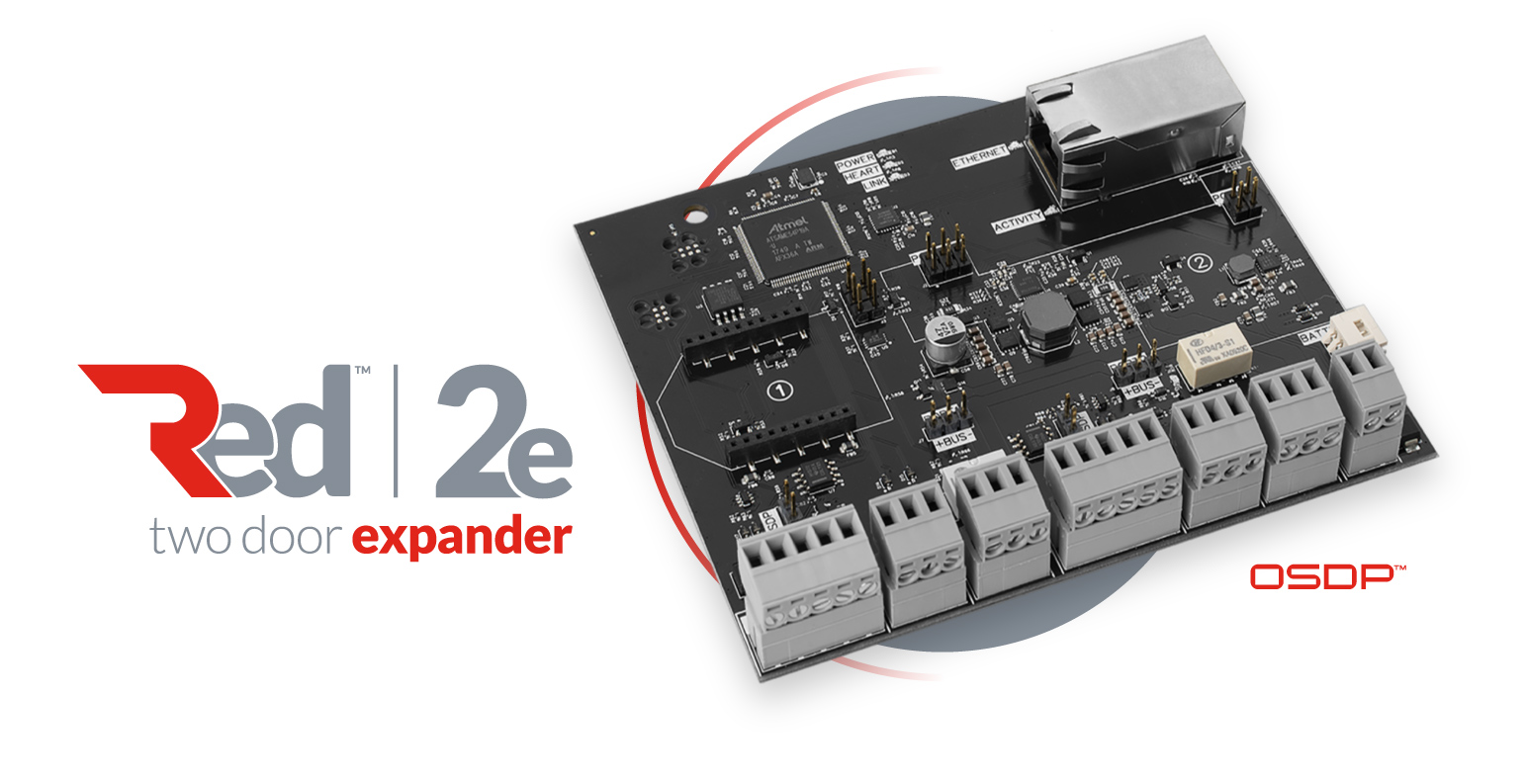

Two Door Expander - Part Number: R2E



Table of Contents

Installation

Safety



Installation

This manual provides instructions for installing the ProdataKey Red 2 Expander. Before you begin the installation, read the instructions thoroughly. Make sure you have read and understood the Safety Information.

WARNING: Disconnect power before working with the ProdataKey product. DO NOT mount the product while power is applied. Always apply power at the end of the installation after verifying wiring connections are correct; incorrect wiring could cause damage to the product.

IMPORTANT: A ProdataKey Cloud Node is required to operate the Red Max and Red 2 Expander.

IMPORTANT NOTICES:

1: For UL294 installation compliance, the Red 2 Expander must be installed in a secured location.

2: Unless the HV Converter (HVC) hardware is used, do not connect the power supply Transformer to a receptacle controlled by a switch.

3: The wiring  shall be in accordance with the National Electrical Code, ANSI/NFPA 70.

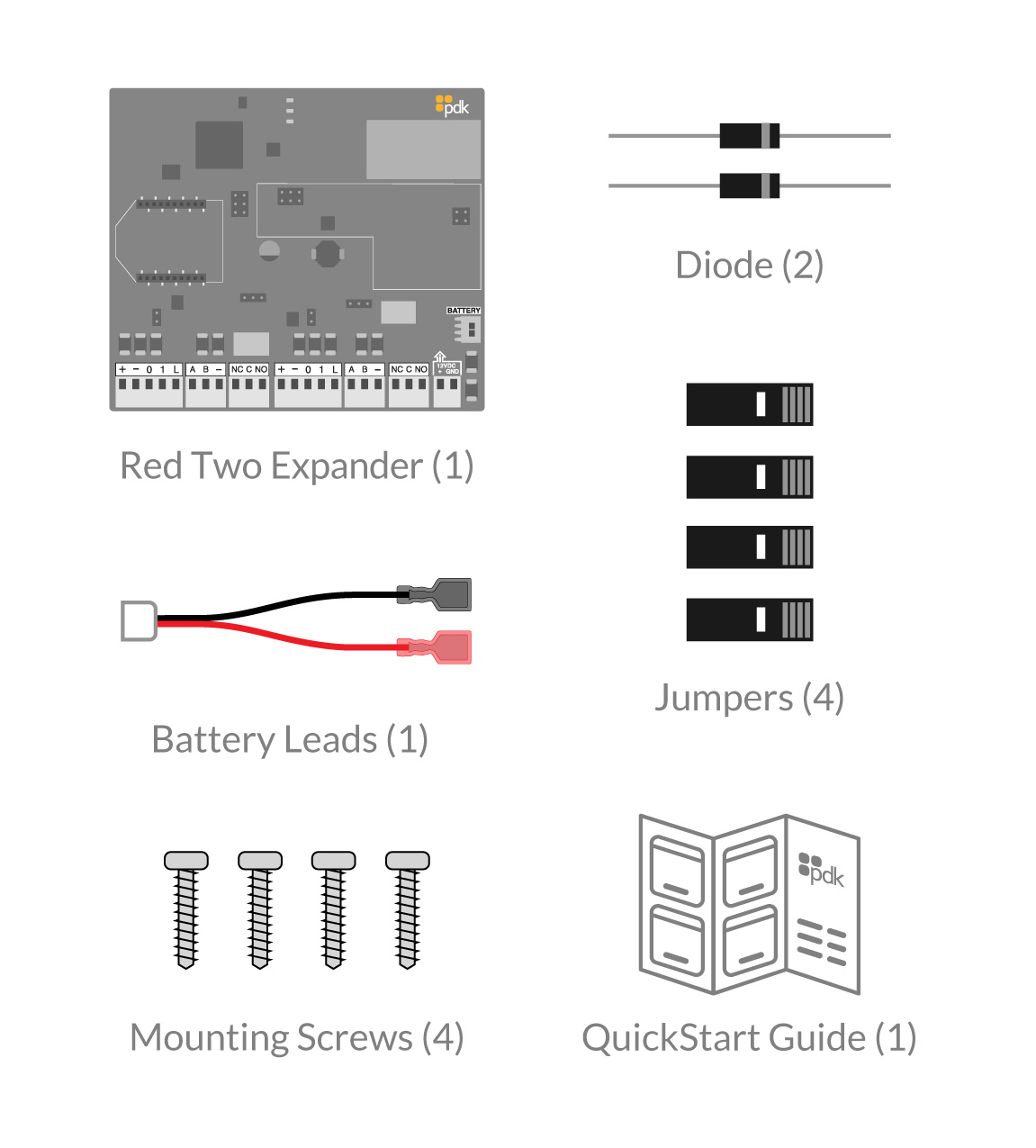

Package Contents

Red 2 comes standard with Ethernet as well as an onboard power supply that is built into the controller. Optional wireless and PoE modules are also available and may be purchased separately.

Red 2 Expander Battery Leads (1) Jumpers (4) Diodes (2) Labels (2) Mounting Screws (4) QuickStart Guide (1)



Recommended Tools

• Phillips / Slotted screwdriver (to match screw heads)
• Wire crimper/stripper

Specifications

Connections

• Removable screw-down terminals
• Polarized DC-only Power Supply Input
• Industrial-grade 2Amp Form-C Relays (2 Doors)
• Reader Input (2)
• Input A (2)
• Input B (2)
• Additional power and ground connections for devices other than door connectors

Communication Options

• Ethernet
• WiMAC wireless mesh (2.4 GHz / 802.15.4)
• Encryption: AES 128-bit
• Wireless Range: 1-mile line of sight / 450 ft. indoor average

Environmental

• Temperature: -20ºC ~ +60ºC / -4ºF ~ +140ºF
• Humidity: 0%–95% relative humidity noncondensing

Enclosure

• Red Expander Boards can be mounted in any Red enclosure.

Compliance

• Conforms to UL 294

Requirements

Power

• 12V–24V DC Input
• Power Supplies included with purchase of Red Max Controller.
• Powers readers and other door hardware directly from the bus

* Battery not included, but a backup battery must be installed to comply with UL 294.



Mounting Instructions

• Mount the Red 2 Expander in an open expansion slot in the Red Max enclosure.

Power / Battery

Use a battery that meets the following specifications and will provide at least 30 minutes of backup power in the event of an input power loss:

• Recommended Battery Type: 12 VDC 5 Ah lead-acid battery

• Recommended Battery Size: 4” x 3.5” x 3” (L H W)

• Max Battery Dimensions: 6” x 5” x 4” (L H W)


A backup battery is HIGHLY recommended to prevent system failure in the event of an input power loss. When a backup battery is not used, a loss of input power will cause a loss of functionality. A backup battery must be installed in order to comply with UL 294.

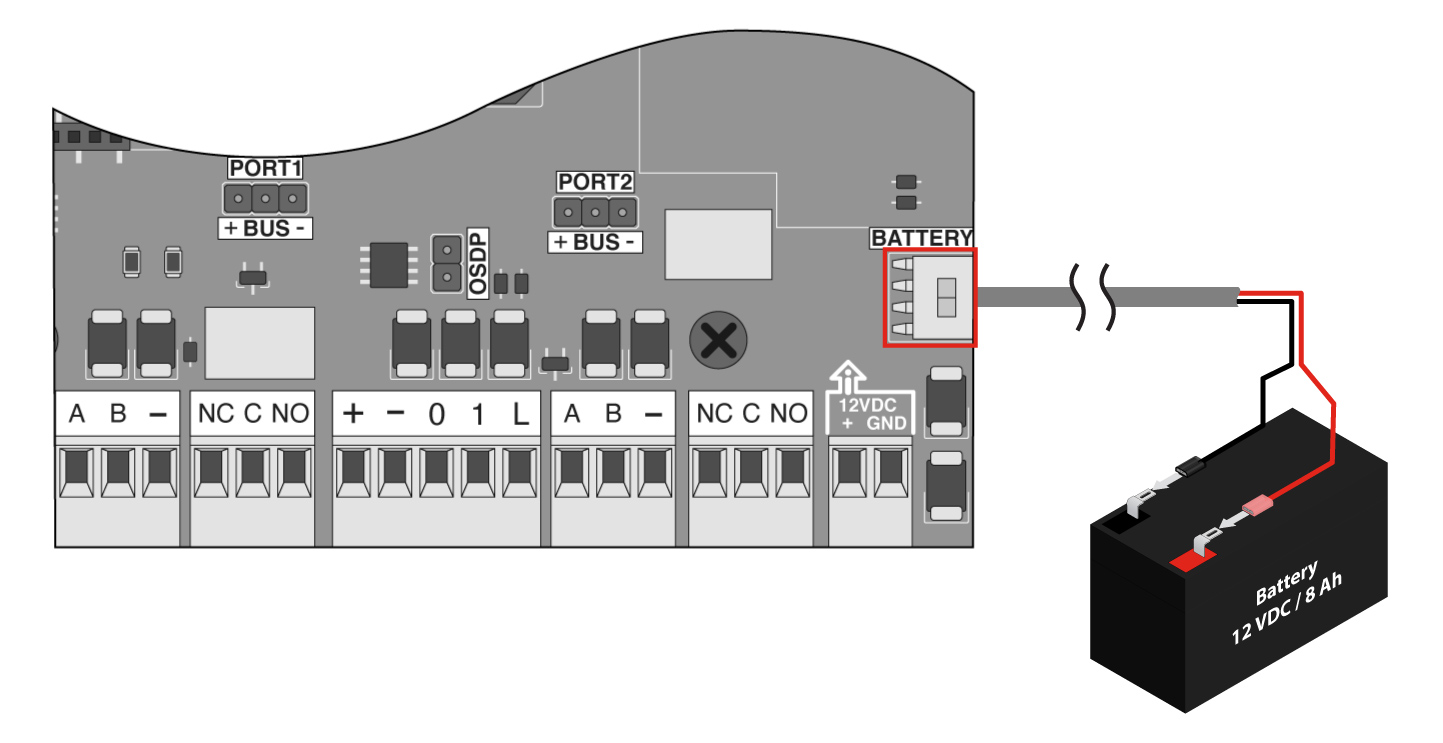

Add the 12V DC 5 Ah battery, attaching the wires from the battery to the circuit board battery terminal (illustration below).

The battery connection is polarity sensitive, meaning that it has fixed positive and negative connections. From the onboard power supply, connect a red 18/2 wire from the positive (+) battery terminal to the positive (+) on the battery connector. Connect a black 18/2 wire from the negative (-) battery terminal to the negative (-) on the battery connection.

NOTE: DO NOT connect the backup battery until ALL wiring is completed and verified; incorrect wiring could cause damage to the product.

For information about connecting other wiring, such as power wires to third-party locks, readers, and other devices, see the respective manufacturers’ instructions.



Battery Maintenance, Replacement, & Disposal

The Red 2 Expander features a battery charger and constantly monitors the battery’s health and statistics.

Check the battery regularly and replace it only with an identical battery or a ProdataKey recommended battery. Dispose of used batteries according to local regulations or the battery manufacturer’s instructions.

IMPORTANT: There is a risk of a battery explosion if the battery is incorrectly replaced.



Connections

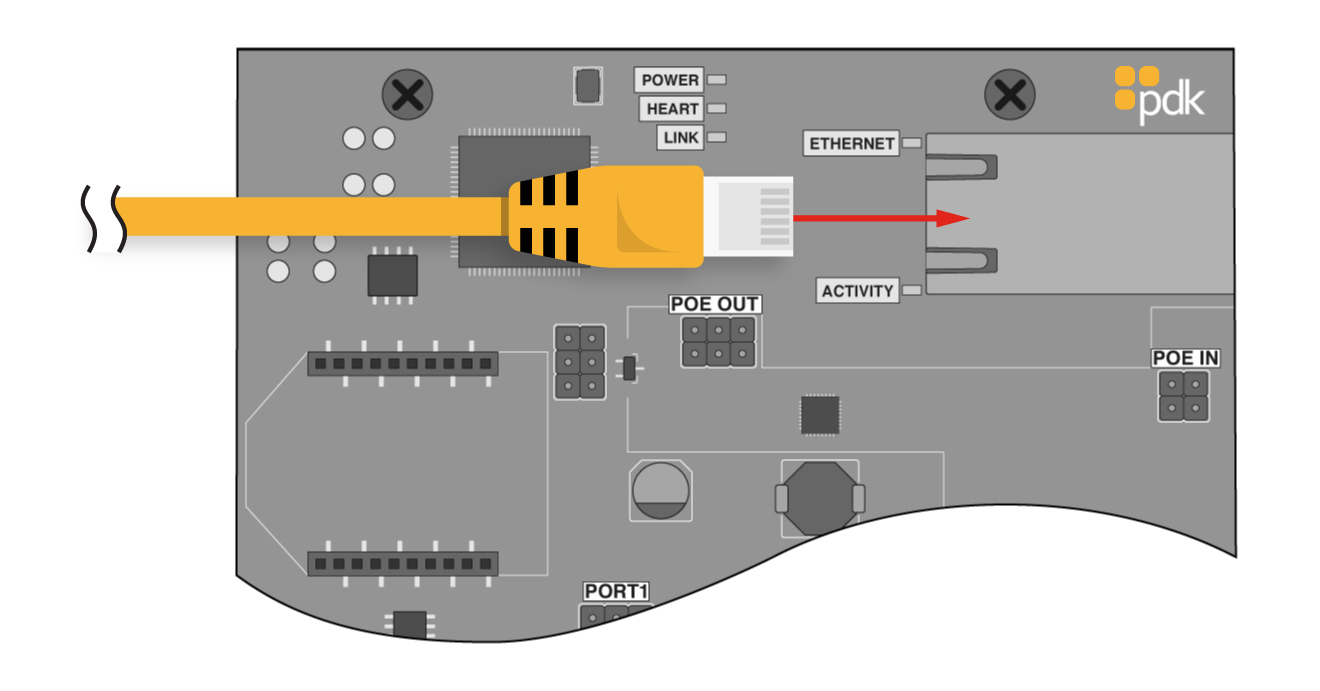

Standard Ethernet Board - An Ethernet connection is the default Red 2 Expander communication option.

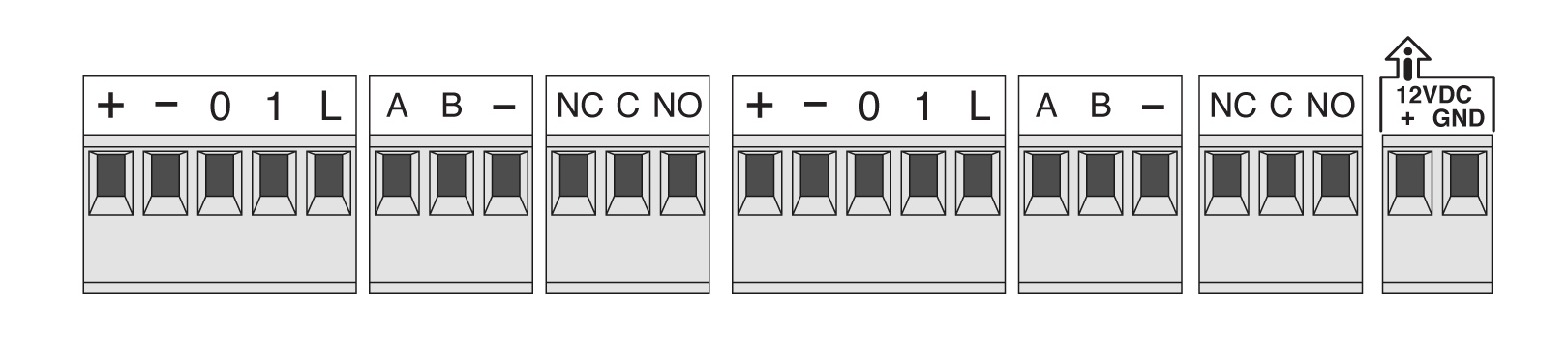

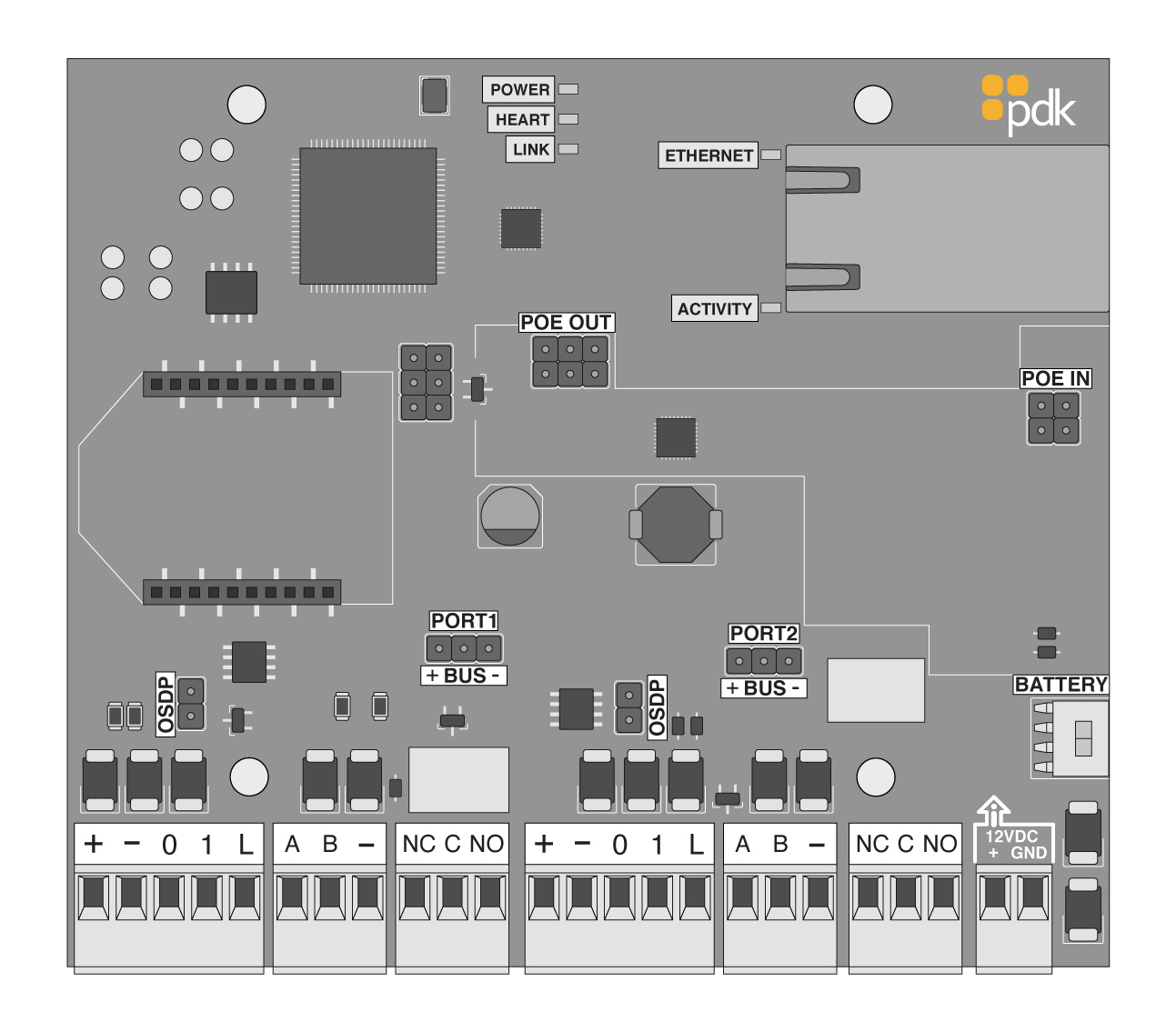

Connectors

This section describes the Red 2 Expander connectors' technical specifications.

The voltage connector is 12VDC or 24VDC only.

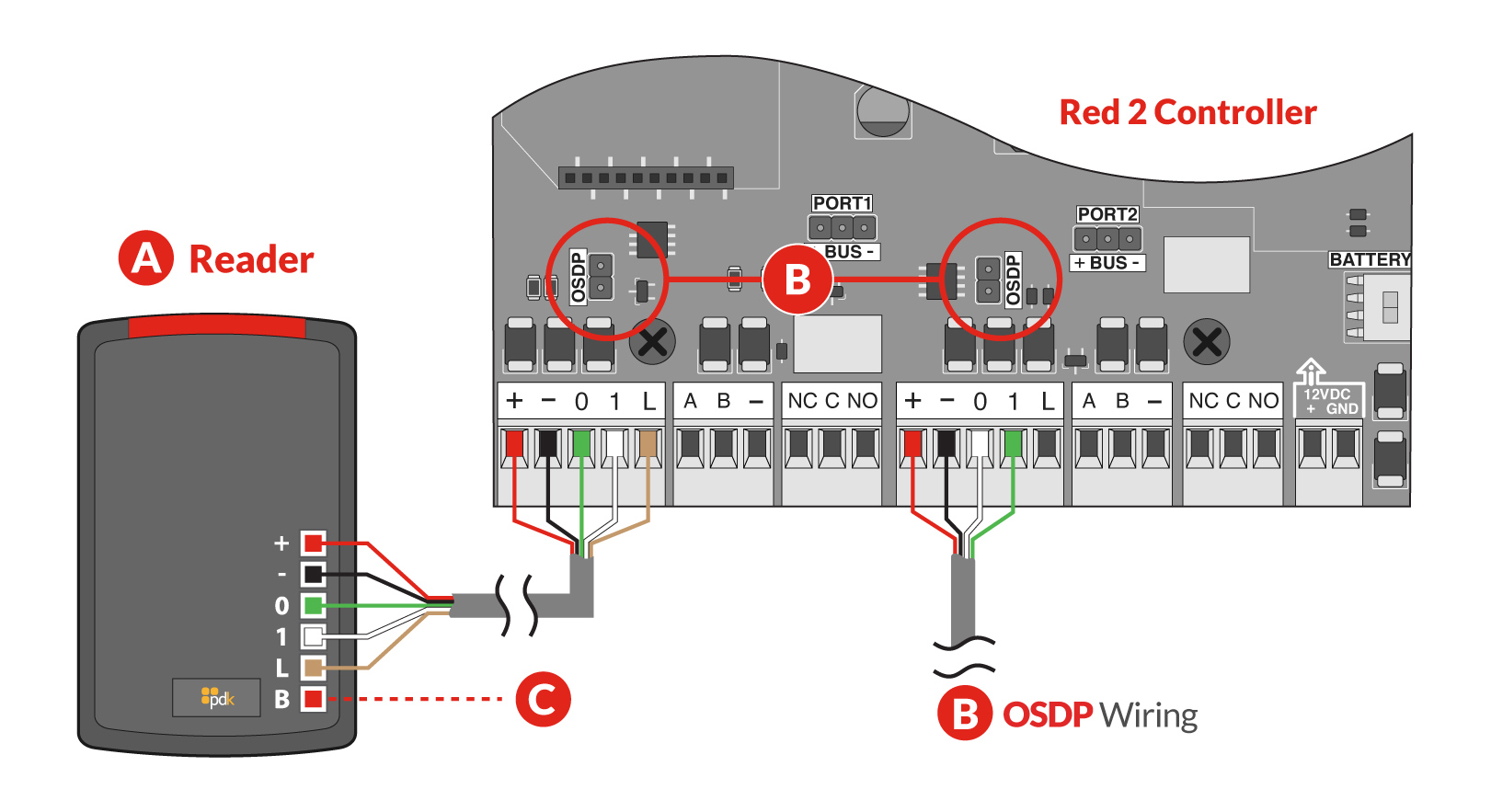

Reader Connectors

This section describes the Red 2 Expander connector's technical specifications.

(A) Wiegand Reader Wiring - The reader is mounted at the first door with a 22/5 or 22/6 wire ran to the door controller. Wire the reader to the controller as shown above. Be sure to check polarity and voltage prior to powering the controller.

(B) OSDP Reader Wiring - OSDP wiring differs from Wiegand wiring in number of wires and order. Place jumper(s) to enable OSDP multi-drop capability for this Port.

(C) Piezo (buzzer) - Optional piezo trigger wiring for a door prop alarm, by connecting the Piezo wire to the NO on a designated relay. On the relay where the piezo is wired to, a jumper must be placed on the bus and negative (-) pins The piezo buzzer must be controlled by setting System Event rules.

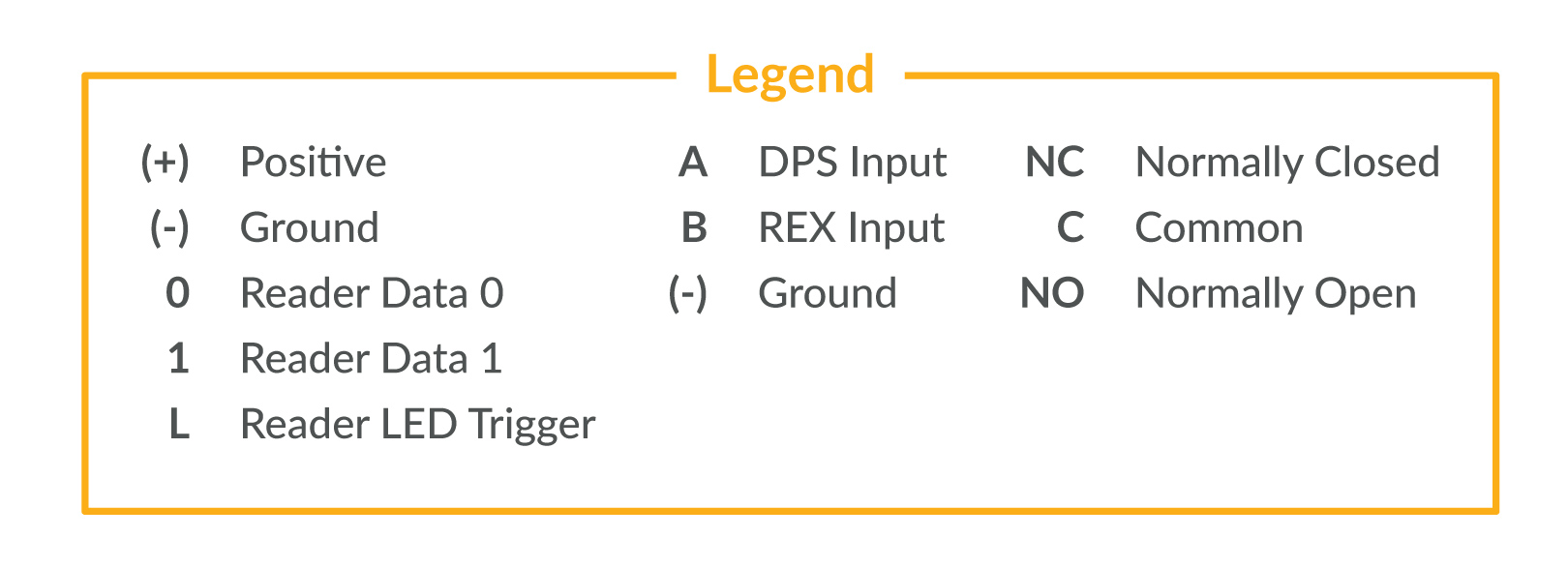

NOTE: Use the following reference for wiring a reader to the Expander board.

Wiegand Readers:

• Red: to + (positive) connector
• Black: to - (negative) connector
• Green: to 0 (zero) connector
• White: to 1 connector
• Brown: to L connector

OSDP Readers:

• Red: to + (positive) connector
• Black: to - (negative) connector
• Green: to 1 connector
• White: to 0 (zero) connector

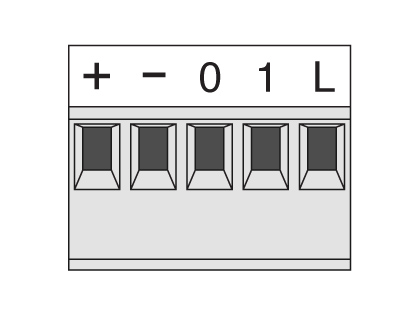

5-Pin Connector	Port	PIN	Notes
Power Output	+	1	Positive 12VDC Out
Power Output	-	2	Negative 12VDC Out
Reader Data	0	3	Input Data 0 / OSDP B
Reader Data	1	4	Input Data 1 / OSDP A
Reader LED Trigger	L	5	Reader LED Output Trigger

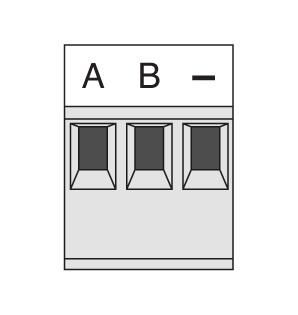

3-Pin Connector	Port	PIN	Notes
DPS Input	A	1	Door Position Switch or assignable
REX Input	B	2	Request to Exit or assignable. Output 0 (NO or NC and + or - selectable)
Ground	-	3	Ground

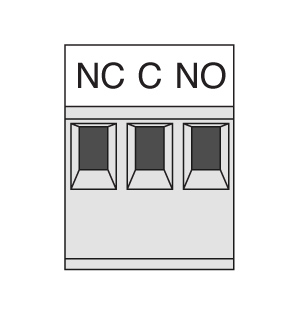

3-Pin Connector	Port	PIN	Notes
Normally Closed	NC	1	Normally closed connection for main form C relay with optional jumper configuration for wet positive (+) or negative (-) output.
Common	C	2	Common connection for main form C relay.
Normally Open	NO	3	Normally open connection for main form C relay with optional jumper configuration for wet positive (+) or negative (-) output.



Power Port Connector

Power into the controller board is polarity sensitive, meaning that it has fixed positive and negative connections.

2-Pin Connector	Port	PIN	Notes
Controller Power Input	+	1	12/24 VDC Positive
Controller Power Input	GND	2	12/24 VDC Negative

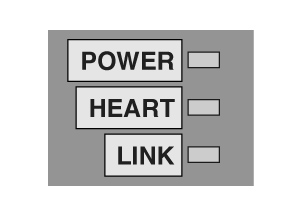

Board Systems LED Indicators

LED indicators are shown on the controller board for POWER, LINK, and HEART. The ethernet connector has indicators for  ETHERNET and ACTIVITY.

LED	Light	Status
POWER	On	Board is powered up
POWER	Off	No power to board.
HEART	Flashing	Normal operation.
HEART	Solid On	Possible serious hardware function. Call Support.
LINK	Solid On	No connection.
LINK	Solid Off	The connection is good.
ETHERNET	Orange	The connection is communicating at 100mbps
ETHERNET	Green	The connection is communicating at 1000mbps/1gbps
ACTIVITY	Off	There is no connection to a network through the cable.
ACTIVITY	Green	There is an active connection to a network through the cable.

When a relay is triggered, an LED near the appropriate relay will turn on, showing the relay has changed state.

Wiring

NOTE: For UL-certified wire installations, all wires running from a Red 2 Expander to a lock, strike, or reader device must be less than 98.5 feet (30 meters).

• Strip the wire ends as required.

• Install the reader, and attach the wires, meeting your reader configurations. See Wiring Diagrams for additional information.

• Connect the wires between the door controller and locks and any other devices.

NOTE: For information about the connectors and their specifications and diagrams, refer to the appropriate wiring diagrams: Maglock, Fail-Secure Door Strike, and Fail-Safe Door Strike.



Recommended Wiring Dimensions

Use 26 gauge minimum, 18 gauge maximum, stranded for general wiring. Wiring methods shall be in accordance with the National Electrical Code, ANSI/NFPA 70. Follow these recommended wiring sizes.

Wiring For	Recommended Size
Power Input	18 gauge 2 conductors (18/2) wire
Reader	22 gauge 6 conductors (22/6) wire
Strike / Maglock	18 gauge 2 conductors (18/2) wire
REX	18 gauge 4 conductors (18/4) wire
OSDP Reader	22 gauge 6 conductors Twisted-Pair (22/6) wire

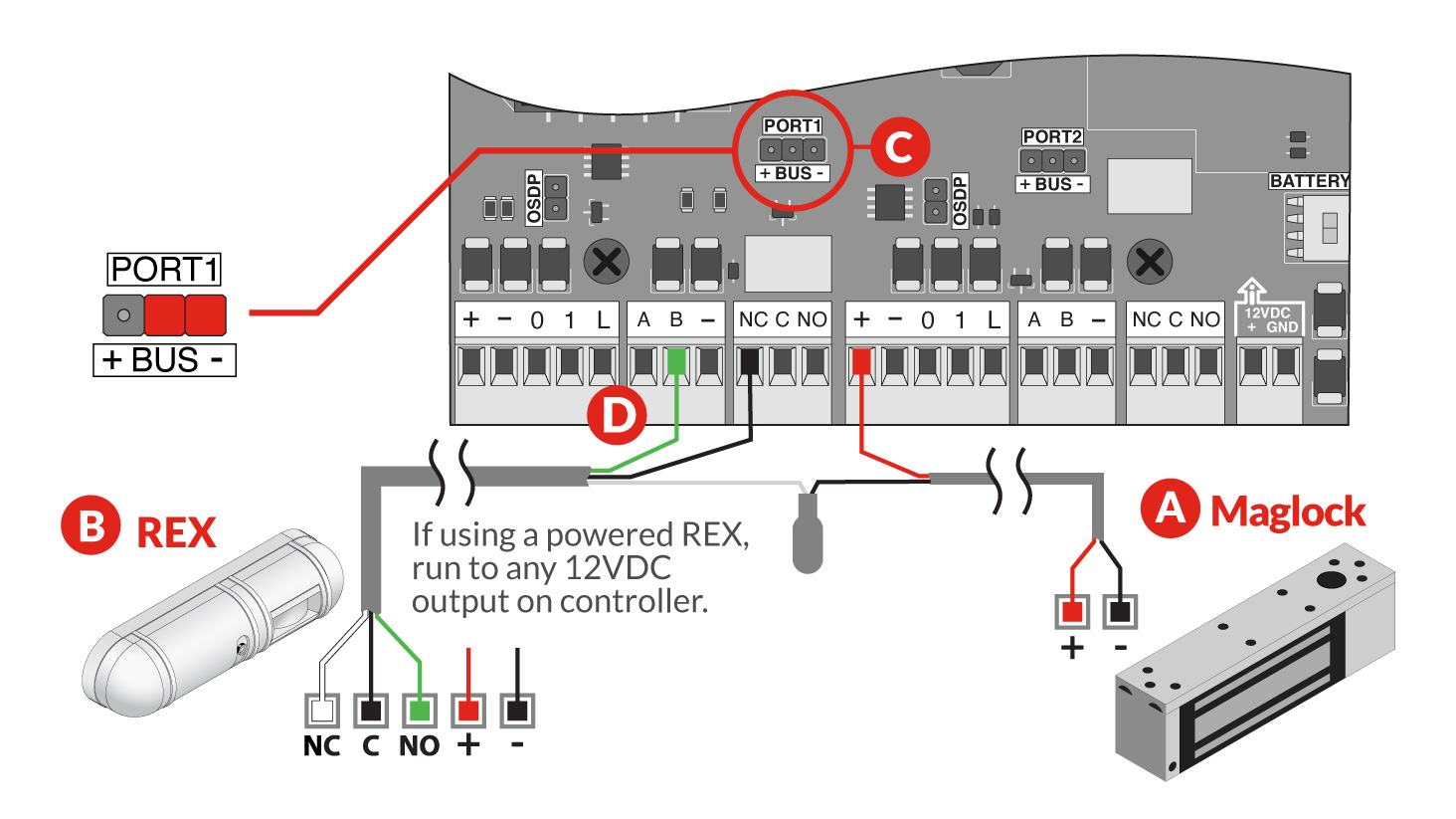

Maglock/Exit Device Wiring Diagram

Locking devices can be either "fail-safe" or "fail-secure". A magnetic lock, or maglock, is a "fail-safe" locking device that consists of an electromagnet and an armature plate. The electromagnet portion of the lock is typically attached to the door frame, while a mating armature plate is attached to the door. The two components are in contact when the door is closed. When the electromagnet is energized, a current passing through the electromagnet causes the plate to attract the electromagnet, creating a locking action.

(A) Maglock: When installing a maglock, it is required to install an electronic REX (request to exit) device as well as a mechanical button at the same door (in case of electrical failure) for free egress. Run 18/2 wire connections from the maglock to the door controller.

(B) REX/Exit Device: Mounted in the desired location with 18/5 wire running from the REX to the controller (18/3 wire if non-powered REX). Wire the REX to the controller and maglock. If using a powered REX, run to any 12VDC output on the controller. (If reporting is not needed in the system, simply eliminate the dashed wire.)

NOTE: It is not recommended to power third-party devices to the io board. Use a separate external power supply when wiring the exit device.

(C) Jumper: Use the designated positive (+) or negative (-) board voltage out of NO and NC. If the jumper is off, the relay is a standard “dry contact”, needing a connection from common (C) and either NO (Normally Open) or NC (Normally Closed). In this diagram, the jumper is placed on the top (-) and center pin to operate the maglock.



Diode Setup

A diode is a standard semiconductor device integral to the safe and proper function of the door controller. It acts as a grounding tool, allowing the flow of current in one direction only. When a door strike is called/requested/sent, the coil sends a spike (also called “kickback voltage”) down the line with as much as 50,000 volts. Without a diode semiconductor, this kickback voltage would damage the control equipment. When properly installed, the diode keeps kickback voltage localized at the lock.

To protect your equipment against electrical kickback, the diode must be installed across the DC-powered lock, at the strike, between positive (+) and ground (-). DC voltage is polarized, meaning that it has fixed positive and negative connections. The diode must be installed in the direction shown in the illustrations: gray stripe to positive (+), black to negative or ground (-).

IMPORTANT: The diode MUST be installed as close to the lock as possible. The best scenario (if possible) is directly across the screw terminals on the lock. Another option is to splice the diode in parallel (shown in image two), connecting it to the positive (+) and negative (-) strike wires using dolphin connectors, and crimp the wires.

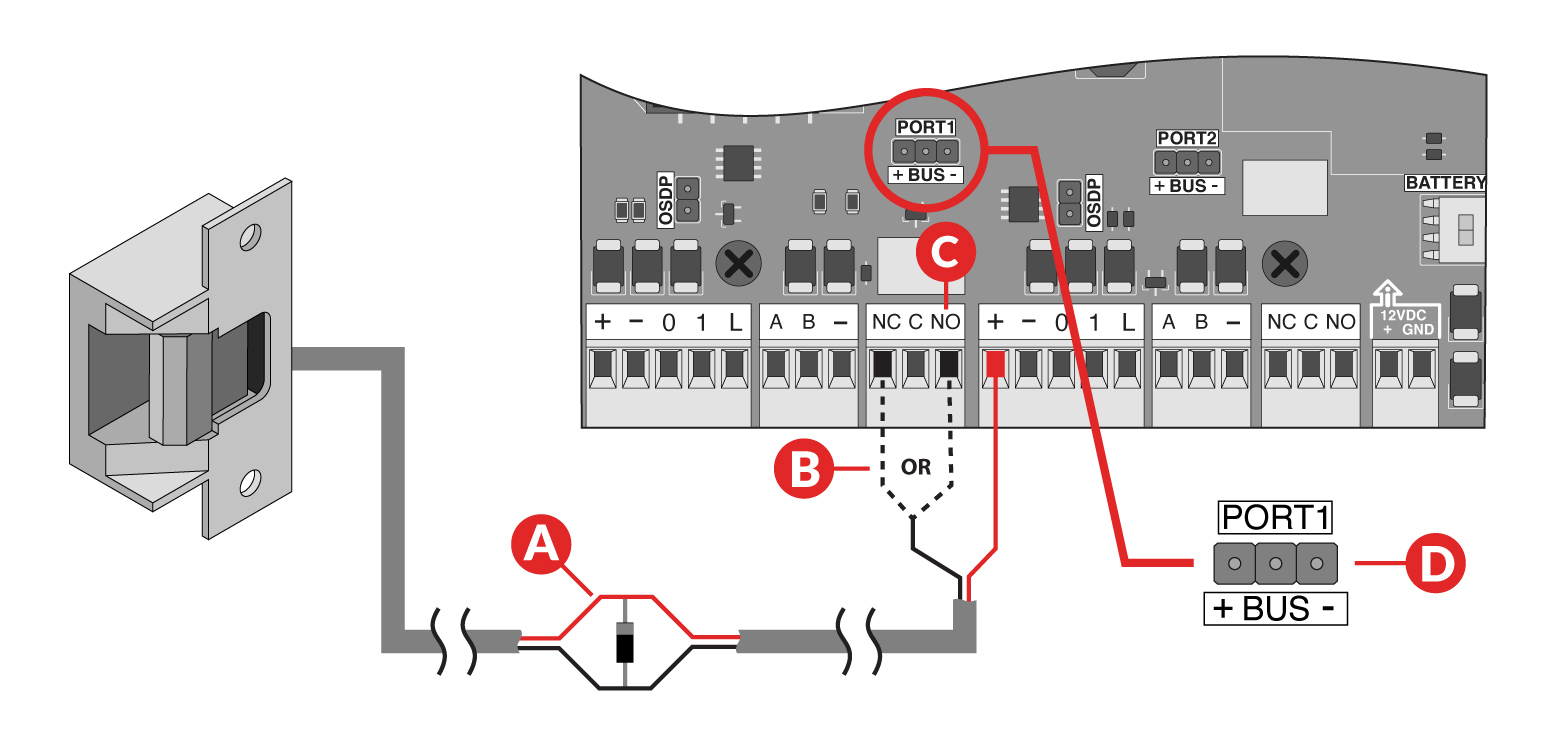

Locking Relay Wiring Diagram

(A) Diode: The provided diode MUST be installed when using a strike. Install at the strike with the stripe of the diode on positive (+) and the black on negative (-).

(B) NC: Normally Closed—Used for maglocks (or strikes in fail-safe configuration). Connect the negative (-) of the maglock or strike to NC on the door controller.

(C) NO: Normally Open—Used for strikes in the fail-secure configuration. Connect the negative (-) of the strike to NO on the door controller.

(D) Jumper: Used to designate (+) or (-) board voltage out of NO and NC. If the jumper is off, the relay is a standard “dry contact” needing input into common. In this diagram, the jumper is placed on (-) side to operate the strike.



Fail-Secure Door Strike Wiring Diagram

A fail-secure locking device remains locked when power is lost. An electric strike replaces the fixed strike faceplate often used with a latch bar. It normally presents a ramped surface to the locking latch allowing the door to close and latch just like a fixed strike.

(A) Diode: The provided diode MUST be installed when using a strike. Install at the strike with the stripe of the diode on positive (+) and the black on negative (-).

(B) NO: Normally Open - Used for strikes in fail-secure configuration. Connect the negative (-) of the strike to NO (Normally Open) on the Red 2 Expander.

(C) Jumper: Use the designated positive (+) or negative (-) board voltage out of (NO) and (NC). If the jumper is off, the relay is a standard “dry contact” needing input into common. In this diagram, the jumper is placed on the negative (-) and center pin to operate the strike.



Fail-Safe Door Strike Wiring Diagram

A fail-safe locking device unlocks when power is lost.

(A) Diode: The provided diode MUST be installed when using a strike. Install at the strike with the stripe of the diode on positive (+) and the black on negative (-).

(B) NC: Normally Closed - Used for strikes in fail-safe configuration. Connect the negative (-) of the strike to NC on the Red 2 Expander.

(C) Jumper: Used to designate if positive (+) or negative (-) board voltage is supplied out of (NO) and (NC). If the jumper is off, the relay is a standard “dry contact,” needing input into common. In this diagram, the jumper is placed on the negative (-) and center pin to operate the strike in fail-safe configuration.

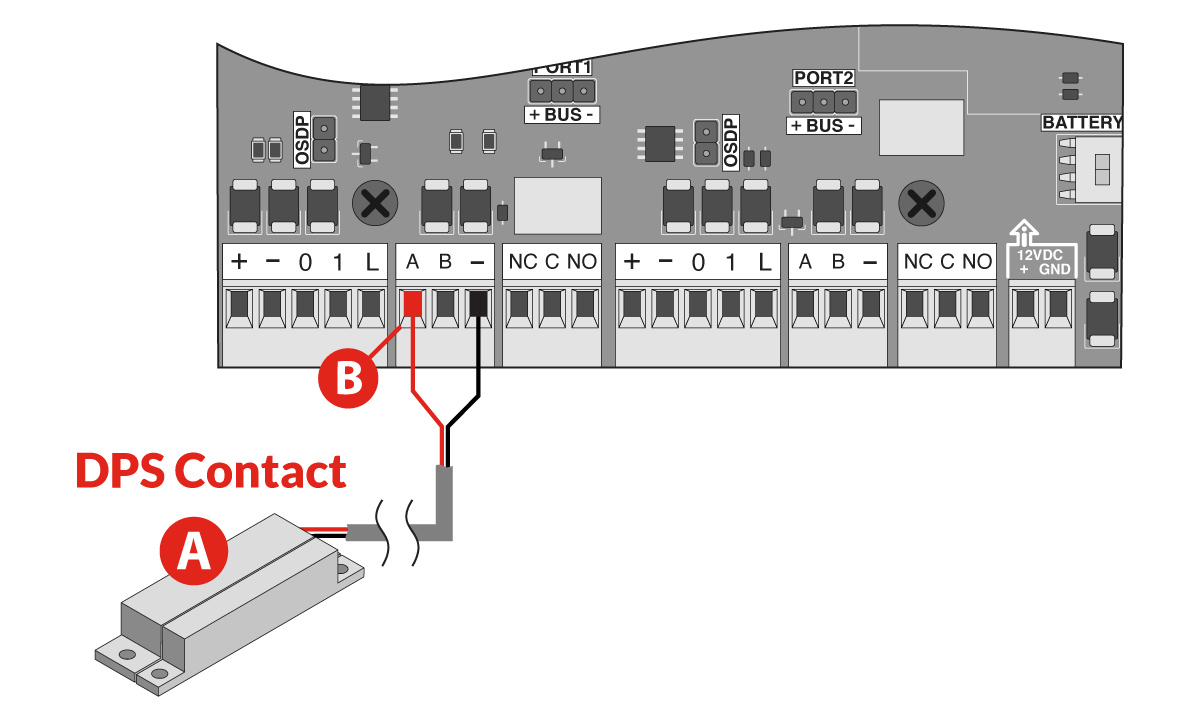

Door Position Sensor (DPS) Wiring Diagram

(A) DPS: The Door Position Sensor is mounted on the door frame in the desired location with a 22/2 wire running from the DPS to the controller. (When using two DPS sensors for double doors, wire them in series with only two conductors running back to the controller.)

(B) Input A: Rule-based inputs can be triggered by using the (A) input for something other than DPS.

NOTE: When the DPS input changes state, such as the door being closed and completing the circuit or opening the door and breaking the circuit, an input event occurs. A rule can then be set up to trigger a System Event based on this input event.



Certifications

FCC Compliance Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

Product can be used without license conditions or restrictions in all European Union countries, including Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Luxembourg, The Netherlands, Portugal, Spain, Sweden, and the United Kingdom, as well as other non-EU countries, including Iceland, Norway, and Switzerland.

UL 294

Section 8:

Feature	Level
Destructive Attack Level	II
Line Security	II
Endurance Level	IV
Standby Power	II



Safety, Maintenance, & Operational Information

Requirements

This manual is intended for trained and authorized installers of ProdataKey access control products. PDK Cloud Nodes require firmware version 1.6.4.

Updated versions of this document will be posted to the ProdataKey website, as required. Other user manuals are also available on the ProdataKey website’s Document Library.

In this manual, ProdataKey and its door controllers are referred to as the PDK products, Red 2, Eight io, product, network door controller, device, device controller, and Cloud Node.



Liability

Every care has been taken in the preparation of this document. Please feel free to inform ProdataKey Support of any inaccuracies or omissions in this documentation. We welcome your feedback and suggestions. ProdataKey cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and documentation without prior notice.

ProdataKey makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. ProdataKey shall not be liable nor responsible for incidental or consequential damages in connection with the furnishing, performance, or use of this material. This product is only to be used for its intended purpose.



Intellectual Property Rights

Patents Pending - ProdataKey has intellectual property rights relating to technology embodied in the product described in this document.



Equipment

This equipment must be installed and used in strict accordance with the instructions given in the user documentation. This equipment contains no user-serviceable components.   Wiring methods shall be in accordance with the National Electrical Code, ANSI/NFPA 70. Unauthorized equipment changes or modifications will invalidate all applicable regulatory certifications and approvals.

Use only accessories that comply with the technical specification of the product. These can be provided by ProdataKey or an approved third party. Use only spare parts provided by or recommended by ProdataKey.

After the system is installed and working properly, no further maintenance or testing is required.

Do not attempt to repair the product by yourself. Contact ProdataKey Support or your ProdataKey authorized distributor for service matters.



Trademark Acknowledgments

ProdataKey, Prodata Key, prodatakey, PDK, Prodata, are registered trademarks or trademark applications of ProdataKey in various jurisdictions. All other company names and products are trademarks or registered trademarks of their respective companies. Permission to use, copy, modify, and distribute this software and its documentation for any purpose with or without fee is hereby granted, provided that the copyright notice appears in all copies and that both the copyright notice and this permission notice appear in supporting documentation.



Regulatory Information

Electromagnetic Compatibility (EMC)

This equipment has been designed and tested to fulfill applicable standards for:

• Radio frequency emissions when installed according to the instructions and used in its intended environment.
• Immunity to electrical and electromagnetic phenomena when installed according to the instructions and used in its intended environment.

Safety

This manual has been prepared to help you install the product. Read through the installation instructions carefully before installing the product. Keep the guide for future installation and maintenance reference.

This product complies with IEC/EN/UL 60950-1, Safety of Information Technology Equipment. If your connecting cables are routed outdoors, the product shall be grounded either through a shielded network cable (shielded twisted pair) or another appropriate method.

The power supply used with this product shall fulfill the requirements for Safety Extra Low Voltage (SELV) and Limited Power Source (LPS) according to IEC/ EN/UL 60950-1.



Disposal and Recycling

When this product has reached the end of its useful life, dispose of it according to local laws and regulations. For information about your nearest designated collection point, contact your local authority responsible for waste disposal. In accordance with local legislation, penalties may be applicable for incorrect disposal of this waste.



Supported Readers

See the available product data sheets at https://www.prodatakey.com/products



Learn More

**Visit ProdataKey accesscontrol101.com for certification training and tutorials.



Notice

• The ProdataKey Red 2 Expander is intended for indoor use only.
• The ProdataKey product shall be installed by a trained professional.
• The ProdataKey product shall be used in compliance with local laws and regulations.
• The ProdataKey product shall be installed within a secured area.
• The power supply used must be equipped with a power indicator visible from the exterior.
• Mount in a dry and well-ventilated environment.
• To provide the best conditions and proper operation of the product, the controller must be securely mounted in accordance with the installation instructions.
• Do not install the door controller box on unstable brackets, surfaces, or walls.
• Use only applicable tools when installing the ProdataKey product. Using excessive force while mounting the product could cause damage.
• Avoid exposing ProdataKey product to shocks or heavy pressure.
• Do not use chemicals, caustic agents, or aerosol cleaners to clean the product. Use a clean cloth dampened with pure water for cleaning the exterior of the enclosure.
• Use only accessories that comply with the technical specification of the product. These can be provided by ProdataKey or a ProdataKey authorized third-party vendor.
• Use only spare parts provided by or recommended by ProdataKey Support or a product reseller.
• Do not attempt to repair the product by yourself. Contact ProdataKey Support or your ProdataKey authorized distributor for service matters.
• Use a can lock to ensure secure enclosures and prevent tampering.
• Protect the power cord, Ethernet cable, and transformer wires from being walked on or pinched, particularly where the wiring exits the box.
• For UL- certified installations, all cable runs to the door controllers must be less than 98.5 feet (30 meters).



Manufacturer’s Limited Warranty

One to three-year warranty against defects in materials and workmanship. Full details at prodatakey.com.**



Technical Support / Sales

Technical Support:

• Phone: 801.317.8802 option #2

• Email: support@prodatakey.com

• Direct Dealer Support Line: 801.206.4086

Sales:

• Phone: 801.317.8802 option #1
• Email: sales@prodatakey.com

Copyright

© 2022 ProdataKey, LLC. All rights reserved. ProdataKey, the ProdataKey logo, the Red logo and other ProdataKey marks are owned by ProdataKey, LLC and may be registered. All other trademarks are the property of their respective owners. ProdataKey assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice.

Red 2 Expander Instruction Manual

ProdataKey Door Controllers

© 2022 ProdataKey, LLC.

Ver. 1.0.0

Date: August 2022
