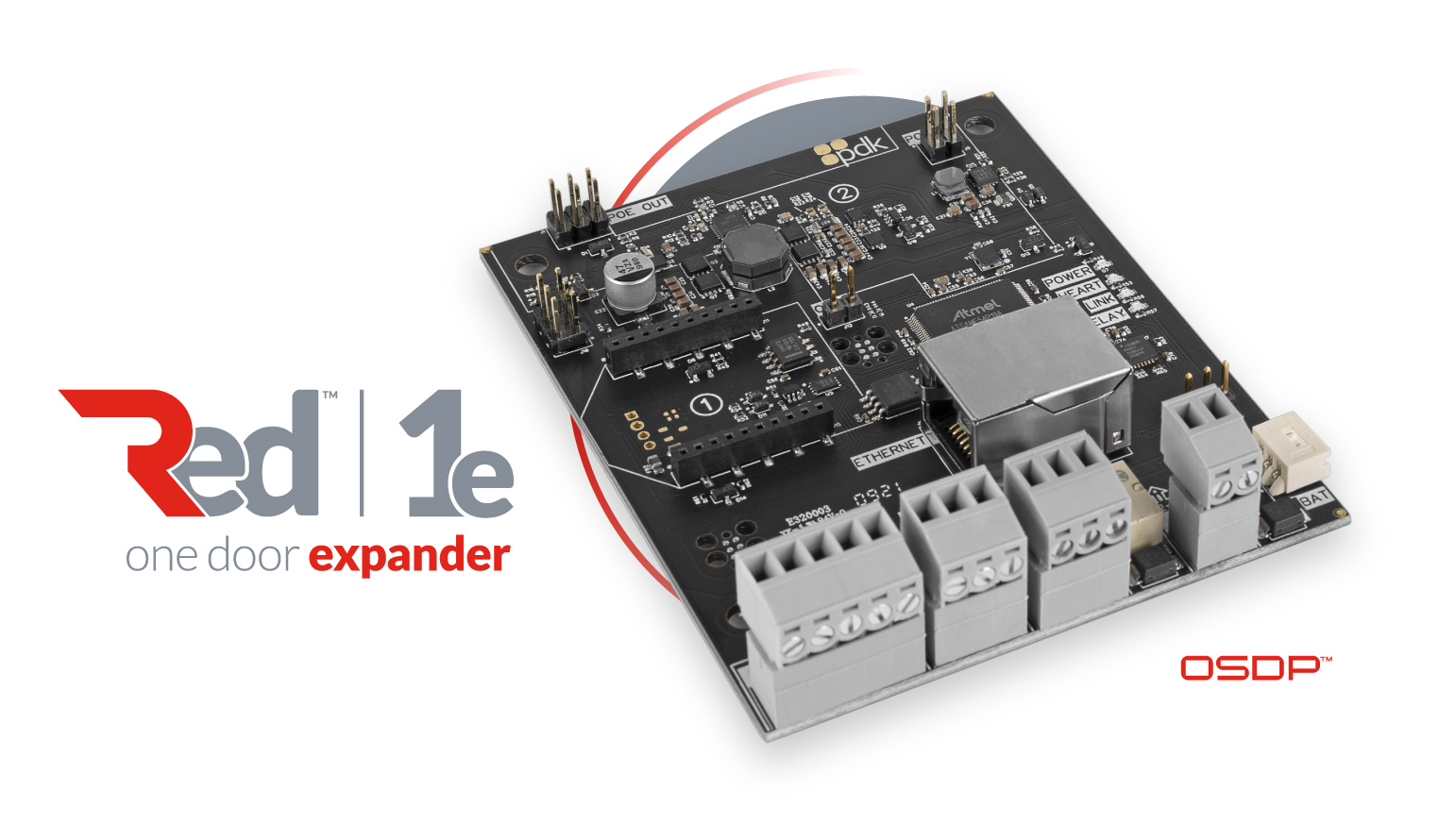

Red 1 Expander Board

One Door Controller - PN: R1E

PDK Red™ Expander Boards accomplish complete scalability, built to customize the Red Max and accomplish all of your system needs. Every expander board includes built-in Ethernet connectivity and self-discovery, simplifying IP configuration and functionality. Each expander is equipped with OSDP functionality, an onboard power supply, and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health.

Optional Module Add-On Kits

WiMAC^TMwireless Module PN: RMW
PoE Module PN: RMPOE

Red 1 Features

Self-Discoverable - Red 1 is automatically discovered as a connected device by the Cloud Node. When an Ethernet device is connected to the Cloud Node, it pings the node to let the node know that it is there; it is not necessary to enter the IP address because the device is self-discovered.

Scalability - Whether you need one door or a thousand, the Red 1 controller allows you to scale the system to just the right size. In addition, with the flexibility of our WiMAC (Wireless Mesh Access Control), you can add more doors anytime or anywhere.

Plug ‘n’ Play Connectivity - All PDK red devices were designed to be plug ‘n’ play. That means they’re easy to install right out of the box. It’s simple to add in any device, no matter how large the job is, and you can quickly scale a system to any size.

One Reader Input Ports - One input ports are ideal for applications where both read-in and read-out are a security requirement. Know exactly when users enter and exit a premise.

Battery Charger and Statistics - In addition to charging the battery when a backup battery is attached, battery stats are also provided.

Fully Supervised - Never be caught off guard again. Pdk.io intelligently monitors the network and wireless connectivity of each controller in your system and alerts you if any issues arise, including the following: overcurrent events, primary power connectivity, battery connectivity, battery charge status.

Supports OSDP Protocol - Open Supervised Device Protocol (OSDP) is an access control communications standard developed by the Security Industry Association to improve interoperability among access control and security products. OSDP brings heightened security and improved functionality. It is more secure than Wiegand and supports AES-128 encryption. OSDP handles two-way communication between a reader and a controller. A controller or an interface unit can connect with a reader and identify a device if it is malfunctioning, manage LED indication, or verify an entered PIN.

Specifications

Connections

Removable Screw-down Terminals
Built-in Power Supply
Industrial-grade 2A Form-C Relay
Reader
Input A
Input B

Communication Options

Ethernet
WiMAC Wireless (2.4 GHz / 802.15.4)
PoE++
Encryption: AES 128bit
Wireless Range: 1 Mile LoS, 450ft indoor average

Environmental

Temperature: -4º ~ +140º F / -20º ~ +60º C
Humidity: 0 - 95% relative humidity non condensing

Enclosure

Red Expander Boards can be mounted to any Red enclosure.

Compliance

Conforms to UL 294

Requirements

Power

12V-24V DC Input
Power supplies included with purchase of Red Max Controller
Powers readers and other door hardware directly from the bus

* Battery not included but a backup battery must be installed to comply with UL 294.

Manufacturer's Limited Warranty

One to three-year warranty against defects in materials and workmanship. For full details visit prodatakey.com.

For questions about the Red 1 controller, contact Support.

Red 1 Expander Board Data Sheet
