PoE++ Module User Manual

Rev 1.0.0

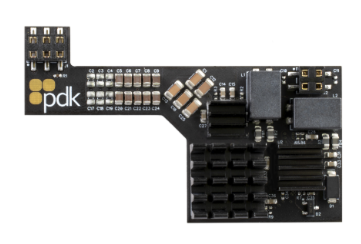

Red Module Kit - Part Number: RMPOE2

Specifications

Communication      Environmental      Compliance

Communication

• Ethernet

Environmental

• Temperature: -4° ~ +140° F / -20° ~ +60°C
• Humidity: 0 - 95% relative humidity non-condensing

Compliance

• Conforms to FCC Part 15

Installation

Installation Instructions     Max Peripheral Power Provided

Installation Instructions

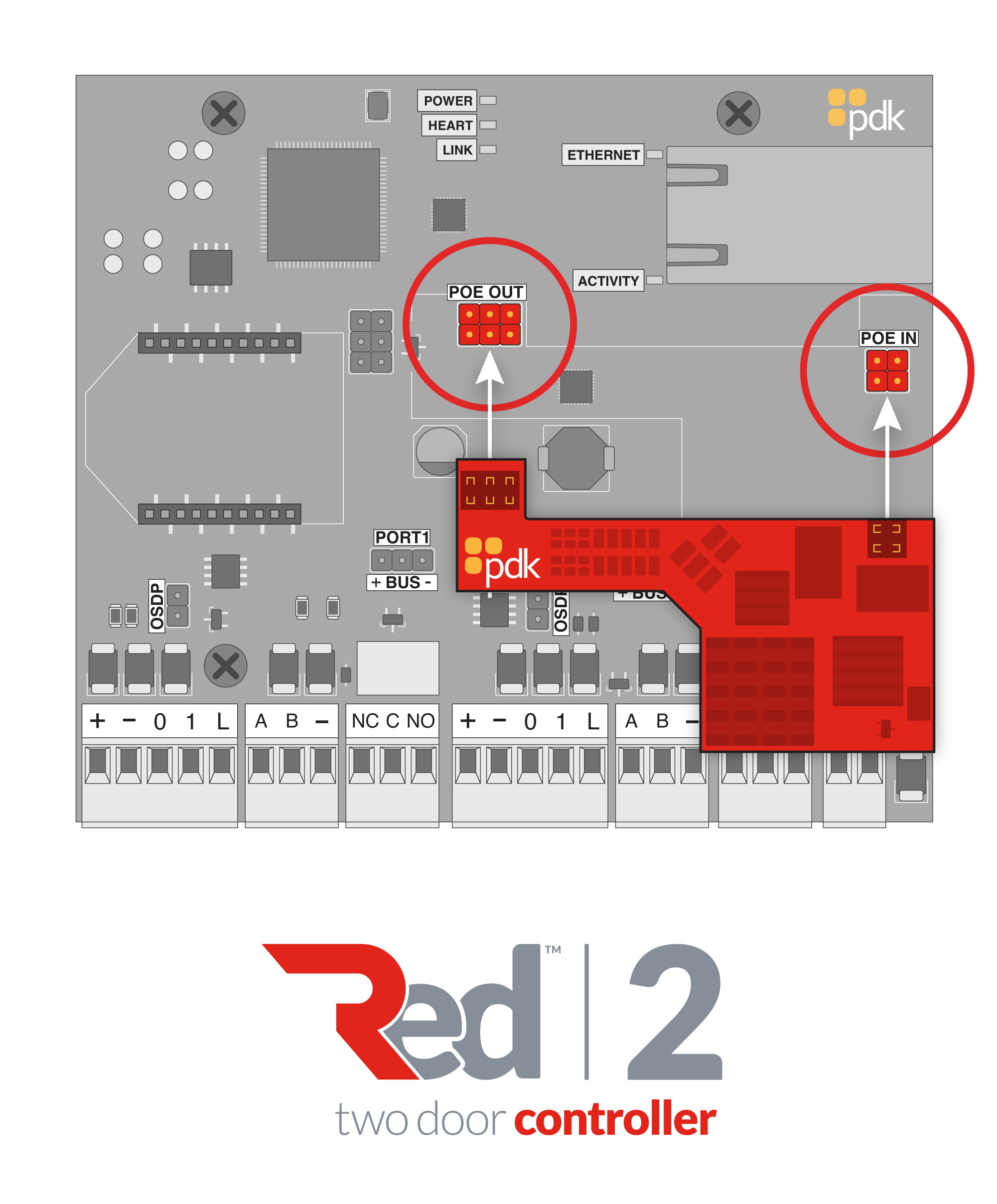

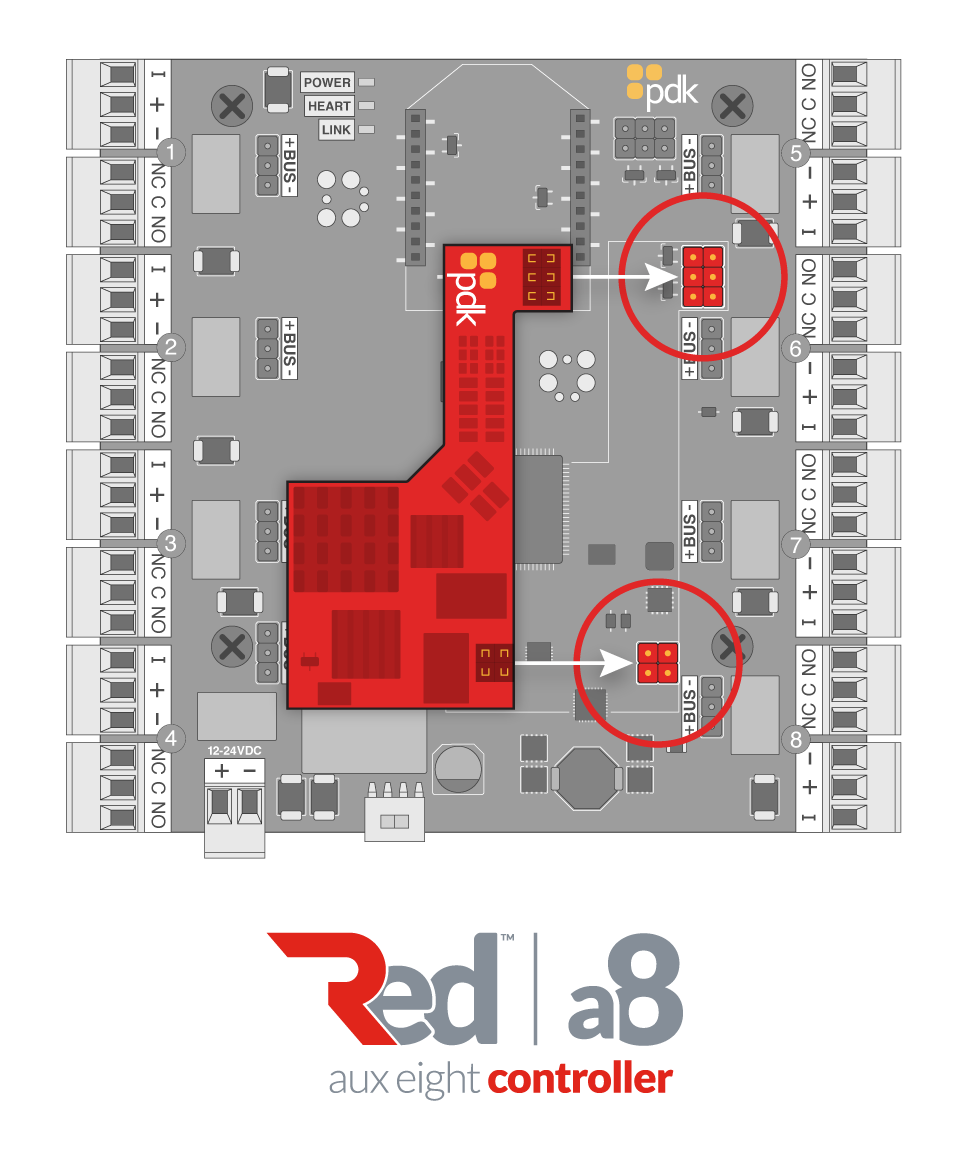

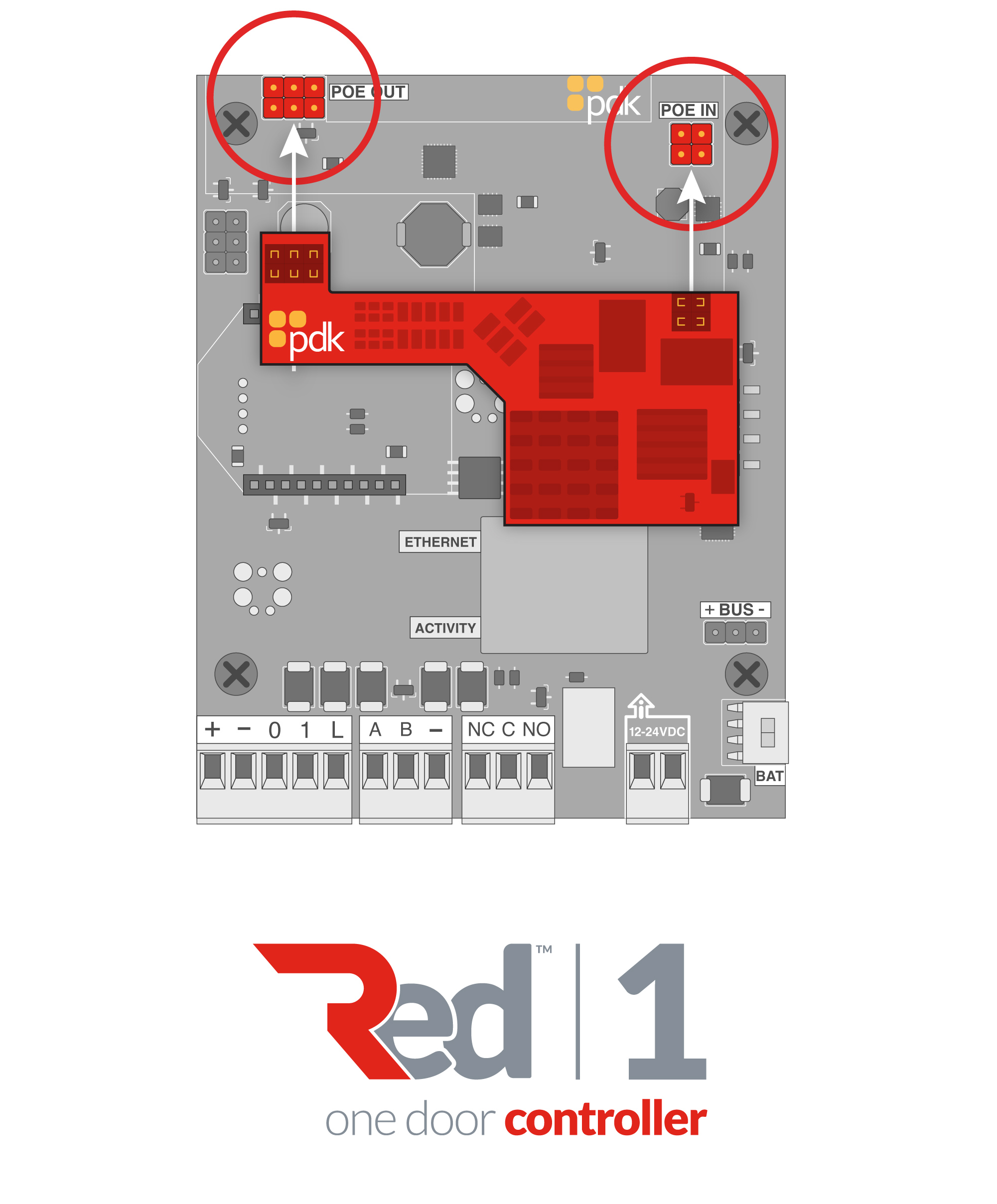

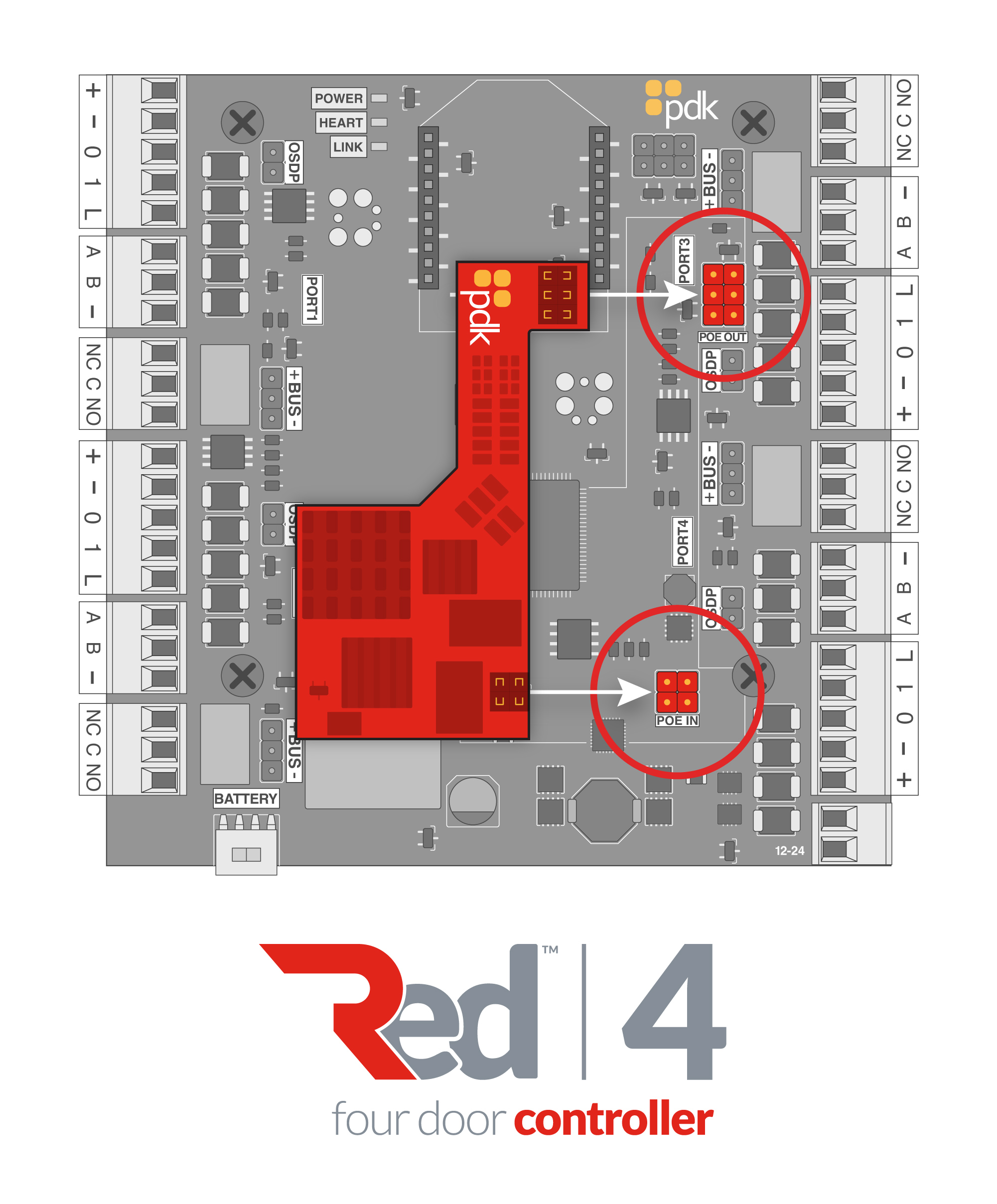

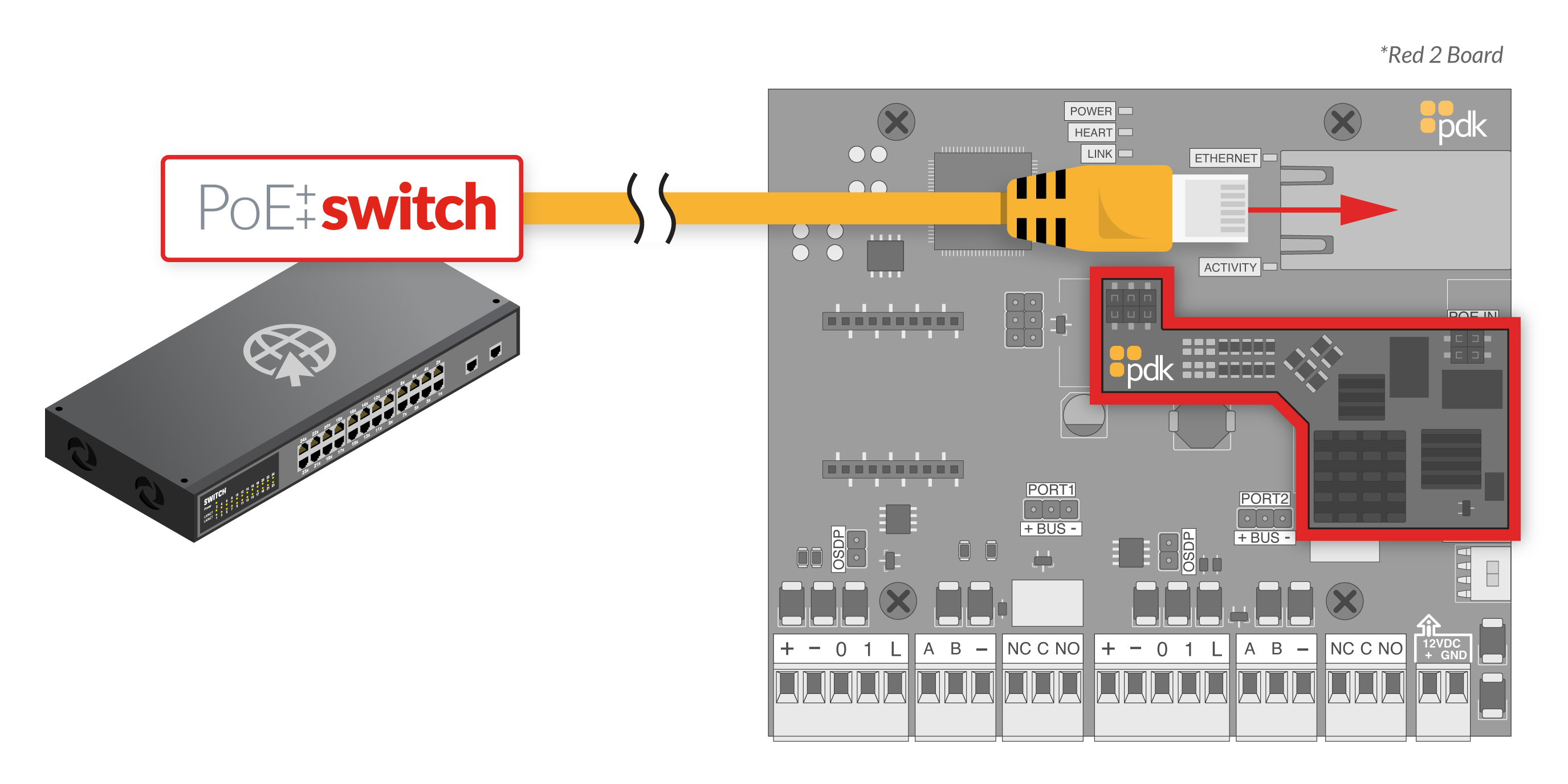

1. Ensure that the PoE module's pins align with the corresponding holes on the Red 1, Red 2, Red 4, or Aux 8 board. The images below show the module orientation.
2. Gently and carefully, press the module onto the board, ensuring it is fully seated and that all pins make good contact with their respective holes.

NOTE: PDK recommends disabling the Link Layer Discovery Protocol (LLDP) on any Power Sourcing Equipment (PSE) that powers PDK products over POE, POE+, or POE++. The PDK POE module does not support LLDP, and enabling it may cause the POE connection to work improperly or fail.

To enable Power Over Ethernet (PoE) on the Ethernet controller, plug the PoE module into the Red 1, Red 2, Red 4, or Aux 8 board.

Compliance Information

FCC Compliance     Trademark Acknowledgments

FCC Compliance

FCC Class A notice

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Modifications

Warning: Changes or modifications not expressly approved by ProdataKey could void the user’s authority to operate the equipment.

Suppliers Declaration of Conformity (SDoC)

Red PoE Module RMPOE2

FCC Compliance Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

ProdataKey

67 W 13490 S Suite 300, Draper, UT 84020

801.317.8802

Trademark Acknowledgments

ProdataKey, Prodata Key, prodatakey, PDK, Prodata, are registered trademarks or trademark applications of ProdataKey in various jurisdictions. All other company names and products are trademarks or registered trademarks of their respective companies. Permission to use, copy, modify, and distribute this software and its documentation for any purpose with or without fee is hereby granted, provided that the copyright notice appears in all copies and that both the copyright notice and this permission notice appear in supporting documentation.
