Red Readers v2 Data Sheet

  • Updated


Red Readers v2

Red High-Security Readers Data Sheet (PDF)

High-Security Readers

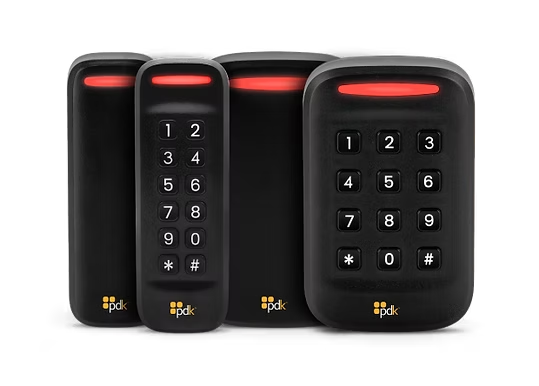

ProdataKey’s Red™ Readers v2 are high-security devices that offer the ultimate flexibility for your access control installs, with the ability to choose between Mullion, Mullion Keypad, Single-Gang, and Single-Gang Keypad form factors. With a sleek, professional look, secure OSDP connectivity, and a simplified install, the Red Reader v2 is ready to take your PDK system to the next level.



Specs

Mullion

Mullion Keypad

Single-Gang

Single-Gang Keypad

Part Number

RMPBV2

RMKPBV2

RGPBV2

RKPBV2

Read Range

2”

Input

125 kHz
13.56 MHz
Bluetooth BLE

125 kHz
13.56 MHz
Bluetooth BLE
PIN

125 kHz
13.56 MHz
Bluetooth BLE

125 kHz
13.56 MHz
Bluetooth BLE
PIN

Output

OSDP and Wiegand

Encryption

MIFARE® DESFire® EV2 and EV3

Temperature

-31° to 150° F and -35° to 66° C

Humidity

95%

Protection Rating

IP65

Voltage

5-24 VDC

Current

50mA at 12 VDC

Dimensions

5.25” x 1.81” x 0.73”

5.25” x 1.81” x 0.92”

5.25” x 3.29” x 0.73”

5.25” x 3.29” x 0.92”



Certifications

  • FCC
  • IC
  • CE
  • UL 294
  • IP65
  • UL94-V0
  • UL746C-F1

Manufacture's Limited Warranty

One to five-year warranty against defects in materials and workmanship. For full details, visit prodatakey.com/warranty



For more questions about PDK Red Readers v2, please contact PDK Tech Support.
