RMKPB2 — Mullion Keypad Reader High-Security (13.56 MHz) + Prox (125 kHz) + Mobile
Package Contents:
| You will need the following tools for installation:
|
1. Mounting Holes for Wall Plate
Drill two mounting holes at least 1.7” apart. Drill a 1/2“ hole in the center for the pigtail wire to pass through. Use the plate as a guide for drilling.
2. Install Wall Plate
Once the holes are prepared, screw the wall plate in using the provided #6 screws.
3. Wire the Cable to the Control Panel**

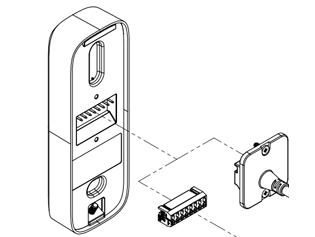

| Wiring | Wiring is done with the terminal block or the pigtail | |||
| Pin | Color | OSDP | Wiegand | |
| 1 | Red | 5-24VDC | *Pigtail connection not tested by UL | |
| 2 | Black | Ground | ||
| 3 | Green | Data 1 | Data 0 | |
| 4 | White | Data 0 | Data 1 | |
| 5 | Orange* | Red LED Control | ||
| 6 | Brown* | Tamper Out | ||
| 7 | Yellow* | Buzzer Control | ||
| 8 | Blue* | Green LED Control | ||
* These wires are optional when wired OSDP
Mullion Keypad | RMKPB2 | |
| Voltage | 5-24VDC |
| Max Current @5V, 12V, 24V | 205 mA / 101 mA / 53 mA |
| Temperature | UL294 Tested -35C to 66C and EN -40C to 70C and 95% humidity |
| Cable Length | Wiegand: 200 feet = 22 AWG, 300 feet = 20 AWG, 500 feet = 18 AWG OSDP RS485 (powered at 12VDC): 1000 feet = 22 AWG Twisted Pair |
**All wiring methods used shall be in accordance with the National Electrical Code, ANSI/NFPA 70 and local codes. Readers must be powered by a compatible UL Listed, limited power source, access control panel rated 5-24 VDC.

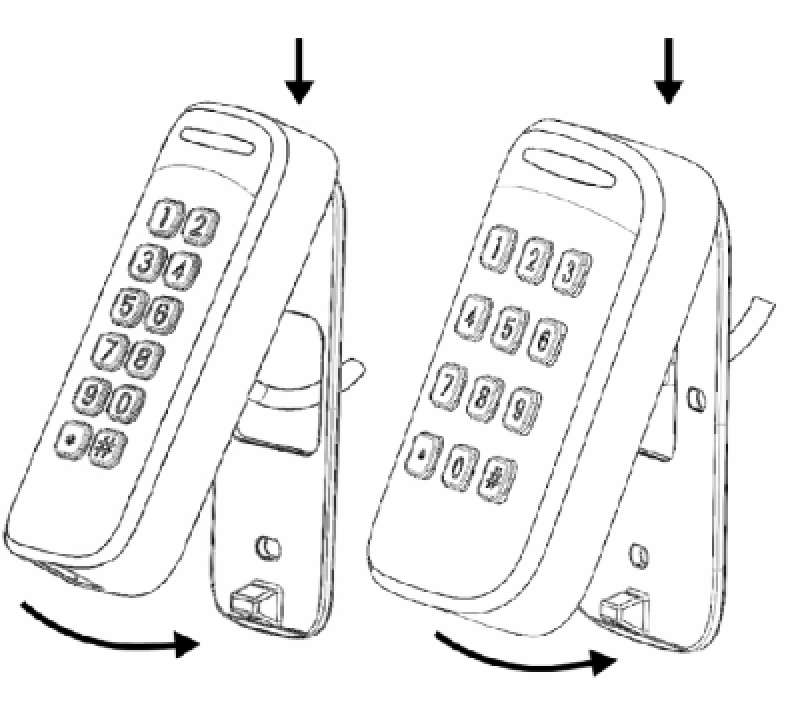

4. Slide the top of the reader down into the wall plate groove
| |
5. Hinging from the top, swivel the reader toward the wall plate
|
6. Push until the reader is flush with the wall plate *Screw holds will align when flush | |

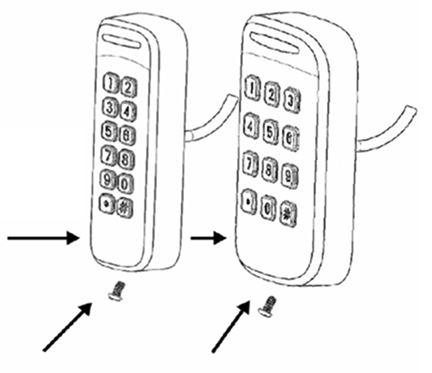

| 7. Install the security screw | |
The wall plate must be mounted with two of the provided screws, and the bottom security screw must be torqued to 8 inch-lbs.
8. Test the Reader
Power the reader and wait for the power-up LED and beep sequence to complete. Present a valid credential to the reader; the light-bar should turn green. If the test fails, check the wiring.
| Startup Sequence | ||
|---|---|---|
On power-up, the Red Readers display an LED and beeper sequence to indicate the reader type and its communication mode. The first sequence describes the RF Technologies. | ||
Red High-Security, Prox, and BLE | ||
Red/Green/Amber | ||
Second Sequence: | ||
The second sequence indicates the Wiegand / OSDP Mode | ||
Wiegand Only | OSDP Only | Auto-Detect |
Beep and Blink Red LED Once | Beep and Blink Green LED 2 Times | Beep and Blink Green LED 4 times |
| Wiegand Keypad Mode Setup | ||
|---|---|---|
| Within one minute of reader reset, enter the keypad config code: *88889999. The reader beeps three times, and the LED flashes green for each beep. Within 2 seconds of entering the keypad config code, press the corresponding key code below for the desired format. The reader then beeps three times, and the LED flashes green for each beep. | ||
4-Bit Format | 8-Bit Format | 26-Bit Format |
*4 | *8 | #077 |
*Keypad formats not tested by UL
Installation Tips
- When connecting the reader to a Wiegand panel, connect the green wire to Data 0 and the white to Data 1.
- When connecting the reader to an OSDP panel, connect the green wire to RS485A and the white wire to RS485B.
- For an OSDP system, verify communication between the panel and the reader before attempting to read a credential or use the keypad.
NOTES:
- If needed, returning to OSDP Auto-Detect Mode (Default Mode) requires assistance from Technical Support.
- These Readers require Systems with Cloud Node Software 2.4.x or higher.
Performance Levels
- Destructive Attack: I
- Line Security: I
- Endurance: I (125 kHz, 13.56 MHz), I (BLE)
- Standby Power: I
Approvals:
EN302291, EN301489, EN300330, IP65, UL294
Patents - US9558377, & US9747738B1
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Wavelynx Technology, LLC could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
For MS1 rating, equipment should not be installed above 2 meters. Consult the dealer or an experienced radio/TV technician for help. This telecommunication equipment conforms to NTC technical requirement. This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two
conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.
