Red Wireless Cylindrical Lock Door Prep

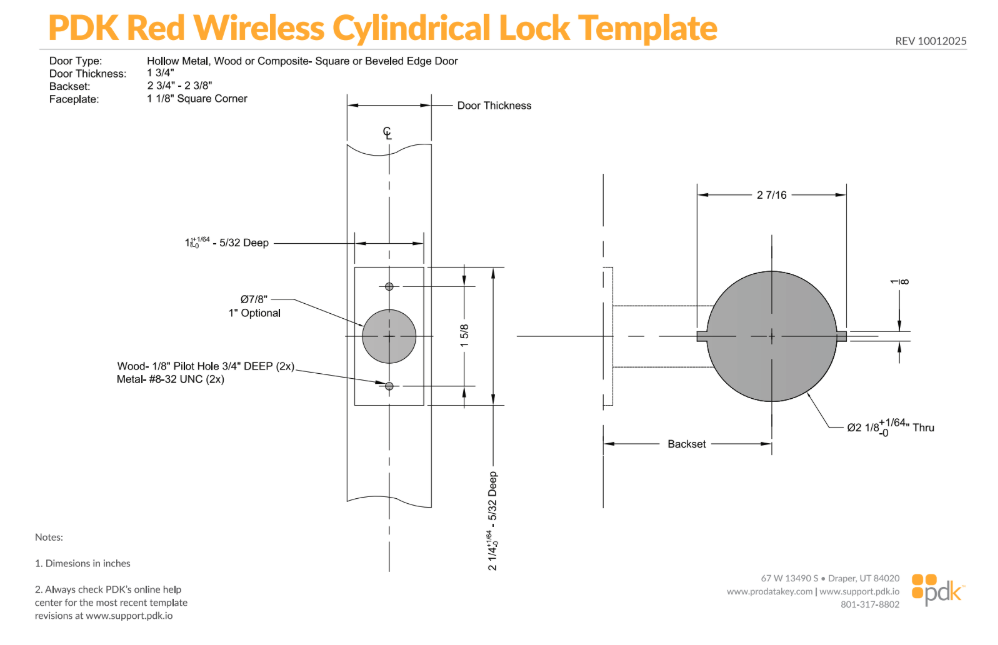

Red Wireless Cylindrical Lock Installation Template (PDF)

Door Type: Hollow Metal, Wood, or Composite - Square or Beveled Edge Door

Door Thickness: 1 3/4"

Backset: 2 3/8", 2 3/4", or 5" (Not Adjustable)

Faceplate: 1 1/8" Square Corner

Door Prep: Standard 161

Bore Hole: 2 1/8"
