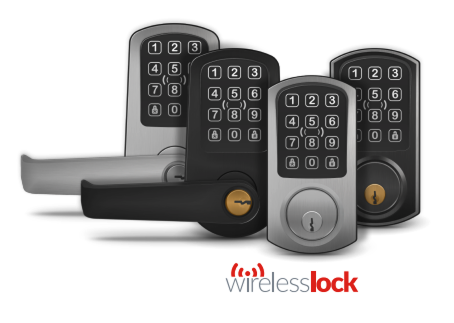

Red Wireless Locksets

Red Wireless Lock

Models

Cylindrical Lock PN: RLC2S, RLC2B

The PDK Red Locksets brings heightened security and convenience to any PDK.io 2.0 system. PDK's Red Locksets come in a cylindrical and a deadbolt variety, allowing for the ultimate flexibility in your installs.

Specifications

Communication

HubNet (BLE/2.4 GHz)
Encryption: TLS 1.3 bit
Wireless Range: 100 feet LoS

Environmental

Temperature: -20° ~ +60° C /-4° ~ +140° F
Humidity: 0 - 95% relative humidity non-condensing
IP Rating: IP65 (Exterior/Interior)

Compliance

FCC Part 15
ADA Compliance
Conforms to UL 10C
ANSI/BHMA Grade 2
TAA Compliant

Manufacturer's Limited Warranty

One to five-year warranty against defects in materials and workmanship. For full details, visit prodatakey.com/warranty.

For questions about the Red Wireless Lock, contact PDK Tech Support.

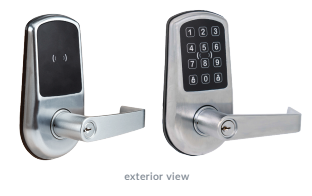

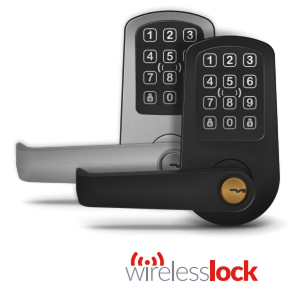

Cylindrical Locksets

Screenshot 2026-06-19 at 11.01.41 AM.png

Access Control Credentials

Screenshot 2026-06-19 at 11.00.20 AM.png

Features

Built from PDK's Grade 2 Cylindrical Lock
Designed for quick installation
4 AA Alkaline batteries last up to 2 years or 5V DC
Able to schedule specific access windows
Log and track access events and status
Enable auto lock/unlock for enhanced security
Battery status and low battery alerts

Specifications

Door Thickness	1-3/8” to 1-3/4”
Backset	2-3/8” • 2-3/4” (Standard) • 5”
Credentials	RFID • Smartphone • PIN • Mechanical Key
Keyways	Conventional • SFIC • High Security • UL437
Credential Compatibilities	Prox (Optional) • MIFARE DESFire EV1/EV2/EV3/Light • MIFARE Ultralight EV1/AES • MIFARE Classic
Communication	BLE 4.2 • BLE 5.2
Encryption	AES 256
Batteries Required	4 AA Alkaline Batteries
Operating Temperatures	-20C to 65C • 0-95% Humidity (Non-Condensing)
Certification & Compliances	FCC Part 15 • UL/cUL 10C 20-Minutes • Complies with ADA (Americans with Disabilities Act)
Modes	Standalone • Online
Finishes	606 (US4) • 613E • 622 (US19) • 626 (US26D)
Warranty	Two (2) year Mechanical / Two (2) year Electronics
Country of Origin	Assembled in USA
