High-Voltage Converter (HVC) Data Sheet

High-Voltage Converter (HVC) Data Sheet (PDF)

High-Voltage Converter

Power up the Cloud Node or single io in areas where high voltage power is available. The HV Converter accepts 90 to 264VAC and converts it to 12VDC at 2 Amps. It’s perfect for interfacing with the nearest high-voltage source and eliminating the need to run a power wire to controllers.

Model

High-Voltage Converter Part Number: HVC

Specifications

Input

• Voltage Range: 90~264VAC auto range
• Frequency: 47~63Hz
• Efficiency: The average efficiency at 25%, 50%, and 100% load ≥ 82%
• Input Current: 90~132Vac / 12V / 2A load ≥ 1A 180~264VAC / 12V / 2A load ≥ 0.5A

Output

• 12V 0A to 2A

Protection

• Auto recovery on over-current, over-temp, short, over-voltage

Environmental

• Temperature: 0º ~ +50º C 100% load, +60º C 80% load, +70º C 60% load
• Storage temp: -20 to 70˚
• Operating humidity: 10% - 90%
• Storage humidity: 10% - 95%

Electrical

• Input: 3.0KVac
• Output: 3.0KVacEC
• UL/cUL, TUV, CB by Demko, CCC, CE, KC, BSMI refer to EN 60950-1

Isolation

• CE: In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC

Reliability

• >100,000 hours at 100% load and normal inputs (25˚C / 77˚F)

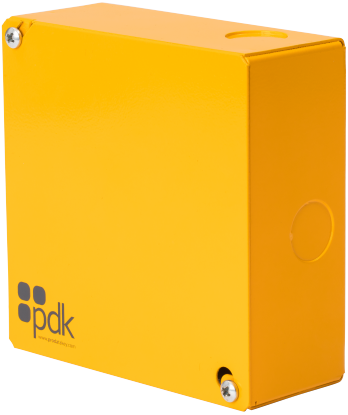

Enclosure

• Dimensions (W x H x D) 5” x 5” x 2”
• Metal lockable security can (indoor use only)

Weight

• HVC - 1.37 lbs (22 oz)

Manufacturer’s Limited Warranty

For full details on our one- to three-year warranty against defects in materials and workmanship, visit prodatakey.com. Visit ProdataKey Support to access installation and support resources.
