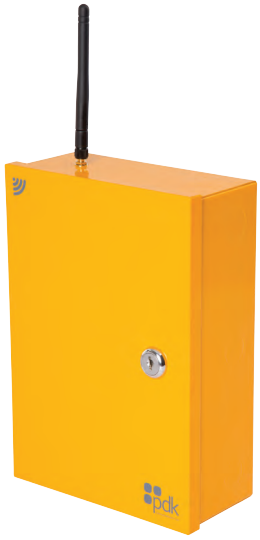

Cloud Node Overview

Cloud Node Part Number: CN

Versatile. Cost Effective.

The Cloud Node is the main system panel and is the gateway to the pdk io cloud platform. It also includes a single io (one door controller) to get your first door up and running. Each site requires one Cloud Node with an Internet connection or optional cellular device. The Cloud Node then communicates with all local door controllers while storing all data on-site in case of an Internet outage. Ultimate flexibility is achieved by using Ethernet, PoE, and wireless controllers with the Cloud Node.

Cloud Node Features

Connects to pdk.io Cloud Platform

Pdk.io provides the most powerful and streamlined access control platform on the market. Experience full configuration and management from any internet-connected device. Manage users, create groups, open and close doors, set system rules, get text & email alerts, and more, all in a single app.

Plug n’ Play Connectivity

All io devices were designed to be plug n’ play. That means they’re super easy to install right out of the box. It’s easy to add in any io device no matter how large the job is, and you can quickly scale a system to any size. The Cloud Node can connect to up to a thousand doors on a single platform.

Perfect for Single or Multi-Door Installs

In addition to connecting to our cloud platform, the Cloud Node also doubles as a single-door controller. It’s the only device you need for a single-door installation. Just connect to the network and door hardware for a streamlined installation.

Upgrade Any System

Backward compatible hardware makes system upgrades and takeovers a breeze. Simply replace any existing panel with a Cloud Node and io controllers, then connect it to the network to instantly bring the system into the cloud.

Fully Supervised

Never be caught off guard again. Pdk.io intelligently monitors the network and wireless connectivity of each controller in your system and alerts you if any issues arise.

Automatic Software Updates

Experience future-proof access control that’s always secure, and up-to-date. The Cloud Node updates automatically as new features and security enhancements become available.

Specifications

Connections

Removable screw-down terminals
Power Supply Input
Industrial-grade 2A Form-C Relays (1 Door / 1 Aux)
Reader Input (2)
Input A (Door Position Sensor)
Input B (Request To Exit)

Communication Options

Ethernet
WiMac Wireless Mesh (2.4 GHz / 802.15.4)
Encryption: AES 128-bit
Wireless Range: 1 Mile Line-of-Sight, 450 ft. indoor average

Environmental

Temperature: -4º ~ +140º F or -20º ~ +60º C
Humidity: 0 - 95% relative humidity non condensing

Enclosure

Dimensions (W x H x D) 6.5” x 9.25” x 3”
Metal lockable security can (indoor use only)

Weight

2.9 lbs (46.4 oz)

Compliance

Conforms to UL 294

Made in USA

Requirements

NOTE: You must have a Cloud Node to connect to pdk.io and be able to add door controllers. To program the Cloud Node you must have a PDK.io account. The Cloud Node must be online (connected to the Internet) in order to program it.

Power

12-24V AC/DC Input
12VDC 1.5A *Battery-Backed Output
Powers readers and other door hardware directly from the bus
15VDC 2A wall-wart Power Supply (included)

*Battery not included

Recommended Battery

12VDC 1.2 to 5Ah lead acid

Manufacturer’s Limited Warranty

One to three-year warranty against defects in materials and workmanship. For full details, visit prodatakey.com.

NOTE: If two Cloud Nodes are in the same vicinity (even within a mile) and you are unable to detect a wireless device on the nearest Cloud Node, check the other Cloud Node in Discovery to see if it connected to the wrong Cloud Node.

Cloud Node Data Sheet
