Eight io Power Installation Overview

(A) 12VDC Power Supply - Use the positive (+) and negative (-) 12VDC output from the Altronix SMP10 power supply to the corresponding eight io positive (+) and negative (-) DC power input for devices using 12VDC that will be connected to the eight io (10 Amp Maximum).

When using 24VDC, the controller MUST be powered with 12VDC to power readers, REX devices, etc. If 24VDC is required for other necessary devices, provide a second power supply with 24VDC which will then be fed into the common on each port relay for powering 24VDC devices.

NOTE: An Altronix SMP10 power supply is required for the proper operation of the eight io controller. It is sold separately and NOT included with the eight io and is thus the responsibility of the installer/dealer. If required, documentation for the SMP10 is available at:

https://www.altronix.com/products/SMP10

The MAXIMUM pass-through limit as a “dry contact” is 24 volts at 2 amps!

IMPORTANT: Jumpers must remain OFF on ports powering 24VDC hardware. Power to the eight io from the Altronix SMP10 power supply MUST be 12VDC ONLY. DO NOT power the eight io board with 24VDC.

(C) Battery Backup - A backup battery connected to the power supply is HIGHLY recommended to prevent system failure in the event of an AC power loss. Connect the battery’s positive (+) and negative (-) terminals to the corresponding Altronix SMP10 power supply positive (+) and negative (-) DC battery input as shown above. The Altronix SMP10 includes a charging circuit for battery backup.

• Recommended Battery Type: 12VDC 5.0 Ah lead-acid battery
• Recommended Battery Size: 4” (L) x 3.5” (H) x 3” (W)
• Max Battery Pocket Dimensions: 6” (L) x 5” (H) x 4” (W)

NOTE: For UL certified wire installations, all wire running from an eight io door controller to a lock, strike, or reader device MUST be less than 98.5 feet (30 meters).

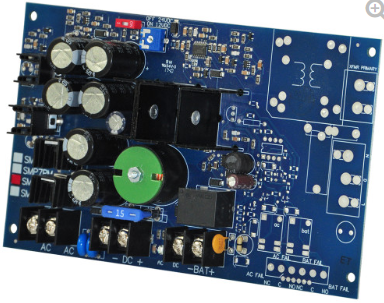

Altronix Power Supply

The Altronix SMP10 power supply/charger converts low voltage AC input into 12VDC or 24VDC output at 10A of continuous supply current. This general-purpose power supply has a wide range of applications for access control, security, and CCTV system accessories that require additional power.

Altronix SMP10 Specifications

Input

• 24/28VAC

Output

• 12VDC or 24VDC selectable output
• 10A supply current
• Filtered and electronically regulated outputs
• Short circuit and thermal overload protection

Battery Backup

• A backup battery is HIGHLY recommended to prevent system failure in the event of an AC power loss.
• Built-in charger for sealed lead acid or gel type batteries
• Zero voltage drop when switching over to battery backup

NOTE: For UL certified wire installations, all wire running from an eight io door controller to a lock, strike, or reader device MUST be less than 98.5 feet (30 meters).

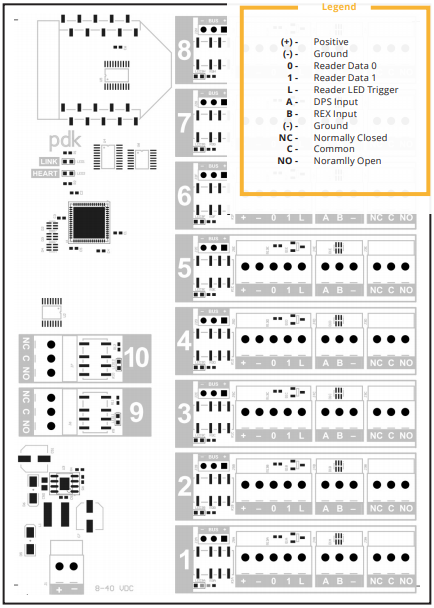

Door Controller Board Legend



Connectors - Ports 1 to 10

This section describes the eight io technical specifications.

Power Port

2-Pin Connector	PIN	Status
Controller Power Input +	1	12VDC Positive
Controller Power Input -	2	12VDC Negative



5-Pin Connectors

5-pin terminal block supporting Wiegand protocols for communication with the reader.

5-Pin Connector	PIN	Status
Power Output +	1	Positive 12VDC Out
Power Output -	2	Negative 12VDC Out
Reader Data - 0	3	Wiegand Reader Input Data 0
Reader Data - 1	4	Wiegand Reader Input Data 1
Reader LED Trigger - L	5	Reader LED Output Trigger



3-Pin Connectors - A B -

3-Pin Connector	PIN	Status
DPS Input - A	1	Door Position Switch or assignable
REX Input - B	2	Request to Exit or assignable Output 0 (NO or NC and + or - selectable)
Power Output -	3	Negative 12VDC



Door Position Switch (DPS) Install



3-Pin Connectors - NC C NO

3-Pin Connector	PIN	Status
Normally Closed - NC	1	Normally closed connection for main form C relay with optional jumper configuration for wet positive or negative output.
Common - C	2	Common connection for main form C relay.
Normally Open - NO	3	Normally open connection for main form C relay with optional jumper configuration for wet positive or negative output.



Ports 9 & 10

3-Pin Connector	PIN	Status
Normally Closed - NC	1	Normally closed connection for main form C relay with optional jumper configuration for wet positive or negative output.
Common - C	2	Common connection for main form C relay.
Normally Open - NO	3	Normally open connection for main form C relay with optional jumper configuration for wet positive or negative output.
