Easily add single doors to a Cloud Node. The single io controller is used for adding doors to a Cloud Node one door at a time or expanding an existing pdk system. With the option of network, PoE, or wireless connectivity, the single io is the most flexible controller on the market. Each unit is equipped with a fully supervised power circuit that monitors input, output, battery voltage, and overall controller health. Users receive important system notifications via text and email. The single io is often mounted at or above the door to minimize the amount of wire to be pulled.

Single io Features

Scalability

Whether you need three doors or a thousand, the single io controller allows you to scale the system to just the right size. In addition, with the flexibility of our WiMAC (Wireless Mesh Access Control), you can add more doors anytime, or anywhere.

Plug n’ Play Connectivity

All io devices were designed to be plug n’ play. That means they’re easy to install right out of the box. It’s simple to add in any io device no matter how large the job is, and you can quickly scale a system to any size. A Cloud Node can connect to as many as a thousand doors on a single platform.

Two Reader Inputs

Two reader inputs are ideal for applications where both read-in and read-out is a security requirement. Know exactly when users enter and exit a premise. The second reader input can also be assigned to trigger automated events.

Fully Supervised

Never be caught off guard again. Pdk.io intelligently monitors the network and wireless connectivity of each controller in your system and alerts you if any issues arise.

Unparalleled Wireless Range

With WiMAC, experience up to a one-mile line of sight, and 450 ft. (on average) indoor range. Every WiMAC device installed extends and strengthens the self-healing wireless mesh network. WiMAC is unmatched in security with a proprietary signal and AES encryption.

Network, PoE, Wireless

Choose from three flexible connectivity options that fit any application. The single io is built for ultra-low bandwidth consumption and easily connects to existing or dedicated networks. Easily expand a system’s wireless coverage (via network) using the Ethernet gateway.

NOTE: When using a Single io Power Over Ethernet (PoE), a 30 watts POE injector is required to power the Single io.

Installation

IMPORTANT: A ProdataKey Cloud Node is required to operate the single io.

This manual provides instructions for installing the ProdataKey single io controller. Before you begin the installation, read the instructions thoroughly. Make sure you have read and understand the Safety Information.

WARNING: Disconnect power before working with the ProdataKey product. DO NOT mount the product while power is applied. Always apply power at the end of the installation after verifying wiring connections are correct; incorrect wiring could cause damage to the product.

Package Contents

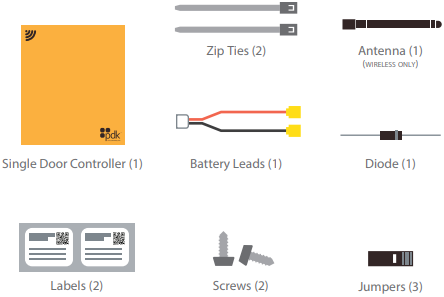

Single io includes a door controller, power supply, and a wireless or Ethernet communication module pre-mounted in the box enclosure.

Single io controller - Either Ethernet, Wireless, or Power Over Ethernet (1)
Antenna (1)
Battery Leads (1)
Jumpers (3)
Diode (1)
Labels (2)
Zip Ties (2)
Enclosure Screws (2)
QuickStart Guide (1)

Recommended Tools

Drill and the appropriate size drill bit
Phillips / Slotted screwdriver (to match screw heads)
Wall anchors (2) if mounting to drywall
Pencil (to mark hole positions on the mounting surface)
Wire crimper/stripper

Specifications

Connections

Removable screw-down terminals
Power Supply Input
Industrial-grade 2A Form-C Relays (1 Door / 1 Aux)
Reader Input (2)
Input A (Door Position Sensor)
Input B (Request To Exit)

Communication Options

Ethernet, PoE, or WiMAC Wireless Mesh (2.4 GHz / 802.15.4)
Encryption: AES 128-bit
Wireless Range: 1-mile line of sight / 450 ft. indoor average

Environmental

Temperature: -20º ~ +60º C / -4º ~ +140º F
Humidity: 0 - 95% relative humidity non condensing

Enclosure

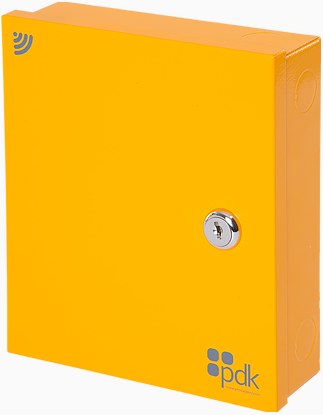

Metal lockable security can (indoor use only)
Dimensions: (W x H x D) 6.5” x 7.5” x 2”
Lock sold separately

Weight

1.65 lbs (26.4 oz)

Compliance

Conforms to UL 294 (excludes 1DPOE)

Requirements

Power

12-24V AC/DC Input
12VDC 1.5A battery-backed output*
The single io only provides 12 volts out, even though the board can take 12VDC or 24VDC in.

NOTE: A backup battery is HIGHLY recommended to prevent system failure in the event of an AC power loss.

*Powers readers and other door hardware directly from the bus (Battery not included)

Power Supply

15 VDC 2A wall-wart power supply (included)

Recommended Battery

12VDC 1.2 to 5 Ah lead-acid

Manufacturer’s Limited Warranty

One to three-year warranty against defects in materials and workmanship. Full details at prodatakey.com.

Mounting Instructions

Before you begin the installation, read the instructions thoroughly. Make sure you have read and understand the Safety Information.

Please follow these mounting suggestions:

To optimize signal strength, mount the single io and Cloud Node above the door frame or higher where possible.
Strategic placement of the single io will optimize wireless communication with the controllers.
Install the single io and Cloud Node in an environmentally controlled and secure area.
Ensure the antenna (WiMAC Wireless version) is free from obstructions such as close proximity to metal beams and pillars, and high-power cables that may cause wireless interference.

These instructions allow you to easily fasten the box properly and securely to a wall surface. Prior to beginning, ensure you have the package contents, tools, and necessary materials for the installation on an appropriate surface (drywall, wood, etc.).

Use the single io box to mark the hole positions on the wall and drill holes into the surface. If mounting onto drywall, insert the anchors into the holes to secure the screws to the surface.
Align the can’s holes to the holes in the wall surface and mount the controller box with the screws so the box is securely fastened to the wall.
If the communication method is wireless, connect the antenna to the RP-SMA and mount the antenna to the top of the enclosure. See Antenna Mounting Best Practices for additional information.

NOTE: For UL certified wire installations, all wire running from a single io door controller to a lock, strike, or reader device must be less than 98.5 feet (30 meters).

Strip the wire ends as required to expose the wiring.
Install the reader and attach the wires meeting your reader configurations. See Wiring Diagrams for additional information.

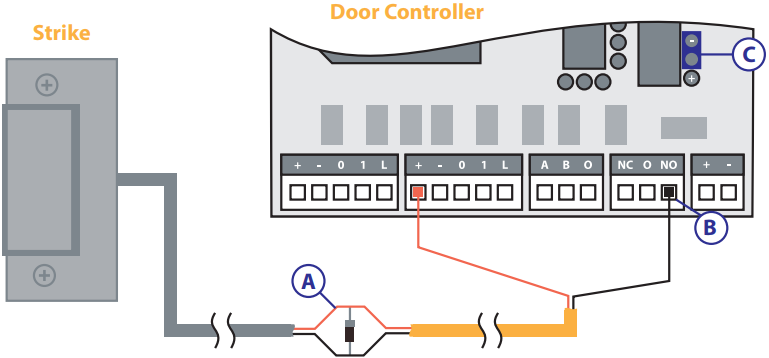

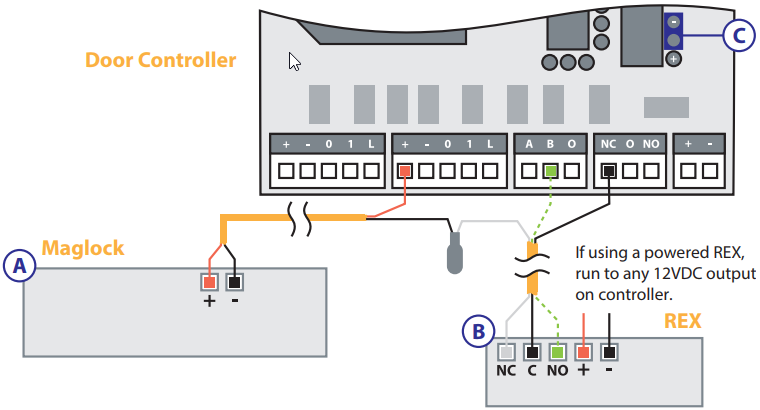

Connect the wires between the door controller and locks and any other devices.

NOTE: For information about the connectors and their specifications and diagrams, refer to the appropriate wiring diagrams: Maglock, Door Strike (Fail Secure), and Door Strike (Fail Safe).

For devices that have been configured in the product’s hardware configuration pages, use the hardware pin charts as a guide on how to connect the pins. For information about hardware configuration and pin charts, see the Connectors section.

For information about connecting other wires, such as power, to third-party locks, readers, and other devices, refer to the respective manufacturers’ instructions.

Battery backup is HIGHLY recommended on all ProdataKey hardware. Add a 12VDC 1.5 Ah battery, attaching the wires from the battery to the circuit board battery terminal.

Connect the included Intertex 14.0VAC 2000mA Class 2 transformer to the input terminals on the circuit board (A/1). From the Intertex transformer, connect a red 18/2 wire from the positive (+) DC terminal to the positive (+) Cloud Node connector; connect a black 18/2 wire from the transformer’s negative (-) DC terminal to the negative (-) Cloud Node connector (A/1 in the two illustrations above). This connection is NOT polarity sensitive. DO NOT connect any other devices to the Intertex transformer.

NOTE: DO NOT power the transformer and backup battery until ALL wiring is completed and verified; incorrect wiring could cause damage to the product.

For devices that have been configured in the product’s hardware configuration pages, use the hardware pin chart as a guide on how to connect the pins. For information about hardware configuration and pin charts, see the Connectors section.

For information about connecting other wires, such as power wires to third-party locks, readers, and other devices, see the respective manufacturers’ instructions.

If you have any questions or need help with installation or with any of the hardware described in this manual, please feel free to contact the ProdataKey Technical Support staff.

WiMAC Wireless Antenna Mounting Best Practices

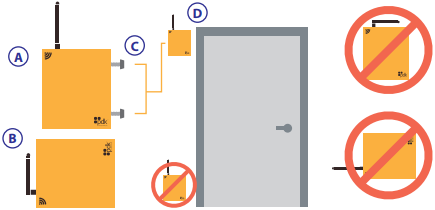

The wireless reach of the antenna spreads out in a horizontal, donut-like pattern. Consider the controller’s antenna direction. Because the controller can be mounted horizontally or vertically, there are some best practices to consider regarding the antenna.

(A) - Vertical - When mounting the controller vertically be sure the antenna is unobstructed and pointing straight for the best signal.

(B) - Horizontal - When mounting the controller horizontally, turn the antenna 90 degrees for the best signal.

(C) - Door - To finalize installation, secure door with included screws or use a can lock.

(D) - Positioning - The best signal is achieved by mounting controllers at the top of the door or higher, or in a drop ceiling.

The antenna’s wireless signal strength has a one-mile line-of-sight range, or an indoor average of 450 feet, depending on the building’s construction type.
Install the single io controller and Cloud Node in an environmentally controlled and secure area.
Be mindful of the building’s construction and the controller’s location; positioning the antenna around metal or near high voltage can impair signal strength.
Installing multiple wireless door controllers in close proximity to each other is NOT ideal. It can impair signal strength. For wireless controllers, a MINIMUM distance of 15 feet (or an ideal -35 to -60 dBm signal strength*) between controllers is recommended.

* Signal strength is represented in -dBm (decibel-milliwatts) format (0 to -100). dBm is a unit of level used to indicate a power ratio expressed in decibels with reference to one milliwatt (mW). This is the power ratio in decibels of the measured power.

Power

Installing Single io Power

Power Supply

Connect the positive (+) and negative (-) terminals of the included Intertex 14.0 VAC 2A Class 2 transformer to the corresponding positive (+) and negative (-) input terminals on the single io circuit board. DO NOT connect any other devices to the transformer.

NOTE: DO NOT power the transformer and backup battery until ALL wiring is completed and verified; incorrect wiring could cause damage to the product.

Power Supply Wiring Diagram

NOTE: DO NOT share power with other devices off of the same power supply, such as a Cloud Node.

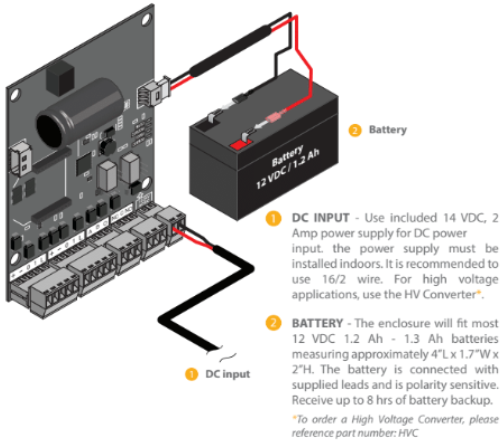

(A/1) Transformer (DC Input) - From the Intertex 14VAC 2Amp Class 2 transformer, connect a red 18/2 wire from the transformer’s positive (+) DC terminal to the positive (+) connector; connect a black 18/2 wire from the transformer’s negative (-) DC terminal to the negative (-) connector (as shown in the illustrations above). DO NOT connect any other devices to these transformer terminals.

NOTE: Mounting the included transformer bracket:

Determine the electrical outlet to be used for powering the transformer.
Remove the center mounting screw from the electrical outlet faceplate.
Remove the bracket’s protective adhesive foam backing and carefully align the bracket’s mounting hole with the outlet faceplate hole. Firmly press and hold the adhesive foam tape against the faceplate for several seconds.
Replace the faceplate’s mounting screw with the included longer screw to secure the bracket and the outlet faceplate.

NOTE: The power supply must be installed indoors.

(B/2) Battery - A backup battery is HIGHLY recommended to prevent system failure in the event of an AC power loss. Use a 12VDC 1.2 to 1.5Ah rechargeable lead-acid battery. When a backup battery is not used, a loss of AC power will cause a loss of output voltage.

Battery

Using a battery that meets the following specifications will provide at least 30 minutes of backup power in the event of an AC power loss.

Recommended Battery Type: 12VDC 1.2 to 1.5Ah lead-acid battery.
Typical Battery Size: 4” x 1.8” x 2.5” (L H W)
Approx. Battery Compartment Dimensions: 6” x 3.5 x 1.9” (L H W)

Battery backup is HIGHLY recommended on all ProdataKey hardware. A backup battery must be used to prevent system failure in the event of an AC power loss.

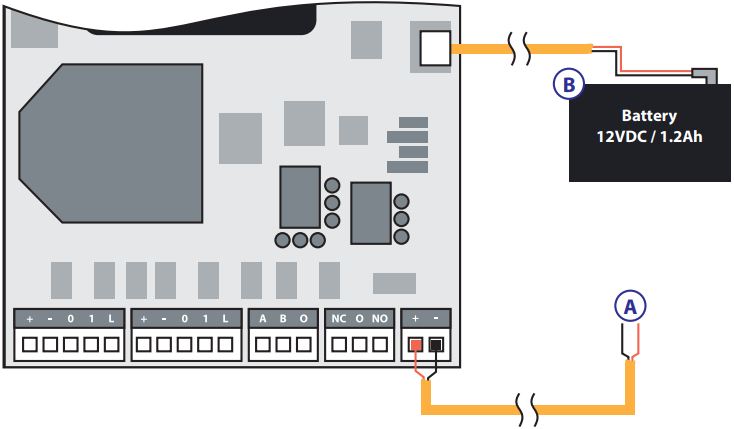

Battery Wiring Diagram

NOTE: DO NOT power the transformer or battery connections until ALL wiring is completed and verified.

NOTE: AFTER all single io wiring has been completed and checked, and a backup battery is installed, you may plug the transformer into the bracketed power outlet and connect the backup battery.

If you have any questions or need help with installation or with any of the hardware described here, please feel free to contact the ProdataKey Technical Support staff.

Battery Maintenance

Check the battery regularly and replace only with an identical battery or a ProdataKey recommended battery. Dispose of used batteries according to local regulations or the battery manufacturer’s instructions.

IMPORTANT: There is a risk of a battery explosion if the battery is incorrectly replaced.

Optional Battery Enclosure

The addition of an extra enclosure installed next to this enclosure is an option as long as the additional battery is connected with conduit and proper battery terminal end connectors.

Wireless / Ethernet Connections

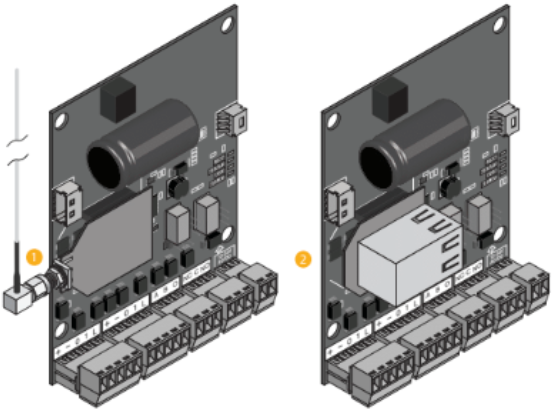

(1) - Wireless WiMAC - All wireless connections come pre-connected. If you find the antenna whip is off or your signal is weak, you will want to check this connection.

NOTE: If two Cloud Nodes are in the same vicinity (even within a mile) and you are unable to detect a wireless device on the nearest Cloud Node, check the other Cloud Node in Discovery to see if it connected to the wrong Cloud Node.

(2) - Ethernet - Ethernet connected gate controllers accept RJ45 connections. When used, the controller will be assigned a DHCP address. Controllers can be assigned a static IP address by using the Lantronix network utility software referred to below.

NOTE: By default, wireless devices use what is known as DHCP (Dynamic Host Configuration Protocol), which automatically assigns a dynamic (temporary) IP address for a network. For single io Ethernet connections, a static (permanent) IP address is REQUIRED; a static IP address is not required for Cloud Nodes.

Static IP Address

To set up a static IP address for an Ethernet device, the third-party Lantronix DeviceInstaller application can be used. The suggested static IP address can be obtained from your IT manager or network administrator. The default dynamic IP address that is already assigned to the device by the router may also be used and converted to a static IP address.

Download the Lantronix DeviceInstaller (stand-alone version) at the Lantronix website for the necessary zip file (and DeviceInstaller Help, if necessary) to install and use this application.

NOTE: If or when you set a static IP on a Cloud Node and the Cloud Node does not come back online immediately, give it a few minutes. If it still does not come online then power cycle the Cloud Node for approximately 10 seconds; the Cloud Node should come back online.

When adding an Ethernet door controller, ensure that when you are using the Lantronix device installer app that your WiFi is turned off and you are hard-wired from your laptop to the customer’s network, otherwise you will not be able to see the devices.

Components

Additional Listed System Components

Cloud Node	Provides unlimited cardholders, years of event storage, battery backup, and auto data backup. Cloud Node Part Number: CN Cloud Node Server Edition Part Number: SVR
Eight io	Run controls for multiple doors and/or build a larger network. Also used for legacy system change-out. Pro Wireless Part Number: 8DW Ethernet Part Number: 8DE
Proximity Reader	Must be UL 294 listed
Proximity Credentials	Must be UL 294 listed
Electronic Locking Hardware	Must be UL 294 listed

NOTE: For information about other products and services, see https://www.prodatakey.com > Products

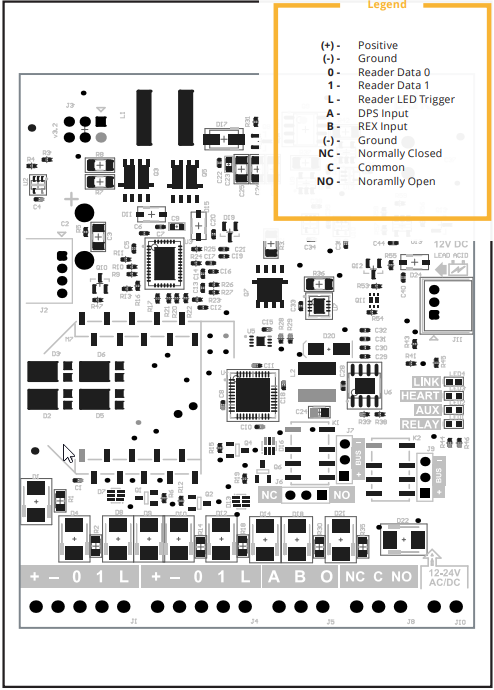

Single io Door Controller Board Legend

Connectors

This section describes the single io connector’s technical specifications.

Primary & Secondary Reader Connectors

5-pin terminal block supporting Wiegand protocols for communication with the reader.

NOTE: DO NOT power the transformer and backup battery until ALL single io wiring is completed and verified; incorrect wiring could cause damage to the product. Check polarity and voltage carefully prior to powering the controller.

NOTE: For UL certified wire installations, all wire running from a door controller to a lock, strike, or reader device must be less than 98.5 feet (30 meters).

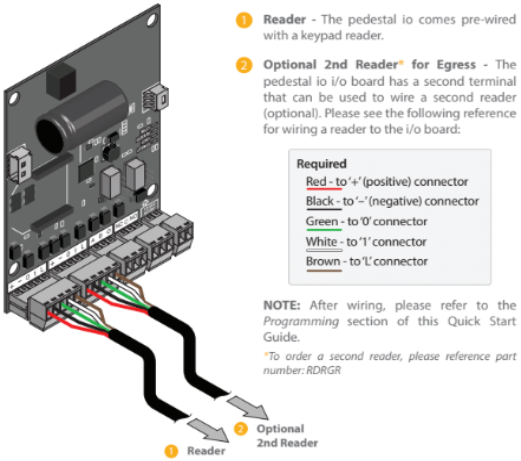

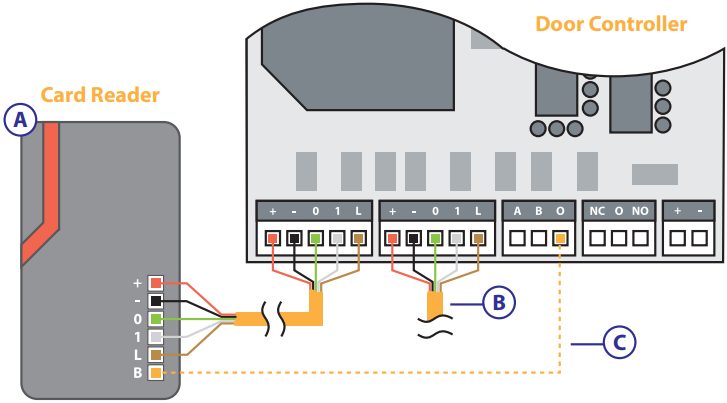

(A/1) Main Reader - Mounted at the door with 22/5 wire running to the door controller. Wire the reader to the controller as shown above.

Red: to + (positive) connector
Black: to - (negative) connector
Green: to 0 (zero) connector
White: to 1 connector
Brown: to L connector

(B/2) Optional 2nd Reader for Egress - The Single io board has an additional terminal that can be used to wire an optional second reader. If a second reader is used, it should be mounted at the door with a 22/5 or 22/6 wire running to the controller as shown above.

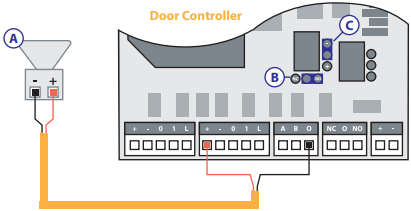

(C) Piezo (buzzer) - Optional piezo trigger wiring for a door prop alarm connects to (O) on the AUX relay (shown above). Two jumpers are required: one on the Bus center pin and negative (-) (as shown below), another on the NO (Normally Open) and the center pin. The piezo buzzer can be controlled with software rules. Also refer to AUX Device Output.

NOTE: Use the following pin references for the required reader wiring to the i/o board.

5-Pin Connector A

5-Pin Reader Connector A	PIN	Notes
Power Output +	1	Positive 12VDC Out
Power Output -	2	Negative (Ground) 12VDC Out
Reader Data - 0	3	Wiegand Reader Input Data 0
Reader Data - 1	4	Wiegand Reader Input Data 1
Reader LED Trigger - L	5	Reader LED Output Trigger

5-Pin Connector B (Optional)

5-Pin Reader Connector B	PIN	Notes
Power Output +	1	Positive 12VDC Out
Power Output -	2	Negative (Ground) 12VDC Out
Reader Data - 0	3	Wiegand Reader Input Data 0
Reader Data - 1	4	Wiegand Reader Input Data 1
Reader LED Trigger - L	5	Reader LED Output Trigger

3-Pin Connector - A / B / O

3-Pin Connector	PIN	Notes

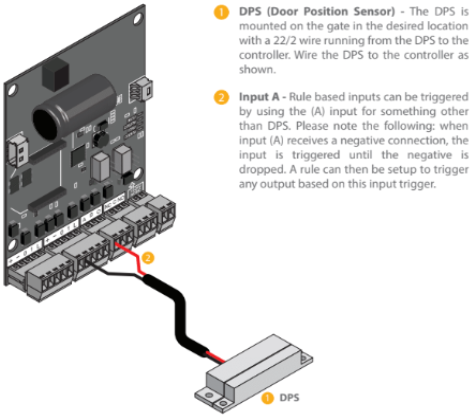

DPS Input - A	1	Door Position Switch or assignable
REX Input - B	2	Request to Exit or assignable. Output 0 (NO or NC and + or - selectable)
Output - O	3	Trigger out with jumper configuration for wet positive (+) or negative (-) output.

3-Pin Connector - NC / C / NO

3-Pin Connector	PIN	Notes
Normally Closed - NC	1	Normally closed connection for main form C relay with optional jumper configuration for wet positive (+) or negative (-) output.
Common - C	2	Common connection for main form C relay.
Normally Open - NO	3	Normally open connection for main form C relay with optional jumper configuration for wet positive (+) or negative (-) output.

Power Port Connector

Power into the controller board is non-polarity sensitive, meaning that the positive (+) connection (red wire) may go to either of the two posts.

2-Pin Connector	PIN	Notes
Controller Power Input +	1	12VDC Positive
Controller Power Input -	2	12VDC Negative

Wireless LED Indicators

Wireless LED indicators are shown on the controller board for LINK, HEART, AUX, and RELAY.

LED	Light	Status
LINK	Solid on	No connection
	Off	Connection is Good
HEART	Flashing	Normal operation.
	Solid On	Possible serious hardware function. Call Support.
AUX	Solid On	Relay actuated, active.
	Solid Off	Relay is at rest, not active.
RELAY	Solid On	Relay actuated, active. (Normally Open, O connection)
	Solid Off	Relay is at rest, not active. (Normally Closed, C connection)

Ethernet LED Indicators

Ethernet LED indicators are shown on the controller board for LINK, HEART, AUX, and RELAY.

LED	Light	Status
LINK	Solid On	No Connection
	Off	Connection is Good
HEART	Flashing	Normal operation.
	Solid On	Possible serious hardware function. Call Support.
AUX	Solid On	Relay actuated, active.
	Off	Relay is at rest; not active.
RELAY	Solid On	Relay actuated, active. (Normally Open, O connection)
	Off	Relay is at rest; not active. (Normally Closed, C connection)

Installing a Reader to a Door Controller

Wiring

Recommended Wiring Dimensions

Use 26 gauge minimum, 18 gauge maximum, stranded for general wiring. Wiring methods shall be in accordance with the National Electrical Code, ANSI/NFPA 70. Follow these recommended wiring sizes.

Wiring For	Recommended Dimensions
Power Input	18 gauge 2 conductors (18/2) wire
Reader	22 gauge 6 conductors (22/6) wire
Strike / Maglock	18 gauge 2 conductors (18/2) wire
REX	18 gauge 4 conductors (18/4) wire

Primary & Secondary Reader Wiring Diagram

NOTE: For UL certified wire installations, all wire running from a single io door controller to a lock, strike, or reader device must be less than 98.5 feet (30 meters).

(A/1) Main Reader - Mounted at the door with a 22/5 or 22/6 wire running to the door controller. Wire the reader to the controller as shown above.

NOTE: Use the following reference for wiring a reader to the i/o board. Required:

Red: to + (positive) connector
Black: to - (negative) connector
Green: to data 0 (zero) connector
White: to data 1 connector
Brown: to LED connector

(B/2) Optional Secondary Reader - If an optional second reader is used, it should be mounted at the door with a 22/5 or 22/6 wire running to the controller as shown above.

(C) Piezo (buzzer) - Optional piezo trigger wiring for a door prop alarm connects to (O) on the AUX relay (shown above). Two jumpers are required: one on the center pin and negative (-) (as shown here), another on the NO (Normally Open) and the center pin. The piezo buzzer can be controlled with software rules. Also, refer to AUX Device Output.

If you have any questions or need help with installation or with any of the hardware described in this manual, please feel free to contact the ProdataKey Technical Support staff.

AUX Device Output Wiring Diagram

(A) AUX Device - An AUX device can be connected to the door controller to be triggered based on specified events in the system. The most typical is a door prop alarm. Connect this device as shown above. The O (AUX Output) uses board power to trigger the device so be sure correct amperage and voltage are available. If a full relay is needed, an AUX relay can be connected to the (O) output to be triggered.

(B) NC/NO Jumper - If the device connected requires power to be triggered then place the jumper between the center pin and NO (Normally Open). If the device requires dropping power to be triggered then place the jumper between the center pin and NC (Normally Closed).

(C) +/- Jumper - If the device needs negative (-) on the trigger leg then place the jumper between the center pin and (-). If the device needs positive (+) on the trigger then place the jumper between the center pin and (+).

Piezo Device to Door Controller Instructions Video

Maglock / Exit Device Wiring Diagram

A magnetic lock, or maglock, is a locking device that consists of an electromagnet and an armature plate. Locking devices can be either fail safe or fail secure. The electromagnet portion of the lock is typically attached to the door frame; a mating armature plate is attached to the door. The two components are in contact when the door is closed. When the electromagnet is energized, a current passing through the electromagnet causes the plate to attract the electromagnet, creating a locking action.

Installing a REX and Maglock to a Door Controller

NOTE: For UL certified wire installations, all wire running from a single io door controller to a lock, strike, or reader device must be less than 98.5 feet (30 meters).

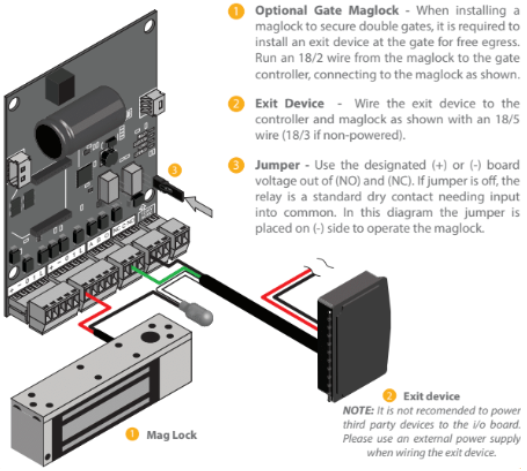

(A/1) Maglock - When installing a maglock, it is required to install an electronic REX (Request to Exit) device as well as a mechanical button at the same door for free egress (in case of electrical failure). Run 18/2 wire connections from the maglock to the door controller, as shown above.

NOTE: If possible, when installing a maglock, avoid using and wiring up the bond sensor at the maglock for a DPS. A bond sensor is a built-in DPS on a maglock. For some unknown reason, it is not compatible with our programming. When a DPS is required, install an actual DPS.

(B/2) REX / Exit Device - Mounted in the desired location with 18/5 wire running from the REX to the controller (18/3 wire if non-powered REX). Wire the REX to the controller and maglock, as shown above. If using a powered REX, run to any 12VDC output on the controller. (If reporting is not needed in the system, simply eliminate the dashed wire.)

NOTE: It is not recommended to power third-party devices to the i/o board. Use a separate external power supply when wiring the exit device.

(C/3) Jumper - Use the designated positive (+) or negative (-) board voltage out of (NO) and (NC). If the jumper is off, the relay is a standard “dry contact” needing input into common. In this diagram, the jumper is placed on the top (-) and center pin to operate the maglock.

If you have any questions or need help with installation or with any of the hardware described in this manual, please feel free to contact the ProdataKey Technical Support staff.

NOTE: When using Bosch and WBOX brand REX devices, they need to be wired to NO (Normally Open) and C (Common) instead of NC (Normally Closed) and C (Common).

Locking Relay Wiring Diagram

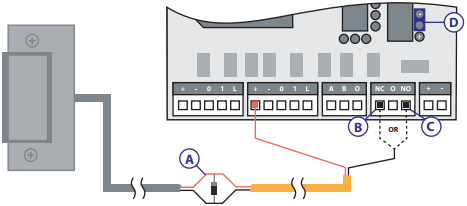

(A) Diode - The provided diode MUST be installed when using a strike. Install at the strike with the stripe of the diode on positive (+) and the black on negative (-).

IMPORTANT: The diode MUST be installed as close to the lock as possible. The best scenario (if possible) is directly across the screw terminals on the lock (as shown in the first image). Another option is to splice the diode in parallel (shown in image two), connecting it to the positive (+) and negative (-) strike wires using dolphin connectors, and crimp the wires. For questions or detailed information, please contact the ProdataKey Support staff.

Installing the diode backward for a strike can cause the Cloud Node or the io door controller to reboot. A damaged or blown (dead) diode can act as if there is no diode, installed backward, or show incorrect data in the logs such as a card scan when the strike returns to the default state.

(B) - NC - Normally Closed - Used for maglocks (or strikes in fail-safe configuration). Connect the negative (-) of the maglock or strike to NC on the door controller.

(C) - NO - Normally Open - Used for strikes in the fail-secure configuration. Connect the negative (-) of the strike to NO on the door controller.

(D) - Jumper - Used to designate (+) or (-) board voltage out of NO and NC. If the jumper is off, the relay is a standard “dry contact” needing input into common. In this diagram, the jumper is placed on (-) side to operate the strike.

NOTE: For UL certified wire installations, all wire running from a single io door controller to a lock, strike, or reader device must be less than 98.5 feet (30 meters).

If you have any questions or need help with installation or with any of the hardware described in this manual, please feel free to contact the ProdataKey Technical Support staff.

Diode Setup

A diode is a standard semiconductor device integral to the safe and proper function of the door controller. It acts as a grounding tool, allowing the flow of current in one direction only. When a door strike is called / requested / sent, the coil sends a spike (also called “kickback voltage”) down the line with as much as 50,000 volts. Without a diode semiconductor, this kickback voltage would damage the control equipment. When properly installed, the diode keeps kickback voltage localized at the lock.

To protect your equipment against electrical kickback, the diode must be installed across the DC powered lock, at the strike, between positive (+) and ground (-). DC voltage is polarized. The diode must be installed in the direction shown in the illustrations: Gray stripe to positive (+), black to negative or ground (-).

Installing a Strike to a Door Controller

Fail-Secure Door Strike Wiring Diagram

Locking devices can be either fail safe or fail secure. A fail-secure locking device remains locked when power is lost. An electric strike replaces the fixed strike faceplate often used with a latch bar. It normally presents a ramped surface to the locking latch allowing the door to close and latch just like a fixed strike.

NOTE: For UL certified wire installations, all wire running from a single io door controller to a lock, strike, or reader device must be less than 98.5 feet (30 meters).

(A) Diode - The provided diode MUST be installed when using a strike. Install at the strike with the stripe of the diode on positive (+) and the black on negative (-).

IMPORTANT: The diode MUST be installed as close to the lock as possible. The best scenario (if possible) is directly across the screw terminals on the lock (shown in the first image). Another option is to splice the diode in parallel (shown in image two), connecting it to the positive (+) and negative (-) strike wires using dolphin connectors, and crimp the wires. For questions or detailed information, please contact the ProdataKey Support staff.

(B) NO - Normally Open - Used for maglocks (or strikes in fail-safe configuration). Connect the negative (-) of the maglock or strike to NC (Normally Closed) on the door controller.

(C) Jumper - Use the designated positive (+) or negative (-) board voltage out of (NO) and (NC). If the jumper is off, the relay is a standard “dry contact” needing input into common. In this diagram, the jumper is placed on the negative (-) and center pin to operate the maglock.

If you have any questions or need help with installation or with any of the hardware described in this manual, please feel free to contact the ProdataKey Technical Support staff.

Diode Setup

Fail-Safe Door Strike Wiring Diagram

Locking devices can be either fail safe or fail secure. A fail-safe locking device unlocks when power is lost. An electric strike replaces the fixed strike faceplate often used with a latch bar. It normally presents a ramped surface to the locking latch allowing the door to close and latch just like a fixed strike.

NOTE: For UL certified wire installations, all wire running from a single io door controller to a lock, strike, or reader device must be less than 98.5 feet (30 meters).

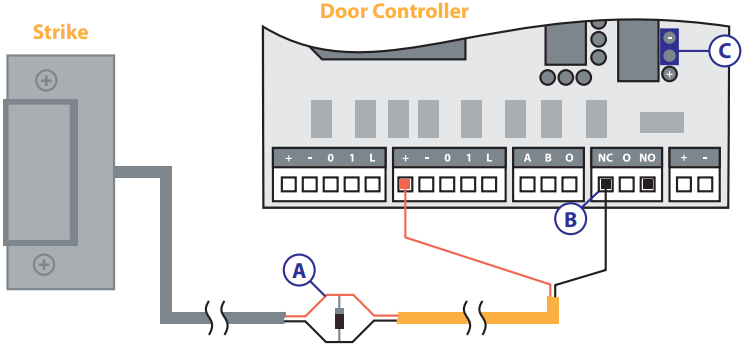

(A) Diode - The provided diode MUST be installed when using a strike. Install at the strike with the stripe of the diode on positive (+) and the black on negative (-).

(B) NC - Normally Closed - Used for maglocks (or strikes in fail-safe configuration). Connect the negative (-) of the maglock or strike to NC on the door controller.

(C) Jumper - Use the designated positive (+) or negative (-) board voltage out of (NO) and (NC). If the jumper is off, the relay is a standard “dry contact” needing input into common. In this diagram, the jumper is placed on the negative (-) and center pin to operate the maglock.

If you have any questions or need help with installation or with any of the hardware described in this manual, please feel free to contact the ProdataKey Technical Support staff.

Diode Setup

Door Position Sensor (DPS) Wiring Diagram

(1) DPS - The Door Position Sensor is mounted on the door frame in the desired location with a 22/2 wire running from the DPS to the controller. The black DPS negative (-) is connected to negative (-) on the controller board, and the red DPS positive (+) wirer is connected to the A connector. (When using two DPS sensors for double doors, wire them in series with only two conductors running back to the controller.)

(2) Input A - Rule-based inputs can be triggered by using the (A) input for something other than DPS.

NOTE: When Input A receives a negative (-) connection from the controller, the input is triggered until the negative is dropped. A rule can be set up to trigger any output based on this input trigger.

NOTE: In the event that a single io Ethernet door controller goes down and is set to DHCP, when the controller comes back online, it will be necessary to use the Lantronix device installer to see what IP address the controller is pulling. The IP address for that controller will have to be changed.

Technical Support

Should you require any technical assistance, please contact our knowledgeable ProdataKey Support staff. Your support queries covering hardware, software installation, trouble tickets, troubleshooting, return merchandise authorization (RMA), or any other questions will be addressed as immediately as possible.

NOTE: In order to receive an RMA from pdk, we must first troubleshoot the device prior to the user receiving an RMA number and the device being returned to the user.

Support

Phone: 801.317.8802 option #2 or direct at: 801.206.4086
Email: support@prodatakey.com
Direct Dealer Support Line: 801.206.4086

ProdataKey, LLC - 67 West 13490 South, Draper, Utah 84020 United States

Certifications

FCC Compliance Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.

Product can be used without license conditions or restrictions in all European Union countries, including Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Luxembourg, The Netherlands, Portugal, Spain, Sweden, and the United Kingdom, as well as other non-EU countries, including Iceland, Norway, and Switzerland.

Copyright

© 2021 ProdataKey, LLC. All rights reserved. ProdataKey, the ProdataKey logo, and other ProdataKey marks are owned by ProdataKey, LLC and may be registered. All other trademarks are the property of their respective owners. ProdataKey assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice.

Single io Door Controller Instruction Manual

ProdataKey Door Controllers

Ver. 20191111

Date: November 11, 2019

Doc No. 1DE/1DW/1DPOE-IM-001

Safety, Maintenance, & Operational Information

Requirements

This information is intended for trained and authorized installers of ProdataKey access control products. Versions of this article will be updated to the ProdataKey knowledgebase as necessary.

In this manual, ProdataKey and its door controllers are referred to as the PDK products, single io, eight io, product, network door controller, device, device controller, and Cloud Node.

Liability

Every care has been taken in the preparation of this document. Please feel free to inform ProdataKey Support of any inaccuracies or omissions in this documentation. We welcome your feedback and suggestions. ProdataKey cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and documentation without prior notice.

ProdataKey makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. ProdataKey shall not be liable nor responsible for incidental or consequential damages in connection with the furnishing, performance, or use of this material. This product is only to be used for its intended purpose.

Intellectual Property Rights

Patents Pending - ProdataKey has intellectual property rights relating to technology embodied in the product described in this document.

Equipment

This equipment must be installed and used in strict accordance with the instructions given in the user documentation. This equipment contains no user-serviceable components. Wiring methods shall be in accordance with the National Electrical Code, ANSI/NFPA 70. Unauthorized equipment changes or modifications will invalidate all applicable regulatory certifications and approvals.

Use only accessories that comply with the technical specification of the product. These can be provided by ProdataKey or an approved third party. Use only spare parts provided by or recommended by ProdataKey.

After the system is installed and working properly, no further maintenance or testing is required.

Do not attempt to repair the product by yourself. Contact ProdataKey Support or your ProdataKey authorized distributor for service matters.

Trademark Acknowledgments

ProdataKey, Prodata Key, prodatakey, PDK, Prodata, are registered trademarks or trademark applications of ProdataKey in various jurisdictions. All other company names and products are trademarks or registered trademarks of their respective companies. Permission to use, copy, modify, and distribute this software and its documentation for any purpose with or without fee is hereby granted, provided that the copyright notice appears in all copies and that both the copyright notice and this permission notice appear in supporting documentation.

Regulatory Information

Electromagnetic Compatibility (EMC)

This equipment has been designed and tested to fulfill applicable standards for:

Radio frequency emissions when installed according to the instructions and used in its intended environment.
Immunity to electrical and electromagnetic phenomena when installed according to the instructions and used in its intended environment.

Safety

This manual has been prepared to help you install the product. Read through the installation instructions carefully before installing the product. Keep the guide for future installation and maintenance reference.

This product complies with IEC/EN/UL 60950-1, Safety of Information Technology Equipment. If your connecting cables are routed outdoors, the product shall be grounded either through a shielded network cable (shielded twisted pair) or another appropriate method.

The power supply used with this product shall fulfill the requirements for Safety Extra Low Voltage (SELV) and Limited Power Source (LPS) according to IEC/ EN/UL 60950-1.

Disposal and Recycling

When this product has reached the end of its useful life, dispose of it according to local laws and regulations. For information about your nearest designated collection point, contact your local authority responsible for waste disposal. In accordance with local legislation, penalties may be applicable for incorrect disposal of this waste.

Supported Readers

Door controllers accept standard 26-bit Wiegand data input from approved readers.

Support / Sales

Support

Phone: 801.317.8802 option #2 or call direct at: 801.206.4086
Email: support@prodatakey.com
Direct Dealer Support Line: 801.206.4086

Sales

Phone: 801.317.8802 option #1
Email: sales@prodatakey.com

Learn More

Visit the ProdataKey Partner Portal for certification training and events, webinars, and tutorials.

Notice

The ProdataKey Single Door Controller is intended for indoor use only.
The ProdataKey product shall be installed by a trained professional.
The ProdataKey product shall be used in compliance with local laws and regulations.
The ProdataKey product shall be installed within a secured area.
Mount in a dry and well-ventilated environment.

To provide the best conditions and proper operation of the product, the controller must be securely mounted in accordance with the installation instructions.
Do not install the door controller box on unstable brackets, surfaces, or walls.
To use the single io door controller outside or in harsh environments use ProdataKey Gate Controller. Call sales for the proper model based on your application.

Use only applicable tools when installing the ProdataKey product. Using excessive force while mounting the product could cause damage.
Avoid exposing ProdataKey product to shocks or heavy pressure.
Do not use chemicals, caustic agents, or aerosol cleaners to clean the product. Use a clean cloth dampened with pure water for cleaning the exterior of the enclosure.
Use only accessories that comply with the technical specification of the product. These can be provided by ProdataKey or a ProdataKey authorized third-party vendor.
Use only spare parts provided by or recommended by ProdataKey Support or a product reseller.
Do not attempt to repair the product by yourself. Contact ProdataKey Support or your ProdataKey authorized distributor for service matters.
Use a can lock to ensure secure enclosures and prevent tampering.
Protect the power cord, Ethernet cable, and transformer wires from being walked on or pinched, particularly where the wiring exits the box.
For UL certified installations, all cable runs to the door controllers must be less than 98.5 feet (30 meters).

Single io Overview

Table of Contents

Single io Features

Scalability

Plug n’ Play Connectivity

Two Reader Inputs

Fully Supervised

Unparalleled Wireless Range

Network, PoE, Wireless

Installation

Package Contents

Recommended Tools

Specifications

Connections

Communication Options

Environmental

Enclosure

Weight

Compliance

Requirements

Power

Power Supply

Recommended Battery

Manufacturer’s Limited Warranty

Mounting Instructions

WiMAC Wireless Antenna Mounting Best Practices

Power

Installing Single io Power

Power Supply

Power Supply Wiring Diagram

Battery

Battery Wiring Diagram

Battery Maintenance

Optional Battery Enclosure

Wireless / Ethernet Connections

Static IP Address

Components

Additional Listed System Components

Single io Door Controller Board Legend

Connectors

Primary & Secondary Reader Connectors

5-Pin Connector A

5-Pin Connector B (Optional)

3-Pin Connector - A / B / O

3-Pin Connector - NC / C / NO

Power Port Connector

Wireless LED Indicators

Ethernet LED Indicators

Installing a Reader to a Door Controller

Wiring

Recommended Wiring Dimensions

Primary & Secondary Reader Wiring Diagram

AUX Device Output Wiring Diagram

Piezo Device to Door Controller Instructions Video

Maglock / Exit Device Wiring Diagram

Installing a REX and Maglock to a Door Controller

Locking Relay Wiring Diagram

Diode Setup

Installing a Strike to a Door Controller

Fail-Secure Door Strike Wiring Diagram

Diode Setup

Fail-Safe Door Strike Wiring Diagram

Diode Setup

Door Position Sensor (DPS) Wiring Diagram

Technical Support

Support

Certifications

Copyright

Safety, Maintenance, & Operational Information

Requirements

Liability

Intellectual Property Rights

Equipment

Trademark Acknowledgments

Regulatory Information

Safety

Disposal and Recycling

Supported Readers

Support / Sales

Support
