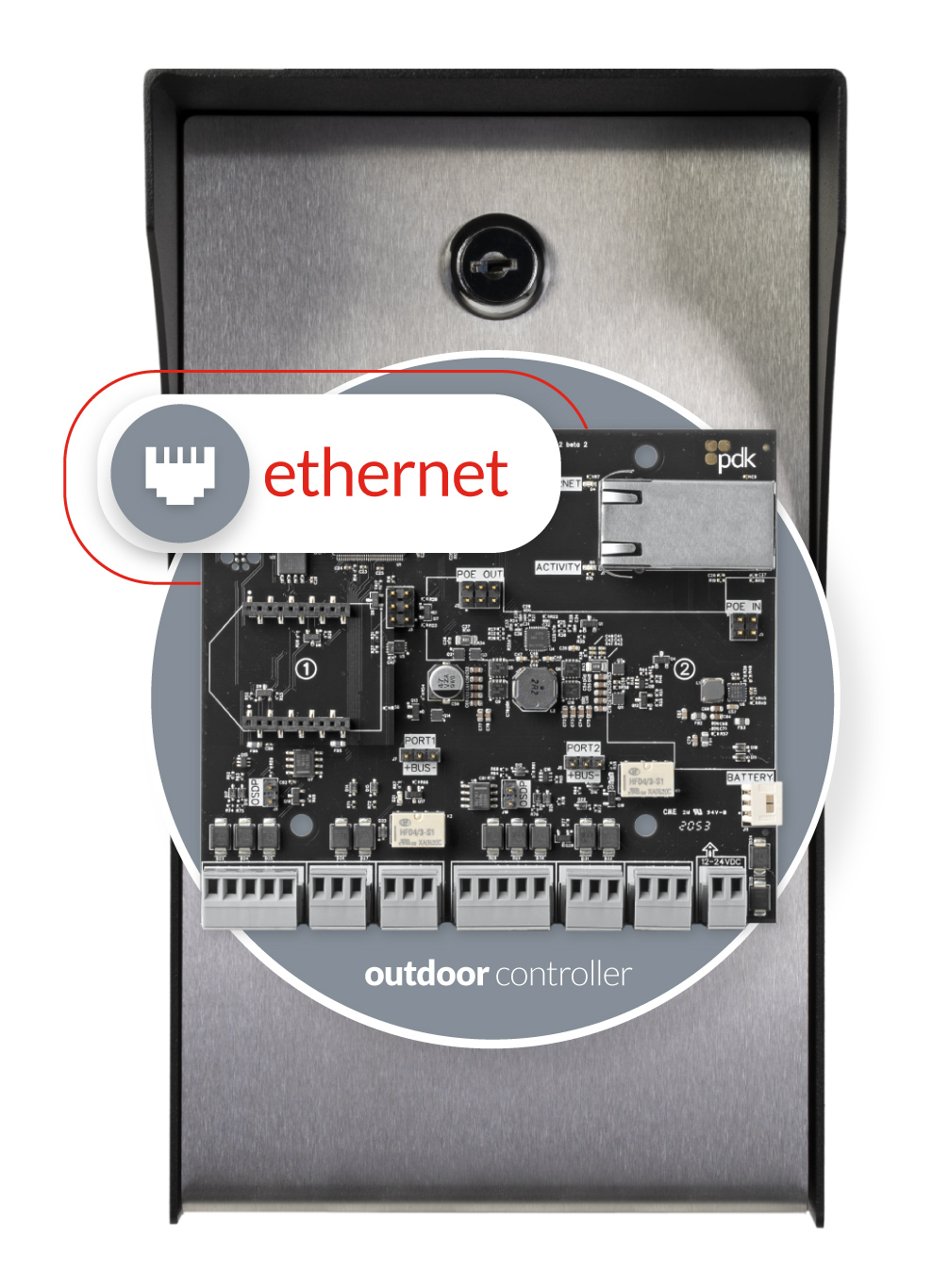

Red Pedestal (Ethernet) Outdoor Controller

Red Pedestal (Ethernet) Data Sheet (PDF)

Red Pedestal (Ethernet) Controller - PN: RPE

Pdk’s Red Pedestal (Ethernet) Outdoor Controller comes standard with Ethernet connectivity and self-discovery, simplifying IP configuration and connectivity. Red Pedestal (Ethernet) Outdoor Controller also incorporates the highest level of security with communication encryption and OSDP reader functionality, monitors input, output, and battery voltage, along with overall controller health.

Optional Module Add-On Kits

PoE++ Module PN: RMPOE

Red Pedestal (Ethernet) Features

Self-Discoverable - The Red Pedestal (Ethernet) is automatically discoverable as a connected device by the Cloud Node. When an Ethernet device is connected to the Cloud Node, it pings the node to let the node know that it is there; it is not necessary to enter the IP address because the device is self-discovered.

Scalability - Whether you need two doors or a thousand, the Red Pedestal (Ethernet) Outdoor Controller allows you to scale the system to just the right size. In addition you can add more doors anytime or anywhere.

Plug ‘n’ Play Connectivity - All io devices were designed to be plug ‘n’ play. That means they’re easy to install right out of the box. It’s simple to add in any io device no matter how large the job is, and you can quickly scale a system to any size. A Cloud Node can connect up to a thousand doors on a single platform.

Two Reader Input Ports - Two input ports are ideal for applications where both read-in and read-out are a security requirement. Know exactly when users enter and exit a premise. The second reader input can also be assigned to trigger automated events.

Battery Charger and Statistics - In addition to charging the battery when a backup battery is attached, battery stats are also provided.

Fully Supervised - Never be caught off guard again. Pdk.io intelligently monitors the network and wireless connectivity of each controller in your system and alerts you if any issues arise, including the following: overcurrent events, primary power connectivity, battery connectivity, battery charge status.

Supports OSDP Protocol - Open Supervised Device Protocol (OSDP) is an access control communications standard developed by the Security Industry Association to improve interoperability among access control and security products. OSDP brings heightened security and improved functionality. It is more secure than Wiegand and supports AES-128 encryption. OSDP handles two-way communication between a reader and a controller. A controller or an interface unit can connect with a reader and identify a device if it is malfunctioning, manage LED indication, or verify an entered PIN.

Specifications

Connections

Removable Screw-down Terminals
Built-in Power Supply
Industrial-grade 2A Form-C Relays
Reader Input A and Input B

Communication Options

Ethernet
PoE++
Encryption: AES 128bit

Environmental

Temperature: -4º ~ +140º F / -20º ~ +60º C
Humidity: 0 - 95% relative humidity non condensing

Enclosure

Dimensions (W x H x D) 5.5” x 9.5” x 5.5”
Stainless-Steel enclosure

Weight

7.3 lbs (116.8 oz)

Compliance

Conforms to UL 294

Requirements

Power

12V-24V DC Input
Included Power Supply: 14V DC, 2A transformer
Powers readers and other door hardware directly from the bus

* Battery not included but a backup battery must be installed to comply with UL 294.

Manufacturer's Limited Warranty

One to three-year warranty against defects in materials and workmanship. For full details visit prodatakey.com.

For questions about the Red 2 controller, contact Support.
