Information about the Uniview EZStation Integration with ProdataKey is available below and in this video.

Initial Setup and Cloud Authorization

To begin the integration, you must authorize the connection between the PDK platform and Uniview EZCloud.

Enable the Uniview Integration in PDK

• Log in to your PDK.io account.
• Navigate to Integrations.
• Locate the Uniview EZStation tile and select Enable.

Authorize Uniview EZCloud

• Once enabled, you will be redirected to the official Uniview Cloud for authorization.

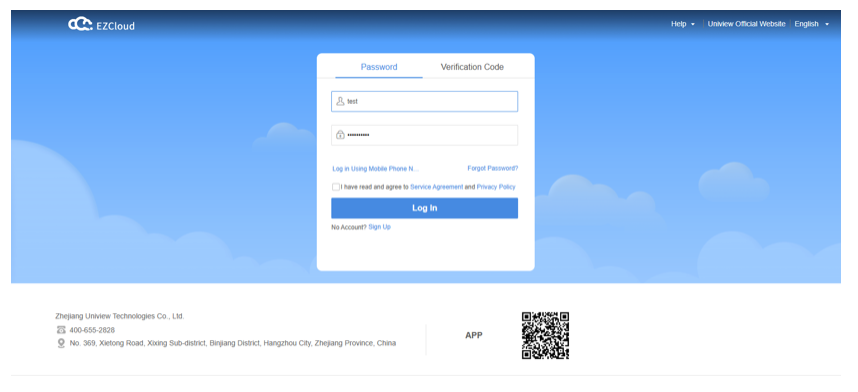

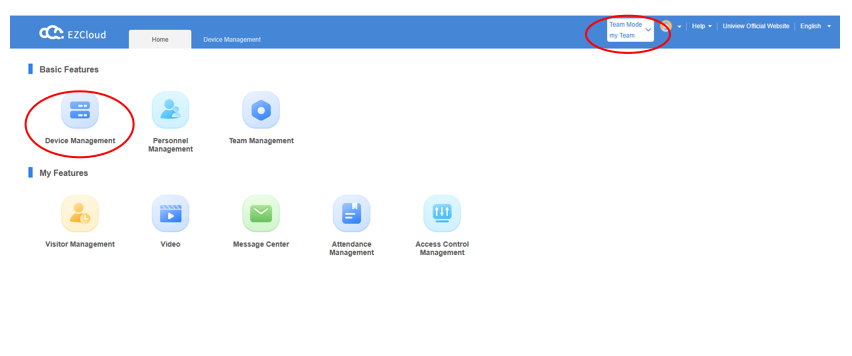

• Log in to Uniview EZCloud and switch the interface to Team Mode.

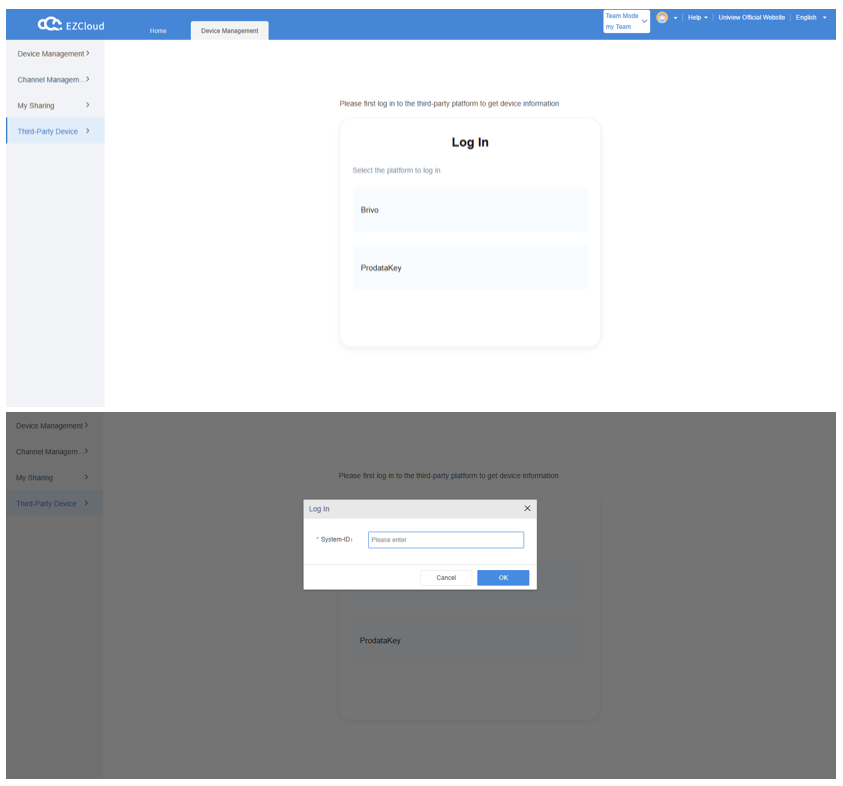

• Navigate to Device Management > Third-Party Device.

• Select ProdataKey from the list of platforms and enter your specific System ID, which can be found under System Settings.

Connect PDK Devices

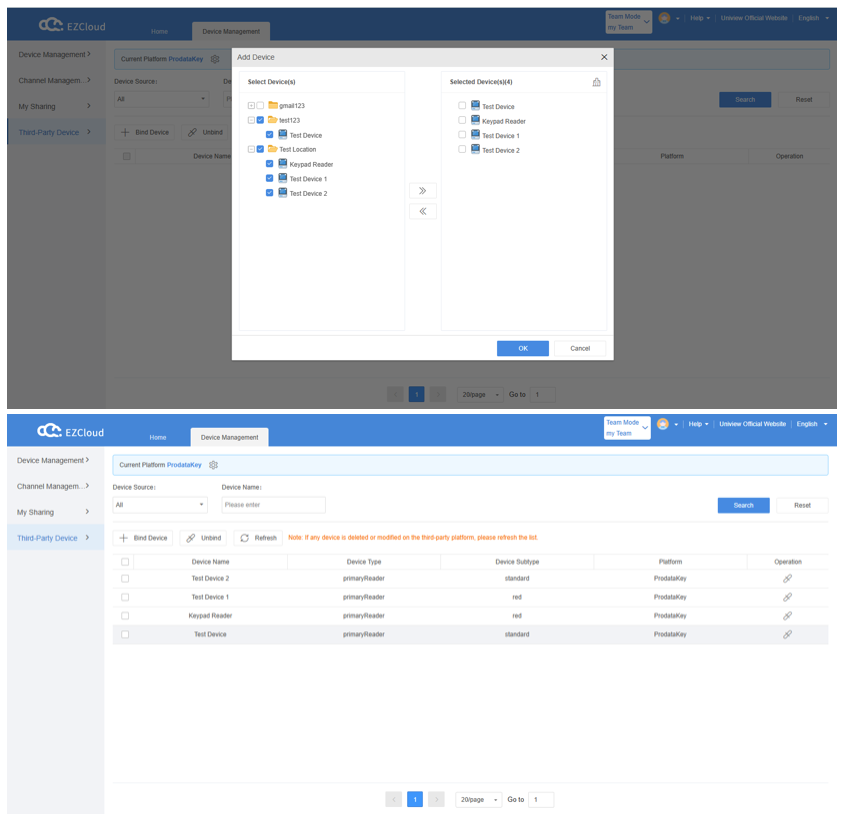

• After entering the correct System ID, the interface will display all avaiable Cloud Nodes and associated hardware.
• Select the devices you need to manage, then click OK to connect them to your Uniview Cloud account.

EZStation Client Configuration

Once the devices are connected to the cloud, they must be added to the EZStation client software for local management.

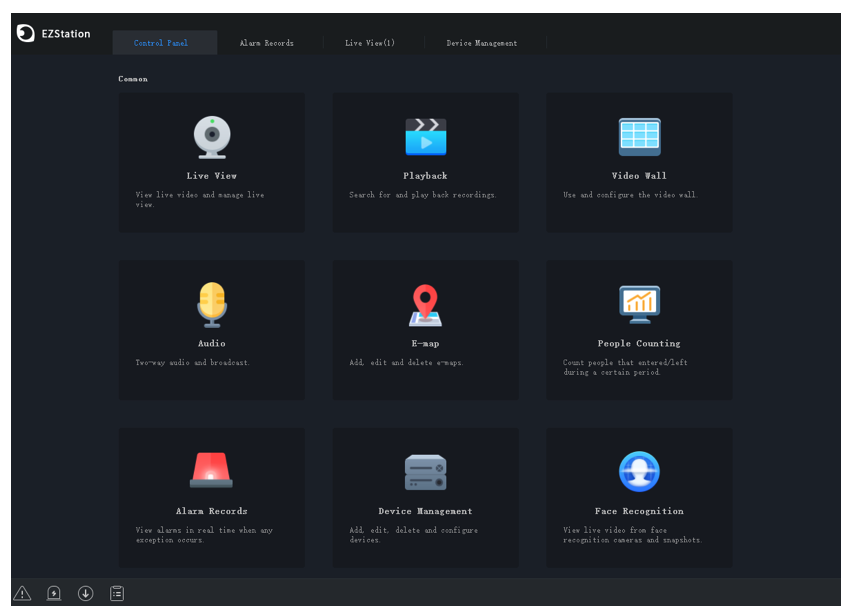

• Open the EZStation client and select Device Management.

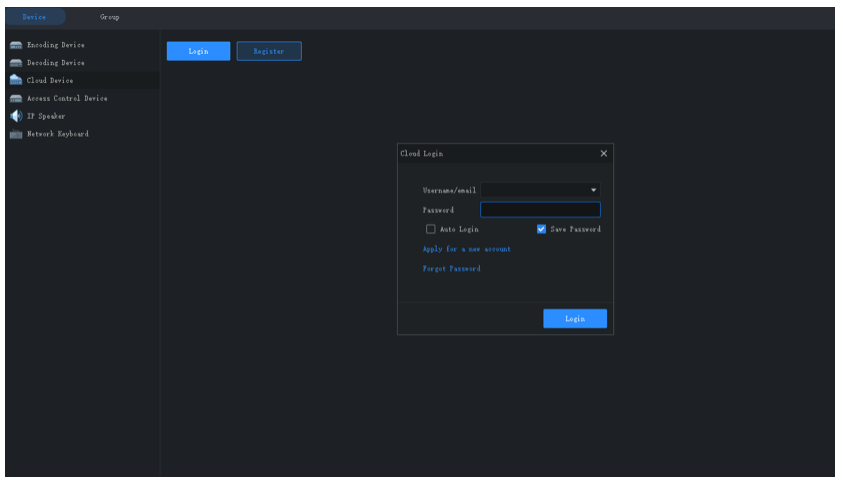

• Select Cloud Device and log in using your Uniview Cloud login.

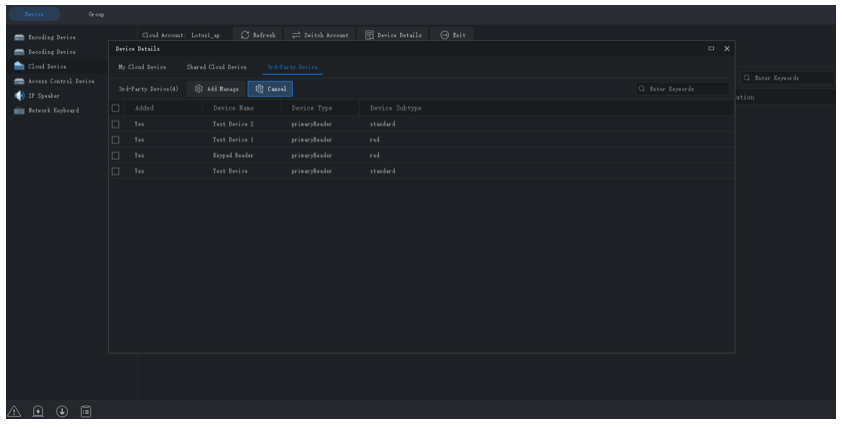

• Select Device Details and navigate to the Third-Party Device tab.

• Identify the PDK Devices you wish to control, select them, and then Add Manage.

Remote Operations and Event Management

When the integration setup is complete, you can manage access control directly from the Uniview interface.

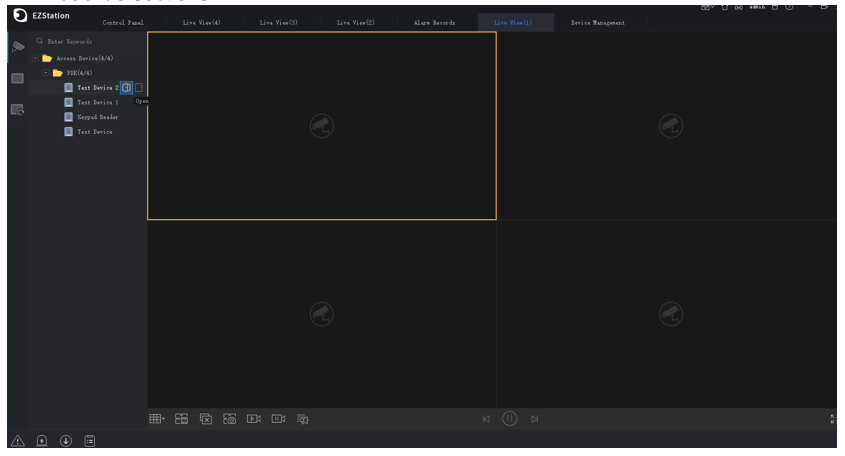

• Remote Lock/Unlock: Navigate to the Live View page in EZStation to view PDK Devices and execute Lock or Unlock commands.

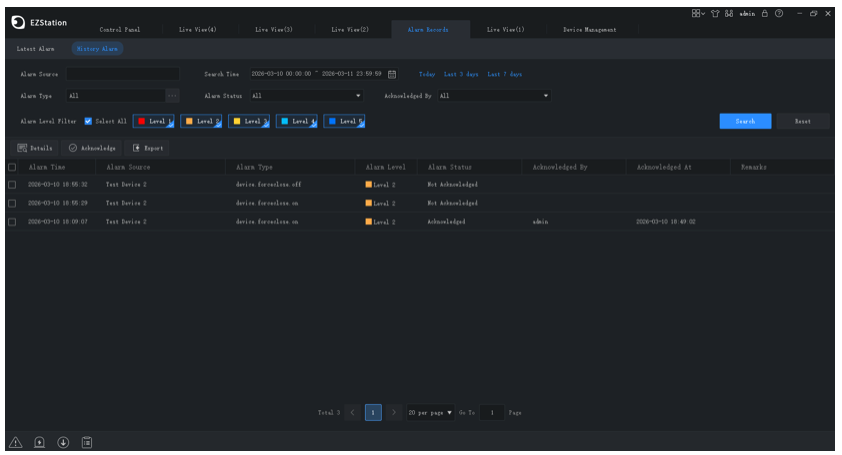

• Event Monintoring: Every Lock/Unlock action performed on a PDK Device generates a corresponding event. These can be reviewed under the Latest Alarm and Alarm Records sections.

Linking Access Control to Cameras

For enhanced security, you can connect PDK Access Control points to specific Uniview camera feeds.

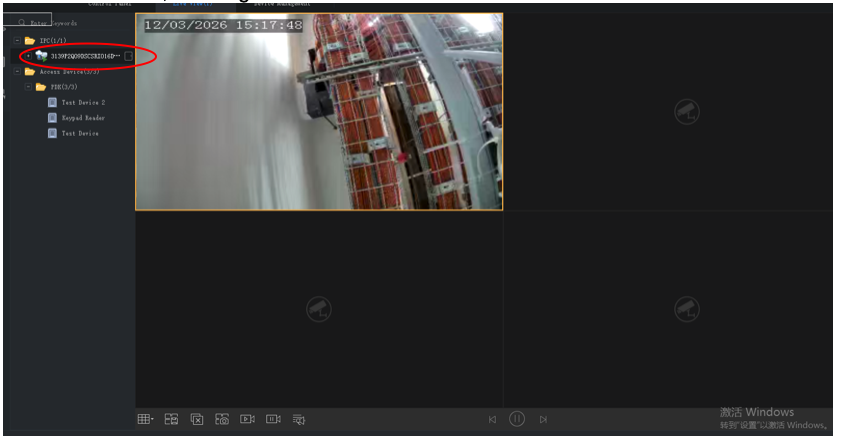

• On the Live View page, select the camera channel you wish to link with a PDK Device.

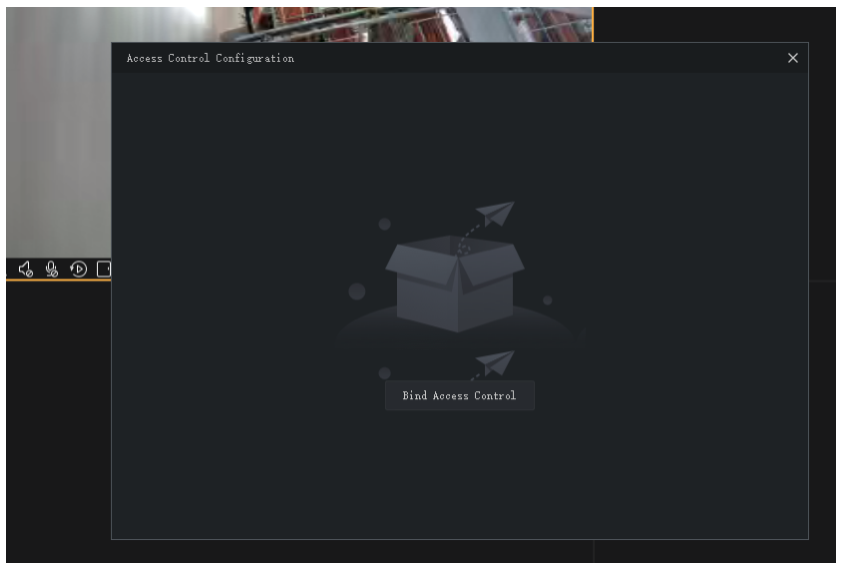

• Click the Door Button located on the right side of the channel interface.

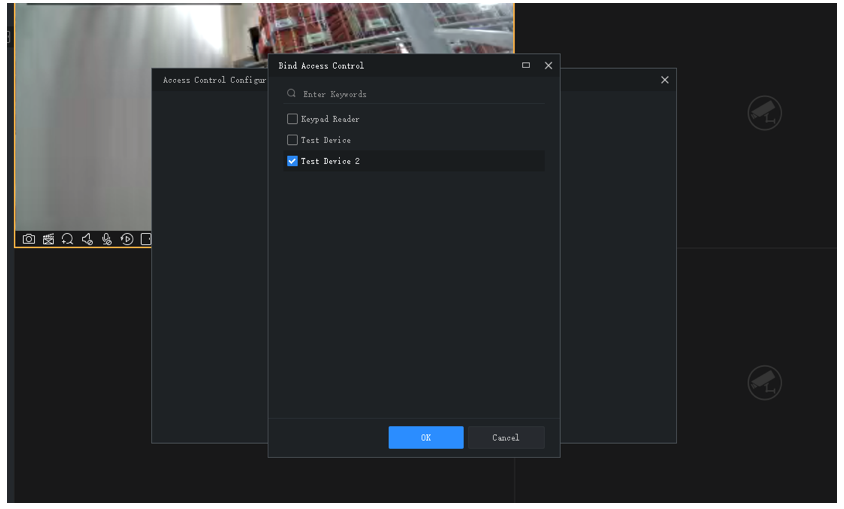

• Select the appropriate access control devices and select OK.

NOTE: Once connected, you can lock and unlock directly from the video channel interface, enabling visual verification of access events.
