DoorVi

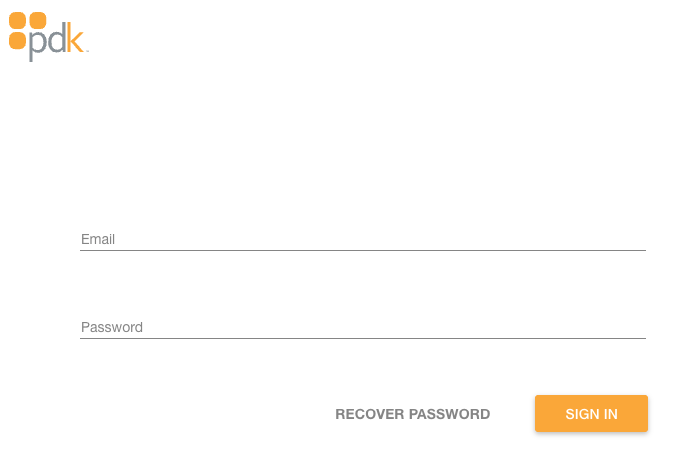

Step 1: Open the login page: Visit: beta.pdk.io

Step 2: Enter your credentials.

• Email: Enter your registered email address in the "Email" Field.
• Password: Enter your password in the "Password" Field.

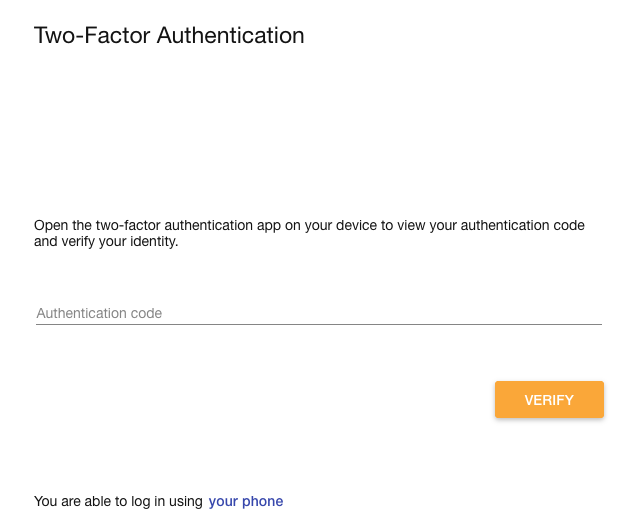

Step 3: Enter the Authentication Code.

Step 4: Successful Login and Dashboard overview

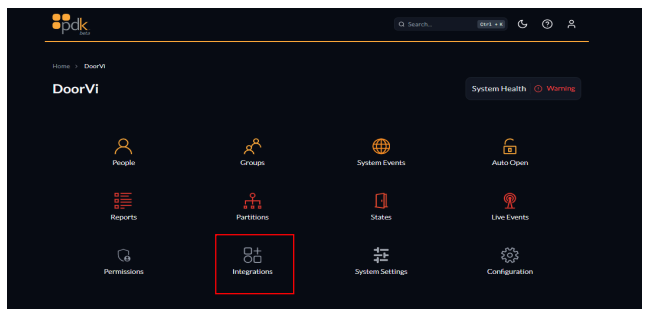

After successfully logging in, you will land on the main dashboard. Select "Integration".

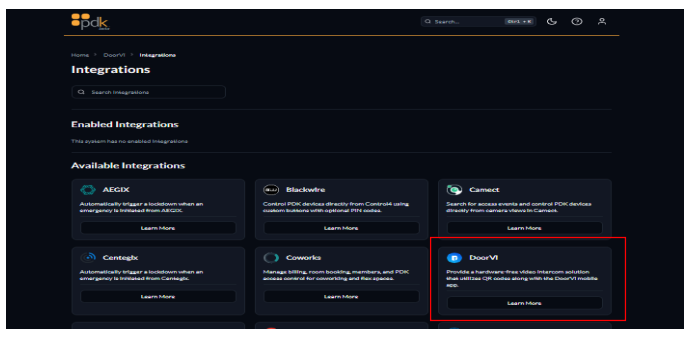

Step 5: Find DoorVi from the list and select "Learn More".

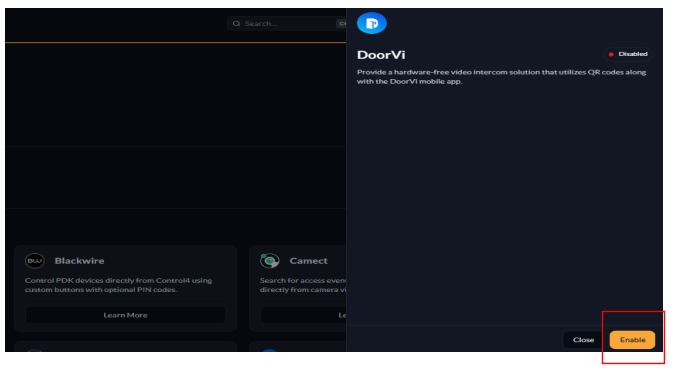

Step 6: Select "Enable".

This is required because you have authorized your Cloud Node System to integrate with DoorVi.

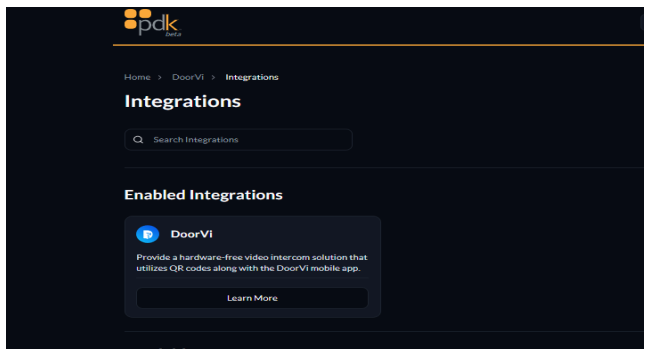

Step 7: After enabling DoorVi, refresh the page to see the “Enabled Integrations” field.

Step 8: Open another tab in your browser and log in to the DoorVi control panel using your credentials at https://multi.doorvi.co/

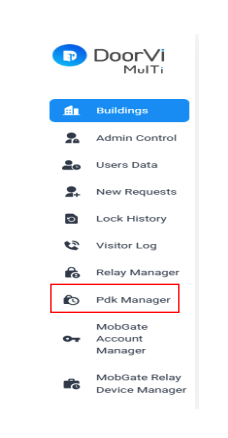

Step 9: Access PDK Manager

• After logging in to the DoorVi control panel, look at the side menu.
• Select "PDK Manager”, which you’ll find at the bottom of the menu.

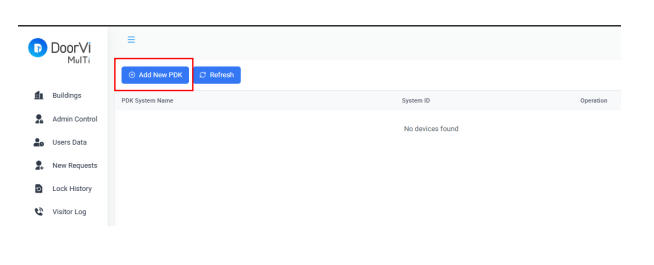

Step 10: Look for the “Add New PDK” option and select to add a PDK System.

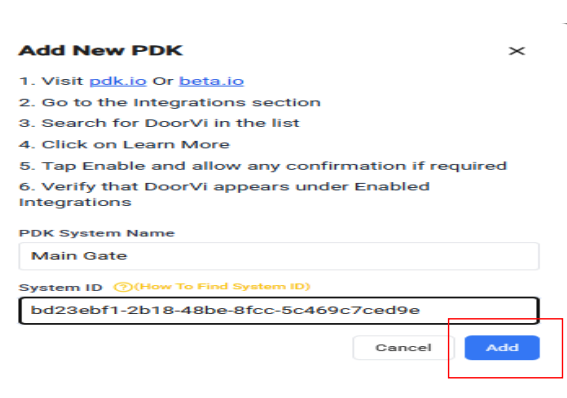

Step 11: After selecting “Add New PDK”, a list will appear. Please refer to the image below for a detailed view of the next steps.

NOTE: When prompted to enter the “PDK System Name”, you can name it anything that suits your setup (e.g., Main Entrance, Main Gate, Back Gate, Gate No 1, Gate No 2).

How to find System ID:

• Navigate to PDK.io
• Log in to your account
• Select System Settings
• Navigate to the Customer Information section
• Copy the System ID and paste it into the DoorVi control panel

Once the System ID is added, click "Add Icon".

Step 12: Now open the DoorVi control panel

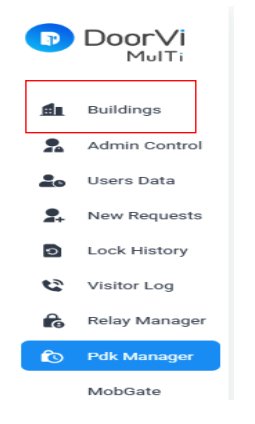

• On the top menu, click on the "Building" icon.

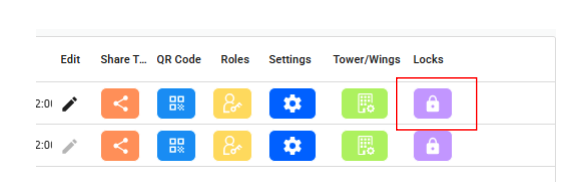

Step 13: Now, click on the "Lock" icon in the right corner of the screen.

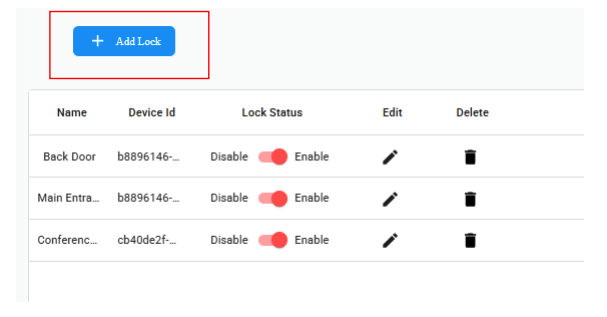

Step 14: Now, click "Add Lock".

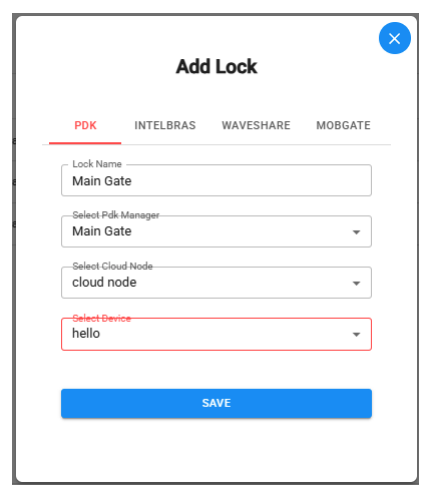

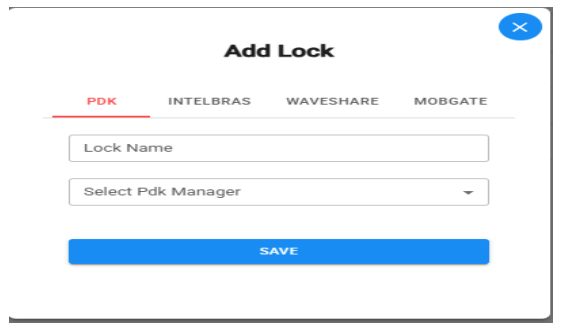

Step 15: After selecting "Add Lock", you will see a dialog box.

1. Enter the "Lock Name" (e.g., Main Entrance, Front Gate, Back Gate).
2. Select your device from the drop-down list in the second field.

3. After selecting the device click "Save".

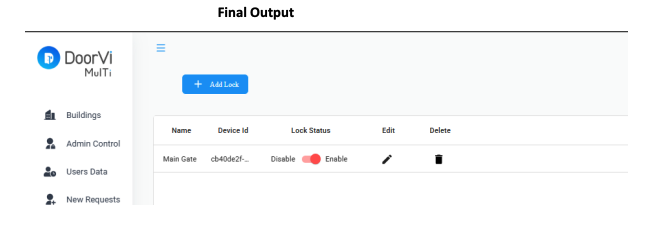

The DoorVi Integration setup is now complete.
