The WiMAC Tool is a web-based utility used by Installation Partners to test and secure Wireless networks.

NOTE: This tool is only compatible with Google Chrome or Microsoft Edge.

Range Test Kit

The purpose of the Range Test Kit is to measure the signal strength of your wireless devices to determine the best placement and optimize their performance. Conducting a wireless range test before installation will show where the signal strength is strong or weak, resulting in a better installation.

An important aspect of testing the strength and optimal location of your wireless devices before conducting the range test is understanding your facility’s surroundings. Certain materials, such as metal, elevator shafts, and even vegetation, can easily weaken wireless signals. The range test is recommended to measure signal strength at specific locations and determine where to place your wireless devices for the best reception.

Part Number: RTK

Purchase the Kit

Request a Range Test Kit from PDK by contacting our Sales department at 801.317.8802, option #1, or by emailing sales@prodatakey.com.

Range Testing

Navigate to WiMAC-tool.PDK.io.
Plug in the Coordinator to the Laptop.
Select Connect.
Select the serial port and Connect.
Plug in the Repeater.
Verify the Remote MAC Address matches the Repeater.
Select Read and then Start Test.

NOTE: If the Remote Device does not automatically connect, select Read a few times

dBm Range	Signal Quality	Action
Under -20 dBm	Too Hot	Devices are too close; the signal may “bleed”
-20 to -80 dBm	Optimal	Suitable installation location
Below -80 dBm	Weak	High risk of communication loss; move devices closer
-90 dBm	No Signal	No connection; check power or distance

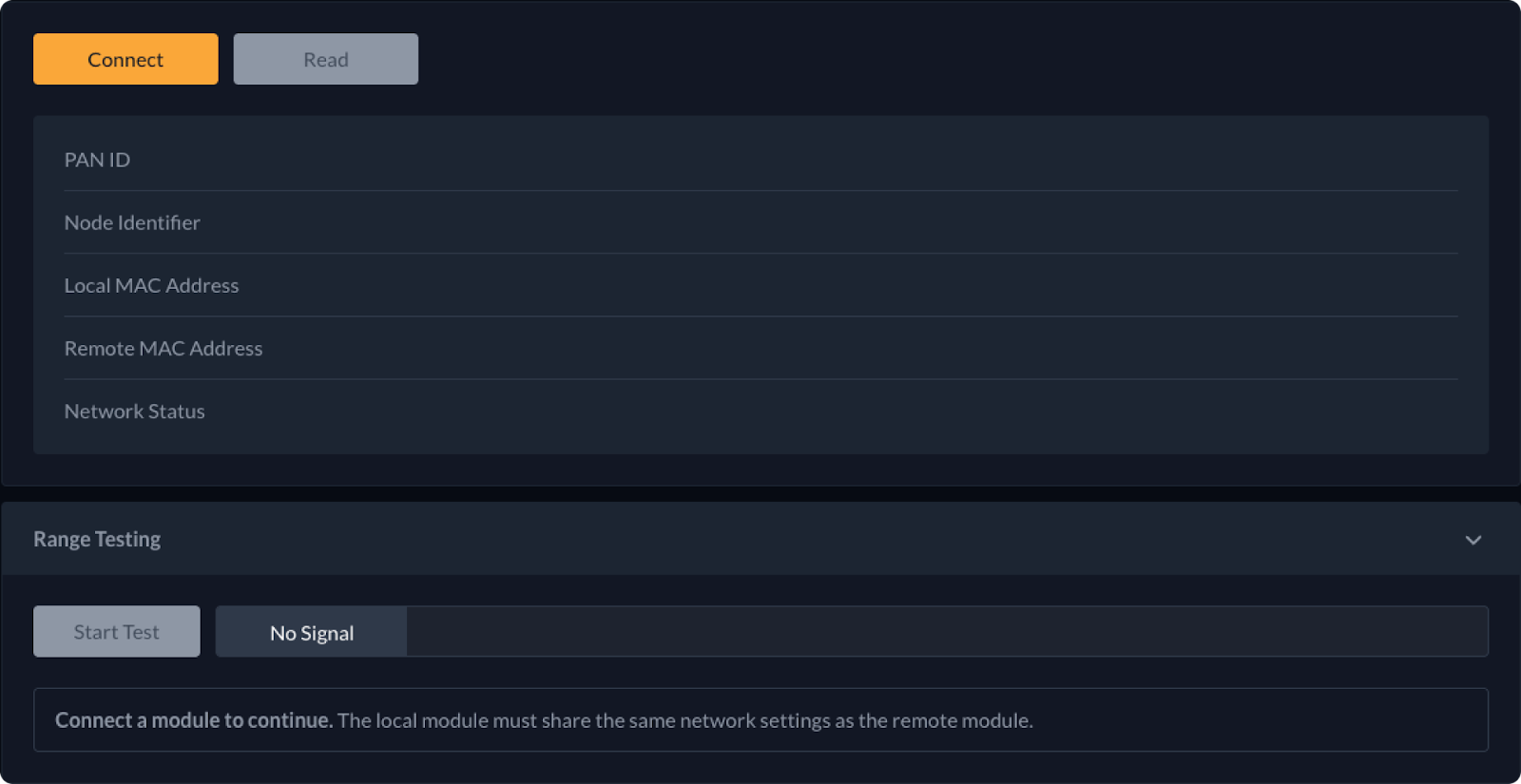

Understanding the WiMAC Tool

PAN ID - Calculated value from the Site ID. (Factory Default: 0000)
Node Identifier - Connected Device Type (Coordinator or Controller)
Local MAC Address - Connected Device MAC Address
Remote MAC Address - Remote Device MAC Address
Network Status - Displays as either Ready or Pending
Signal - Status bar will increase and decrease during the Range Test
Logs - Displays activity history; these will be cleared after each page refresh

Wireless Module Configuration

The ProWireless Kit allows an Installation Partner to configure a Site ID and Passphrase to a WiMAC Module. Using this kit allows WiMAC Modules to connect only to a specific Cloud Node system, ensuring multiple Cloud Node systems with WiMAC function properly in close proximity.

Part Number: PKT

Purchase the Kit

Request a Programming Kit from PDK by contacting our Sales department at 801.317.8802, option #1, or by emailing sales@prodatakey.com.

Network Settings

Navigate to WiMAC-tool.PDK.io
Plug in the Programming Kit to your Laptop
Select Connect
Enter the desired Site ID and Passphrase
Select Write
Disconnect the Device

The Site ID and Passphrase are now set on the Wireless Module, but must be configured on the Cloud Node, which can only be done by PDK Support.

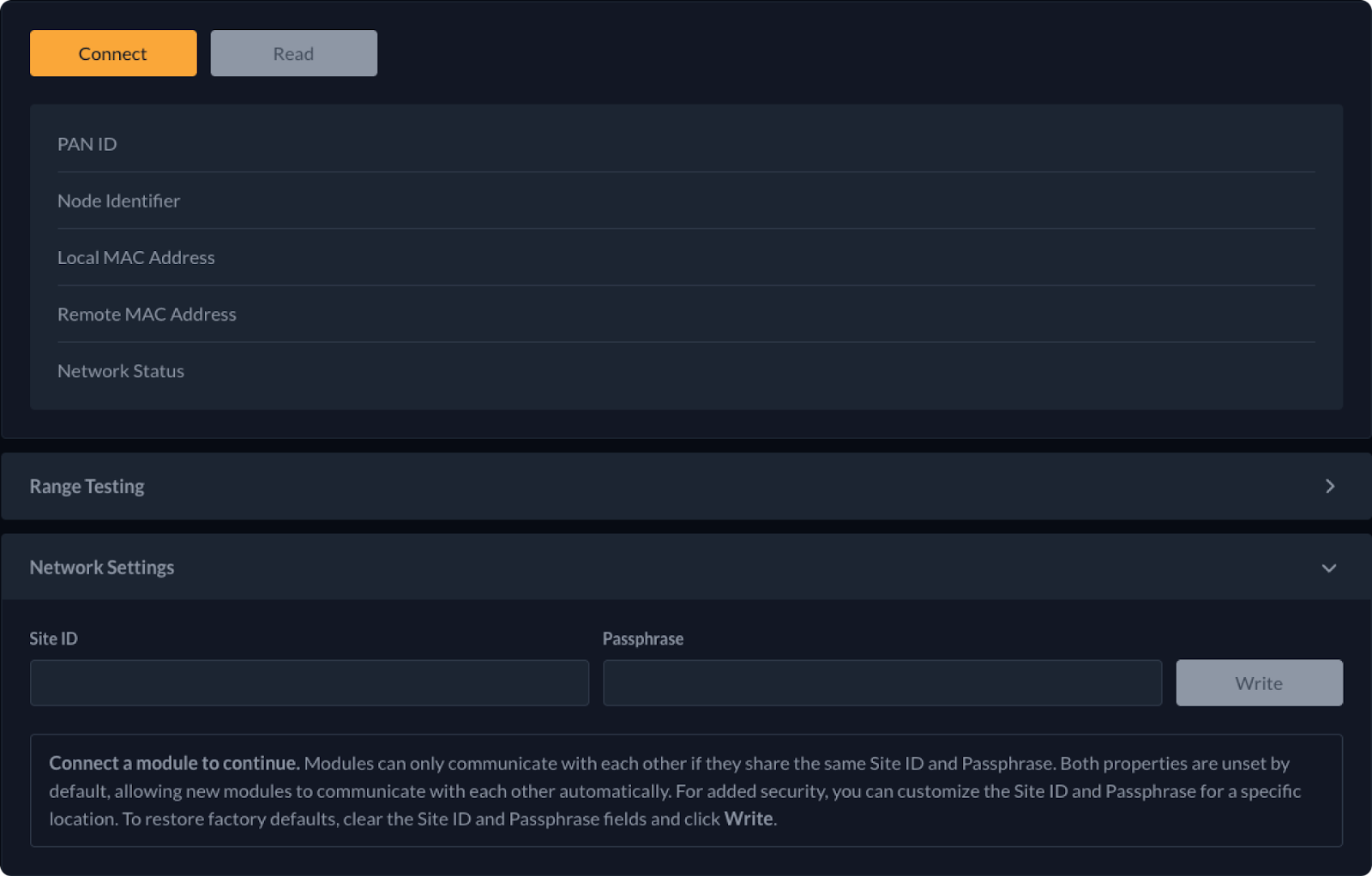

Understanding the WiMAC Tool

PAN ID - Calculated value from the Site ID. (Factory Default: 0000)
Node Identifier - Connected Device Type (Coordinator or Controller)
Local MAC Address - Connected Device MAC Address
Remote MAC Address - Not Applicable during Wireless Module Configuration
Network Status - Ready or Pending
Site ID - WiMAC Mesh Network identifier
Passphrase - WiMAC Connection password
Logs - Displays activity history; these will be cleared after each page refresh

NOTE: The Site ID will not be visible once it has been set.
