Extend Wireless Range

Repeaters can be used to increase the distance of the wireless signal in areas where signal strength is weak or the signal needs to travel long distances between door controllers. Repeaters become part of the mesh network and connect with each other or directly to an ACP, door controllers, and cloud node.

Model

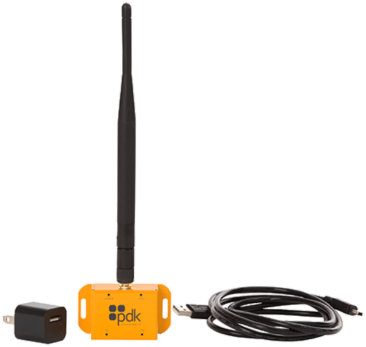

Wireless Repeater PN: MNR

Specifications

Communication

WiMAC Wireless Mesh (2.4 GHz / 802.15.4)
Encryption: AES 128-bit
Wireless Range: 1-Mile Line-of-Sight, 450 ft. indoor average

Environmental

Temperature: -4º ~ +140º F or -20º ~ +60º C
Humidity: 0 - 95% relative humidity non-condensing

Enclosure

Dimensions (W x H x D) 2.75” x 1.5” x .75” metal can

Weight

.17 lbs (2.7 oz) without USB cable or wall plug

Power

Includes wall plug with 6 ft. cable
3.3V-5V up to 500mA

Manufacturer’s Limited Warranty

One to three-year warranty against defects in materials and workmanship. For full details visit prodatakey.com to access marketing and support resources. For questions about the Wireless Repeater, refer to the Wireless Repeater article or contact Technical Support.

Wireless Repeater - Data Sheet
