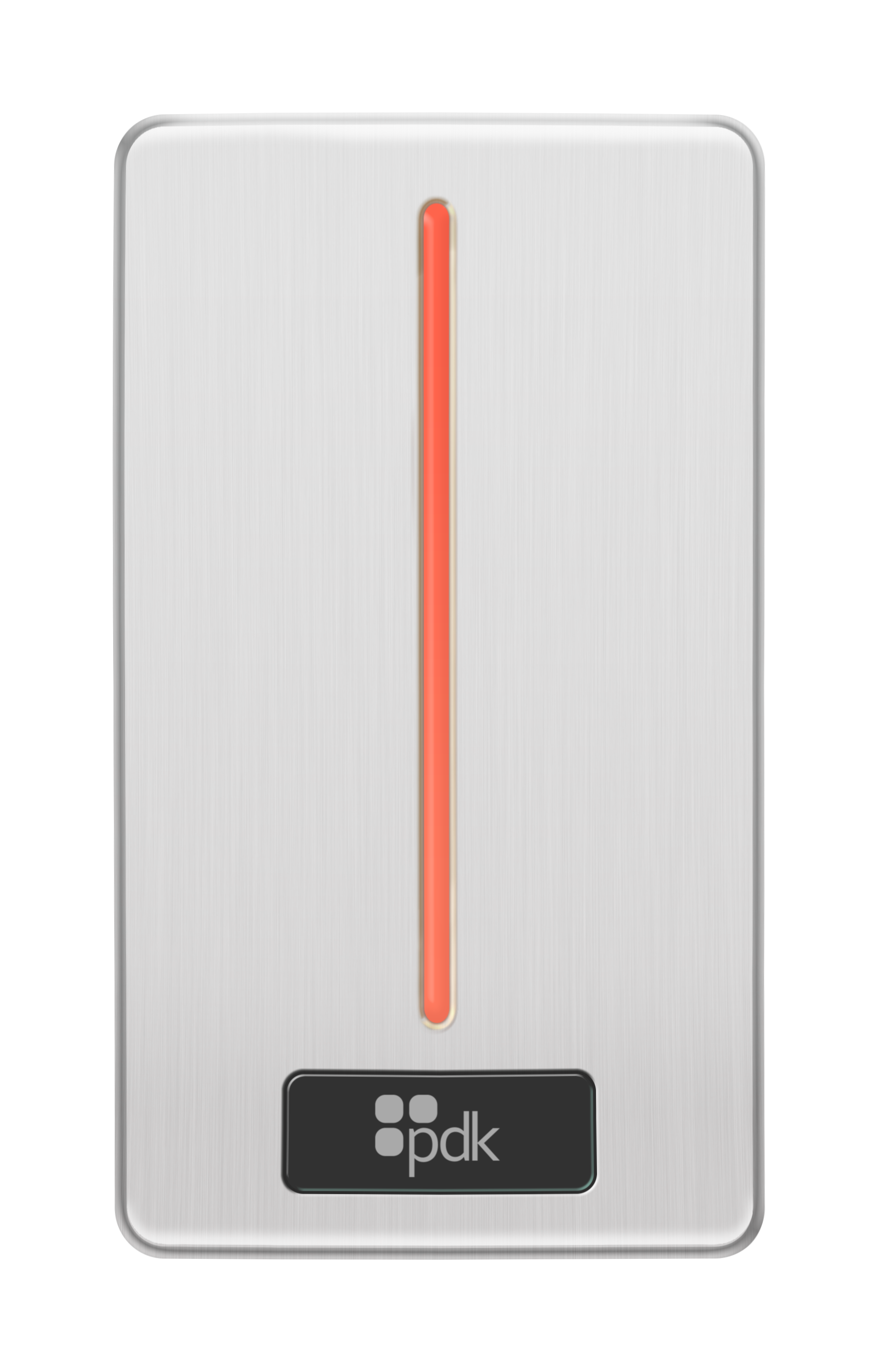

Heavy-Duty Stainless Steel Reader
This heavy-duty, vandal-proof reader is a perfect balance between beauty and brawn. With its sleek and rugged design, the HD Reader is ideal for any outdoor facility or modern indoor office space.
Specifications |
HD Reader |
|---|---|
Part Number |
RDRSR |
Input Frequency |
125 kHz |
Read Range |
up to 1.8" |
Output |
26 to 37-bit Wiegand protocol |
Cable Distance |
Wiegand 500' (22 AWG) |
Temperature |
-31° ~ +140° F /-35° ~ +60° C |
Humidity |
0 - 95% relative humidity non-condensing |
Protection Rating |
IP67 |
Dimensions |
(W x H x D) 1.96” x 3.74” x 0.78” |
Weight |
0.83 lbs / 13.4 oz / 380 g |
Power |
6 - 16V DC (Linear power supply recommended) |
Max Amperage |
30mA |
Manufacture's Limited Warranty
One to five-year warranty against defects in materials and workmanship. For full details, visit prodatakey.com/warranty
For more questions about the PDK HD Reader, please contact PDK Tech Support.
