Gate io Part Numbers - Network: GCE / PoE: GCPOE / Wireless: GCW

Gate io - Introduction

The Gate io has the same hardware contents and electronic features of the single io. What makes the Gate io unique is that it comes in a sturdy, sleek, and secure weatherproof enclosure. It is perfect for all outdoor openings such as gates and garages that are in harsh environments or exposed to the elements. Never worry about costly trenching ever again. After being mounted, it will communicate to the Cloud Node. It is available in three different models: Ethernet, PoE, and Wireless.

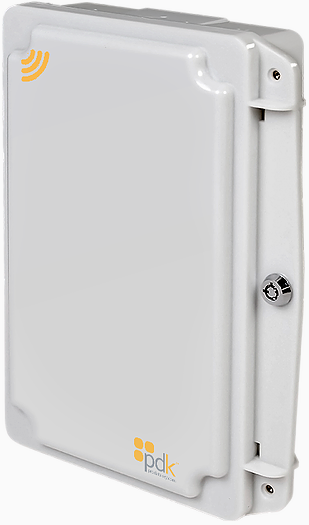

The Gate io comes in a lockable NEMA 4X UL-rated weatherproof enclosure. Powerfully equipped with WiMAC wireless, the Gate io can reach up to one-mile line-of-sight.

Gate io Installation Overview

Gate io Features

Eliminate Trenching - Protecting access to gates and exposed areas has never been easier or more cost-effective. Because of our WiMAC (Wireless Mesh Access Control) wireless capabilities, the gate io eliminates the substantial expenses associated with trenching.

Fully Supervised - Never be caught off guard again. Pdk.io intelligently monitors the network and wireless connectivity of
each controller in your system and alerts you if any issues arise.

Unparalleled Wireless Range - With WiMAC, experience up to a one-mile line of sight, and 450 ft. (on average) indoor range. Every WiMAC device installed extends and strengthens the self-healing wireless mesh network. WiMAC is unmatched in security with a proprietary signal and AES encryption.

Scalability - Whether you need three doors or a thousand, the gate io controller allows you to scale the system to just the right size. Also, with the flexibility of our WiMAC wireless, you can add more gates and openings anytime, or anywhere.

Fully Supervised - Never be caught off guard again. Pdk.io intelligently monitors the network and wireless connectivity of
each controller in your system and alerts you if any issues arise.

Plug n’ Play Connectivity - All io devices were designed to be plug n’ play. That means they’re super easy to install right out of the
box. It’s easy to add in any io device no matter how large the job is, and you can quickly scale a system
to any size. A Cloud Node can connect with up to a thousand doors on a single platform.

Wireless, Network, PoE - Choose from three flexible connectivity options that fit any application. The gate io is built for ultra-low bandwidth consumption and easily connects to existing or dedicated networks. Easily expand a systems wireless coverage (via network) using the Ethernet Gateway.

Specifications

Specifications for the Gate io are two reader ports to accomplish read-in and read-out applications, an input/output board, a main relay, and a power supply input. The board contains battery terminals and a communication module. These modules will differ depending on the type of controller being installed. The two types of communication modules are Ethernet and Wimac. Ethernet is used for Ethernet and PoE controllers.

Connections

Removable Screw-down terminals
Power Supply Input
Industrial-grade 2A Form-C Relays (1 Door / 1 Aux)
Reader Input (2)
Input A (Door Position Sensor)
Input B (Request To Exit)

Enclosure

Dimensions (W x H x D) 7” x 9.25” x 2.25”
Polycarbonate lockable security enclosure
NEMA 4X UL-rated enclosure

Weight

GCE/GCPOE/GCW - 1.31 lbs (21 oz)

Optional Parts

Pole Mount Kit (PMK)

Communication Options

Ethernet
PoE
WiMAC Wireless Mesh (2.4 GHz / 802.15.4)
Encryption: AES 128-bit
Wireless Range: 1-Mile Line-of-Sight - 450 ft. indoor average

Environmental

Temperature: -20º ~ +60º C or -4º ~ +140º F
Humidity: 0 - 95% relative humidity non condensing

Requirements

Power

12-24V AC/DC Input
12VDC 1.5A *Battery-Backed Output
Powers readers and other door hardware directly from the bus
*Power supply and battery not included

Recommended Power

Power Supply: ELK-TRG1640 or HVC
Battery: 12VDC 1.2 to 5 Ah lead acid backup battery

Manufacturer’s Limited Warranty

One to three-year warranty against defects in materials and workmanship. For full details visit prodatakey.com/warranty

Technical Support

Should you require any technical assistance, please contact our knowledgeable ProdataKey Support staff. Your support queries covering hardware, software installation, trouble tickets, troubleshooting, return merchandise authorization (RMA), or any other questions are addressed as immediately as possible.

NOTE: In order to receive an RMA from pdk, we must first troubleshoot the device prior to the user receiving an RMA number and the device being returned to the user.

Phone: 801.317.8802 option #2 or direct at: 801.206.4086
Email: support@prodatakey.com
Direct Dealer Support Line: 801.206.4086

ProdataKey, LLC - 67 West 13490 South, Draper, Utah 84020 United States

Gate io Controller
