Cloud Node SE - Part Number: SVR
Safety, Maintenance, & Operational Information
Additional Listed System Components
The Cloud Node Server Edition is the main system panel and is the gateway to the PDK io cloud platform. It is designed and configured with IT value-added resellers in mind. It features simple plug-and-play connectivity which makes deploying access control easier than ever before. Each site requires an Internet connection with one Cloud Node SE. The Cloud Node SE then communicates with all local door controllers while storing all data on-site in case of an Internet outage. Ultimate flexibility is achieved by using any combination of io controllers. With the PDK io API, the Cloud Node SE becomes a fully integrated access control solution. When installing, make sure you have an internet connection handy. An internet connection allows the cloud node to establish a secure connection with the cloud.

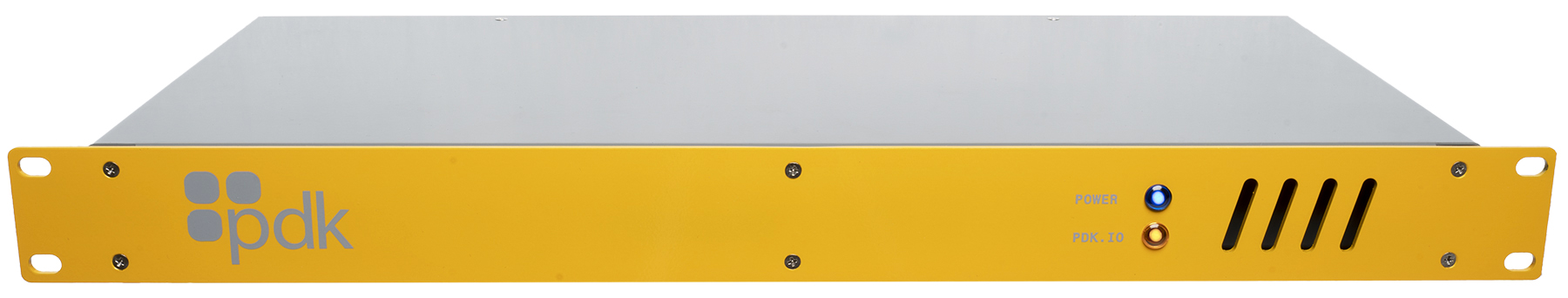

Cloud Node SE Overview
Cloud Node SE Features
IT Infrastructure
The Cloud Node SE was specifically designed and configured with IT value-added resellers in mind. Installation is a breeze, just slide the Cloud Node SE into any standard 19” server rack, connect it to the network, and power it on. Deploying access control has never been easier.
Connects to PDK io Cloud Platform
PDK io provides the most powerful and streamlined access control platform on the market. Experience full configuration and management from any internet-connected device. Manage users, create groups, open and close doors, set system rules, get SMS & email alerts, and more. All in a single App.
Plug n’ Play Connectivity
All io devices were designed to be plug n’ play. That means they’re super easy to install right out of the box. It’s easy to add in any io device no matter how large the job is, and you can quickly scale a system to any size. The Cloud Node SE can connect to as many as a thousand doors on a single platform.
Upgrade Any System
Backward compatible hardware makes system upgrades and takeovers a breeze. Simply replace any existing panel with a Cloud Node SE and io controllers, then connect it to the network to instantly bring the system into the cloud.
Fully Supervised
Never be caught off guard again. Pdk.io intelligently monitors the network and wireless connectivity of each controller in your system and alerts you if any issues arise.
Automatic Software Updates
Experience future-proof access control that’s always secure, and up-to-date. The Cloud Node updates automatically as new features, and security enhancements become available.
Specifications
Communication Options |
|
Encryption | AES 128-bit |
Wireless Range | One Mile Line-of-Sight / 450 ft. indoor average |
Environmental Temperature | -4º ~ 140º F / -20º ~ 60º C |
Humidity | 0% - 95% relative humidity non-condensing |
Enclosure Dimensions (WxHxD) | 19 x 2 x 13 inches mountable to a standard 19” server rack |
Weight | 9 lbs. 10 oz. / 4.25 kg |
Power Requirements | Standard 110 to 220VAC outlet |
NOTE: You must have a Cloud Node to connect to pdk.io and be able to add door controllers. To program the Cloud Node you must have a PDK.io account. The Cloud Node must be online (connected to the Internet) in order to program it.
Installation
This Installation Manual provides instructions for installing ProdataKey Cloud Node SE.
IMPORTANT: A ProdataKey Cloud Node is required to operate the Single io and Eight io door controller products.
Package Contents
Cloud Node includes the main panel, single door controller, and power supply.
Recommended Tools:
|
NOTE: For WiMACTM wireless connectivity to door controllers, an Ethernet to Wireless Gateway (PN: LZE) is required.
Additional Listed System Components
Single io |
|
Eight io |
|
Proximity Reader | Must be UL 294 listed |
Proximity Credentials | Must be UL 294 listed |
Electronic Locking Hardware | Must be UL 294 listed |
NOTE: For information about other products and services, see ProdataKey Products.
Mounting Instructions
WARNING: Disconnect power before working with the ProdataKey product. DO NOT mount the product while power is applied. Always apply power at the end of the installation after verifying wiring connections are correct; incorrect wiring could cause damage to the product.
Before you begin the installation, read the instructions thoroughly. Make sure you have read and understand the Safety Information. Please follow these mounting suggestions:

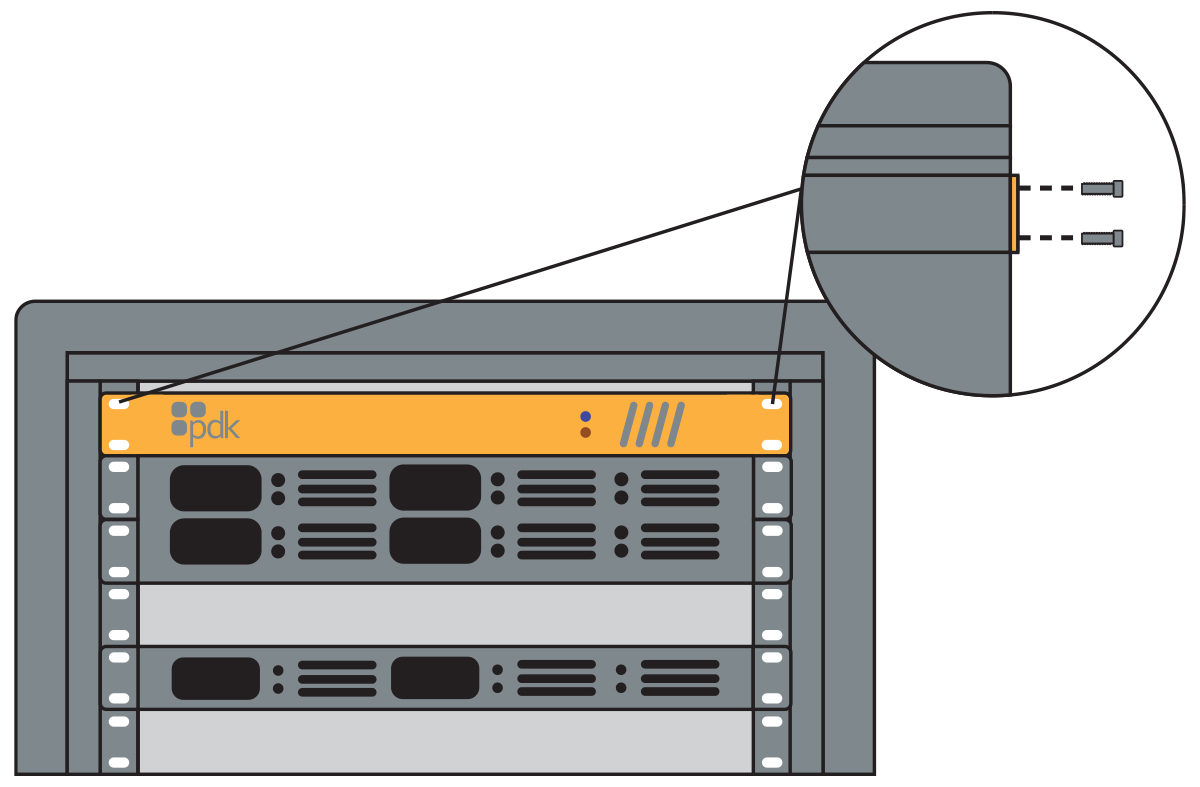

The Cloud Node SE fits into any standard 19” server rack. Secure the Cloud Node SE into the server rack using the four provided mounting screws.
Power Connection
Power
(A) AC Input - Plug the female end of the power cord into the back of the Cloud Node SE. Then, plug the male end into any standard 110 - 220 VAC outlet.
Network Connection
(B) Internet - A live Internet connection is required to program and manage the Cloud Node SE. Connect the Cloud Node SE to the network via an Ethernet network.
Battery Backup
To utilize a battery backup device, plug the Cloud Node SE into any 110 - 220VAC UPS.
NOTE: A backup battery is HIGHLY recommended to prevent system failure in the event of an AC power loss.
LED Diagnostics
LED | Status |
Off | Not connected to pdk.io |
Flashing | Connecting to pdk.io |
Solid | Connected to pdk.io |
Installing a Reader to a Door Controller
Cloud Node SE Registration
Account Setup - A company account on pdk.io is required to register the Cloud Node SE. If you do not currently have a company account, call us at 801.317.8802 option #2. If your account is already established and you wish to add an authorized user, such as a field tech, they can be added through the account admin page.
- Login to your account at pdk.io and select the + icon next to Customers.
- Enter the site name and click Create.
- Select the customer and then select the + icon next to Cloud Nodes.
- Enter the Cloud Node serial number and a name, and click Create.
- You can now select that Cloud Node for configuration and management.
For complete Cloud Node information and its functionality with Single io, refer to the Cloud Node Panel with Single io Controller.
NOTE: If or when you set a static IP on a Cloud Node and the Cloud Node does not come back online immediately, give it a few minutes. If it still does not come online then power cycle the Cloud Node for approximately 10 seconds; the Cloud Node should come back online.
Cloud Node Backup
To restore a backup to a Cloud Node, the Cloud Node must be connected to the Internet.
Transferring a Cloud Node
NOTE: If a Cloud Node is owned by a dealer and another dealer wants to take over the account, the owner of the account must first delete it out of their name before the new dealer can take it over.
Technical Support
Should you require any technical assistance, please contact our knowledgeable ProdataKey Support staff. Your support queries covering hardware, software installation, trouble tickets, troubleshooting, return merchandise authorization (RMA), or any other questions will be addressed as immediately as possible.
NOTE: In order to receive an RMA from pdk, we must first troubleshoot the device prior to the user receiving an RMA number and the device being returned to the user.
- Phone: 801.317.8802 option #2 or direct at: 801.206.4086
- Email: support@prodatakey.com
- Direct Dealer Support Line: 801.206.4086
ProdataKey, LLC - 67 West 13490 South, Draper, Utah 84020 United States
Certifications
FCC Compliance Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.
Product can be used without license conditions or restrictions in all European Union countries, including Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Luxembourg, The Netherlands, Portugal, Spain, Sweden, and the United Kingdom, as well as other non-EU countries, including Iceland, Norway, and Switzerland.
Copyright
© 2020 ProdataKey, LLC. All rights reserved. ProdataKey, the ProdataKey logo, and other ProdataKey marks are owned by ProdataKey, LLC and may be registered. All other trademarks are the property of their respective owners. ProdataKey assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice.
© 2020 ProdataKey, LLC.
