Overview

The OpenEye integration allows multiple OpenEye servers and cameras to be used with a PDK.io Customer Account.

Configuration

Requirements

• The OpenEye VMS integration is only available for PDK.io 2.0 Customer Accounts.
• A Partner with Integrator permission is required for the initial setup of the OpenEye integration. For more information, refer to the article on Integrations.

The OpenEye integration allows a Partner to configure specific Readers and Cameras for notifications and Bookmarked Events as required.

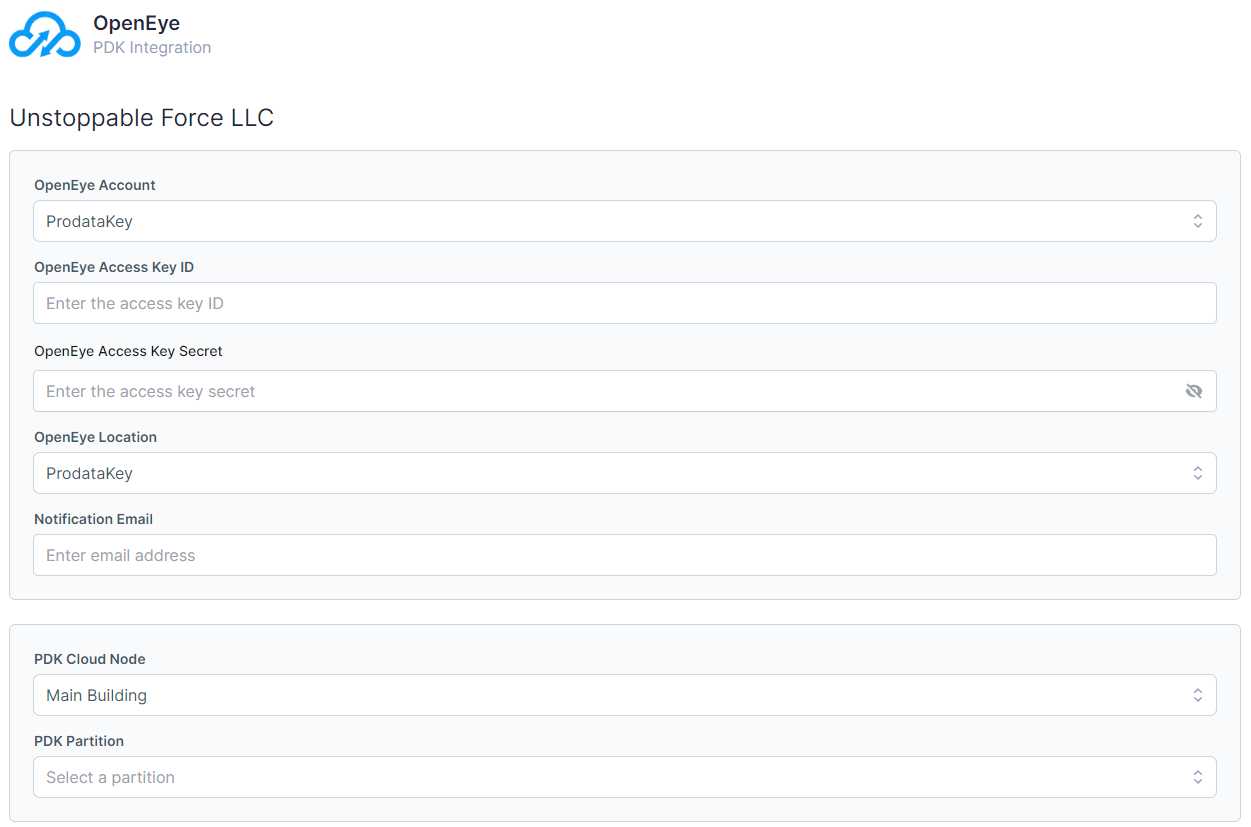

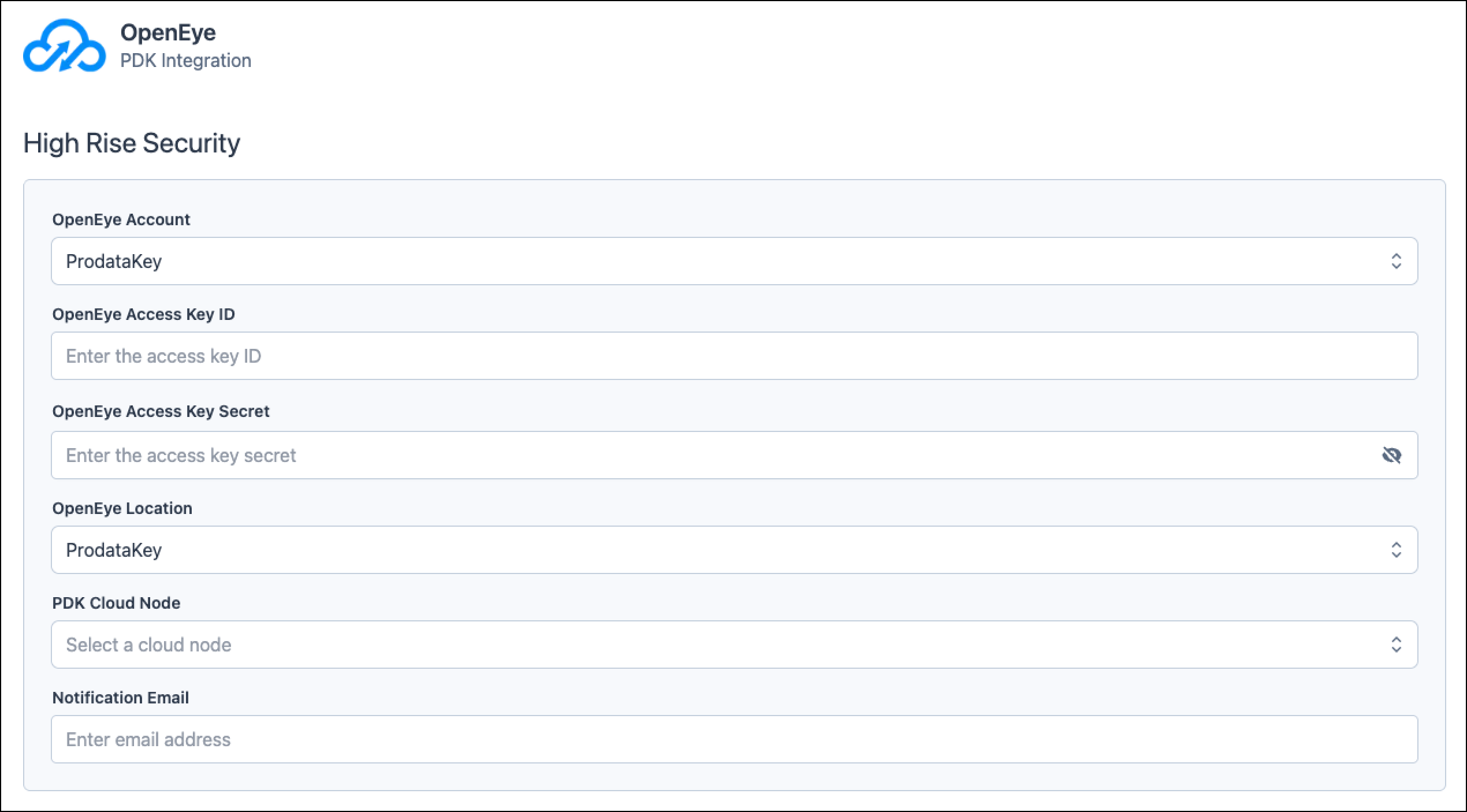

Settings

OpenEye Account - Select from the OpenEye systems that your email account has access to.

OpenEye Access Key ID - Enter the API Access Key configured in the OpenEye application.

OpenEye Access Key Secret - Enter the API Access Secret configured in the OpenEye application.

OpenEye Location - Enter the Location configured in the OpenEye application.

Notification Email - Should an error occur between PDK.io and the OpenEye application, an email about the error will be sent to this email address.

PDK Cloud Node - Select between the Cloud Nodes available on the PDK.io Customer Account.

PDK Partition - Select the Partition on the Customer Account.

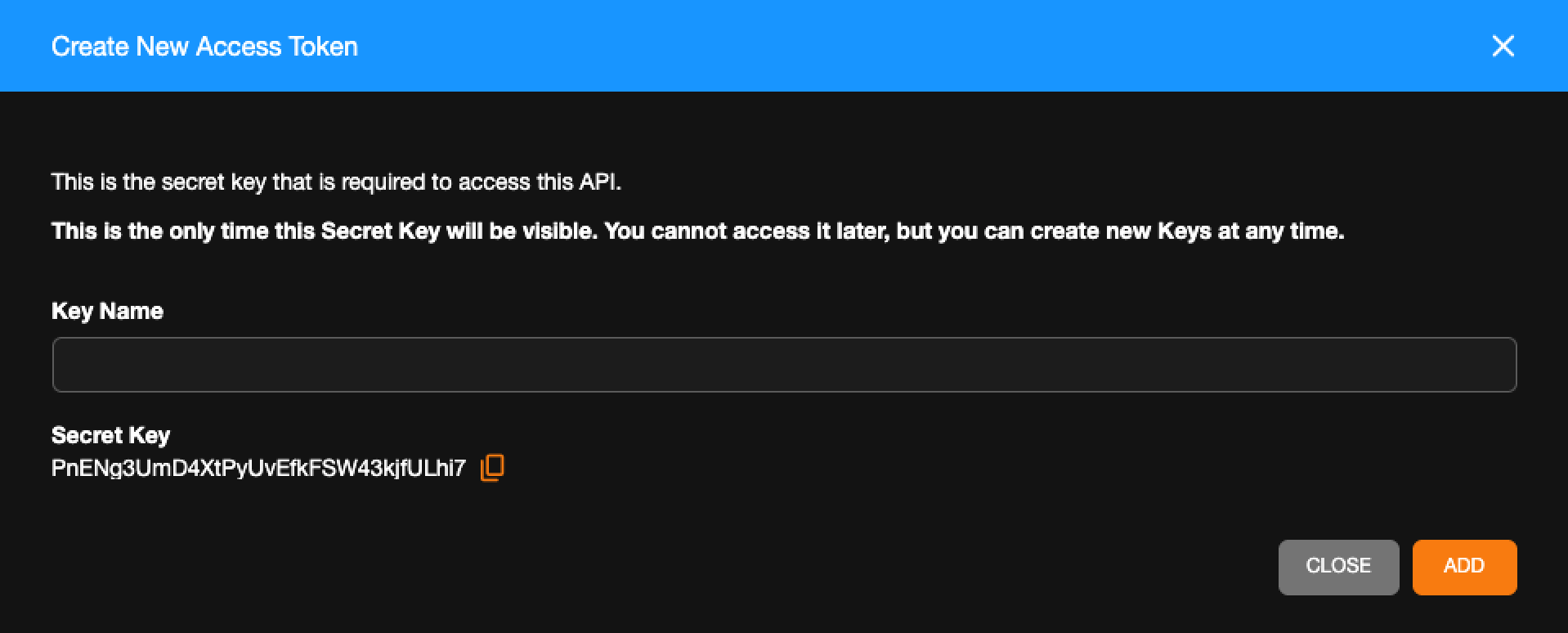

NOTE: The OpenEye Access Key ID and OpenEye Access Key Secret will be created in the OpenEye interface under the Integrations section. The Secret Key will not be visible after the token is created; it must be copied before selecting Add.

During setup and configuration of the OpenEye integration, a Partner will need to select the Cloud Node (PDK Cloud Node) and PDK Partition, then the Device (PDK Device) to associate with the camera(s).

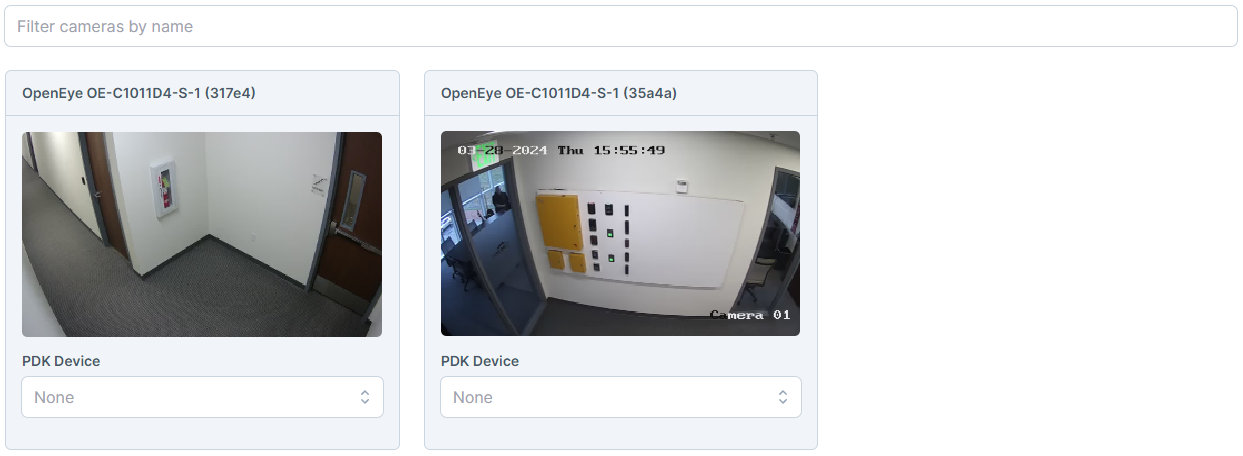

Filter cameras by name -

Camera Name - This displays the name of the Camera as configured in the OpenEye application, above a recent image from the camera in the OpenEye application.

PDK Device - Select the PDK.io Device to associate the Camera with; multiple cameras can be associated with a single PDK.io Device.
