Red Cloud Node Server Edition Manual
Rev: 1.1.0
Table of Contents
| Package Contents | Specifications | Installation | Connections |

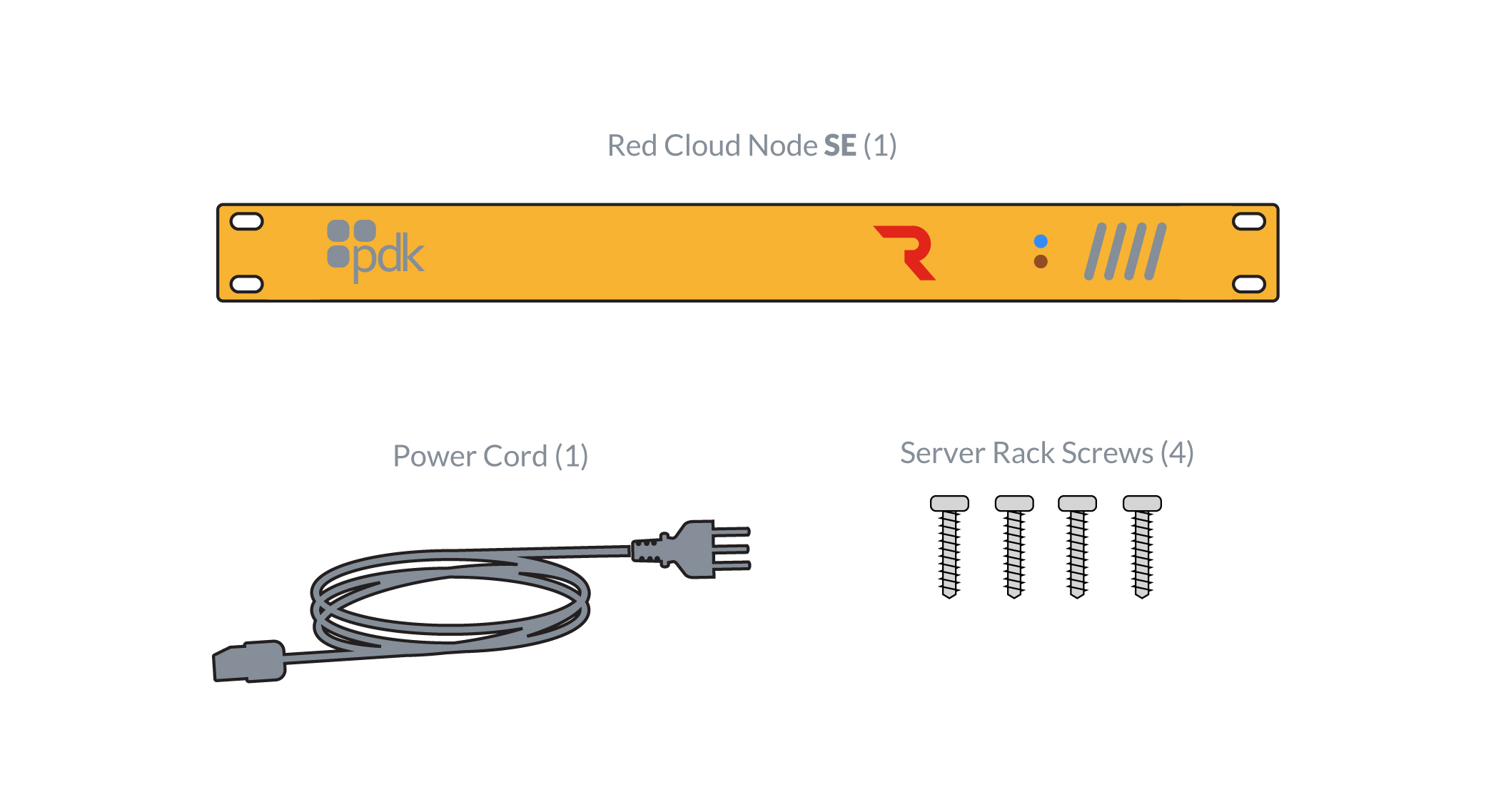

Package Contents
The Red Cloud Node SE comes standard with Ethernet as well as an onboard power supply that is built into the Cloud Node.
|
Specifications
| Connections | Communication Options | Environmental |
| Enclosure | Weight | Compliance |
Connections
- 110/220VAC Power Connection
- Ethernet Connection
Communication Options
- Ethernet
- WiMAC Wireless: Through an Ethernet to Wireless Gateway (LZE) only.
- Encryption: AES 128bit
Environmental
- Temperature: -20ºC ~ +60ºC / -4ºF ~ +140ºF
- Humidity: 0%–95% relative humidity noncondensing
Enclosure
- Dimensions (W x H x D) - 19” x 1.75” x 13” (1U rack height)
- Mountable in a standard in a 1U 19" server rack.
Weight
- 9.4 lbs (4.26kg/150.4oz)
Installation
This section of the manual provides instructions for installing the ProdataKey Red Cloud Node SE. Before you begin the installation, read the instructions thoroughly. Make sure you have read and understood the Safety Information.
WARNING: Disconnect power before working with the ProdataKey product. DO NOT mount the product while power is applied. Always apply power at the end of the installation after verifying wiring connections are correct; incorrect wiring could cause damage to the product.
| Pre-Installation Requirements | Mounting Instructions | Power / Battery |
Pre-Installation Requirements
Power
- 110-220v AC Input power cord
Recommended Tools
- Phillips / Slotted screwdriver (to match screw heads)

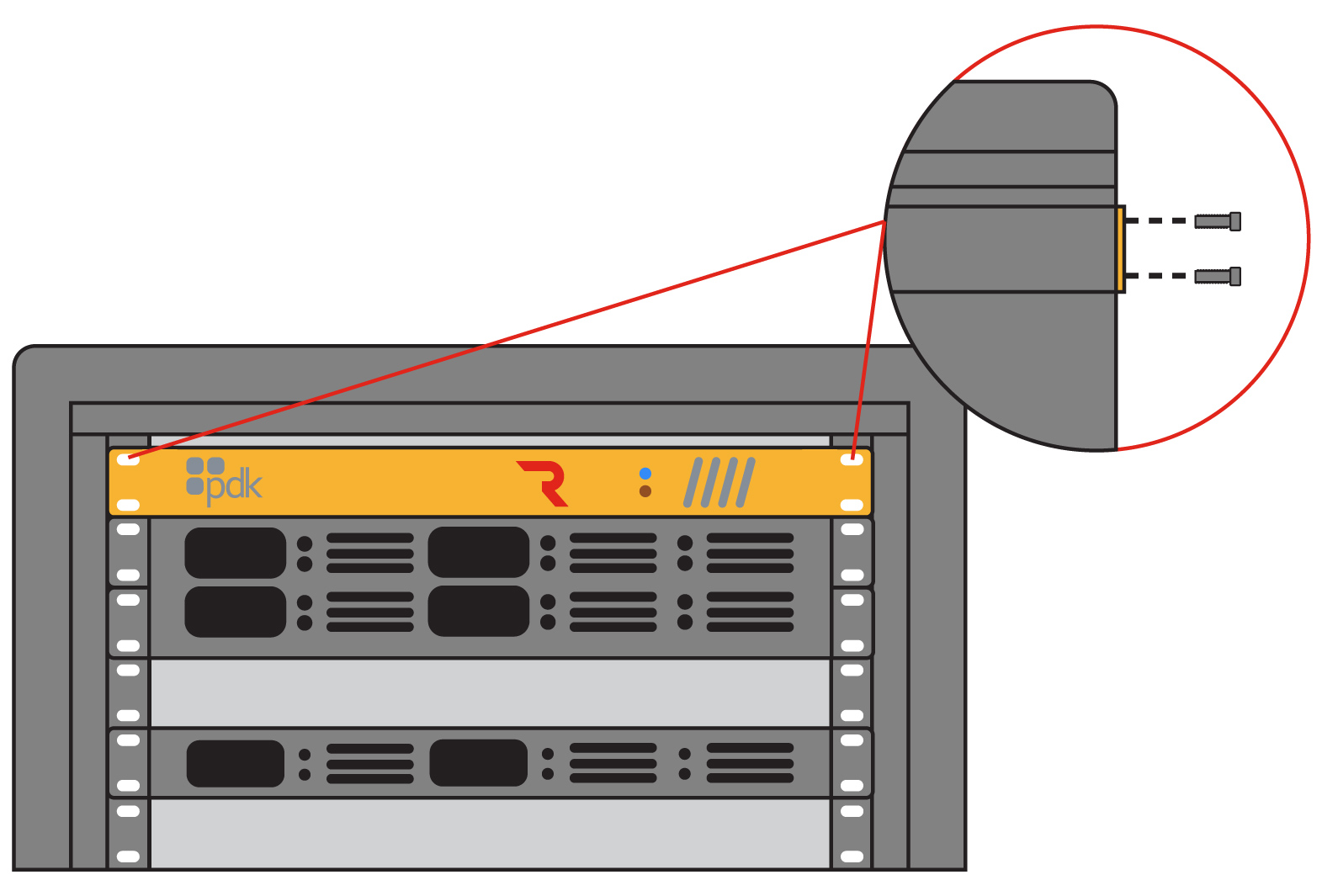

Mounting Instructions
- Mount the Red Cloud Node SE in an available 1U height position in a 19" server rack.
- Install the Red Cloud Node SE in an environmentally controlled and secure area.
- Align the enclosure’s holes to the holes in the server rack and mount the enclosure with the screws, so that the enclosure is securely fastened to the rack.
Power / Battery
The Red Cloud Node SE does not include an internal backup battery. To provide backup battery functionality for the Red Cloud Node SE, an external backup battery or Uninterruptible Power System (UPS) will need to be installed (rack-mounted or standalone).
Connections
| Enclosure Overview |
Enclosure Overview

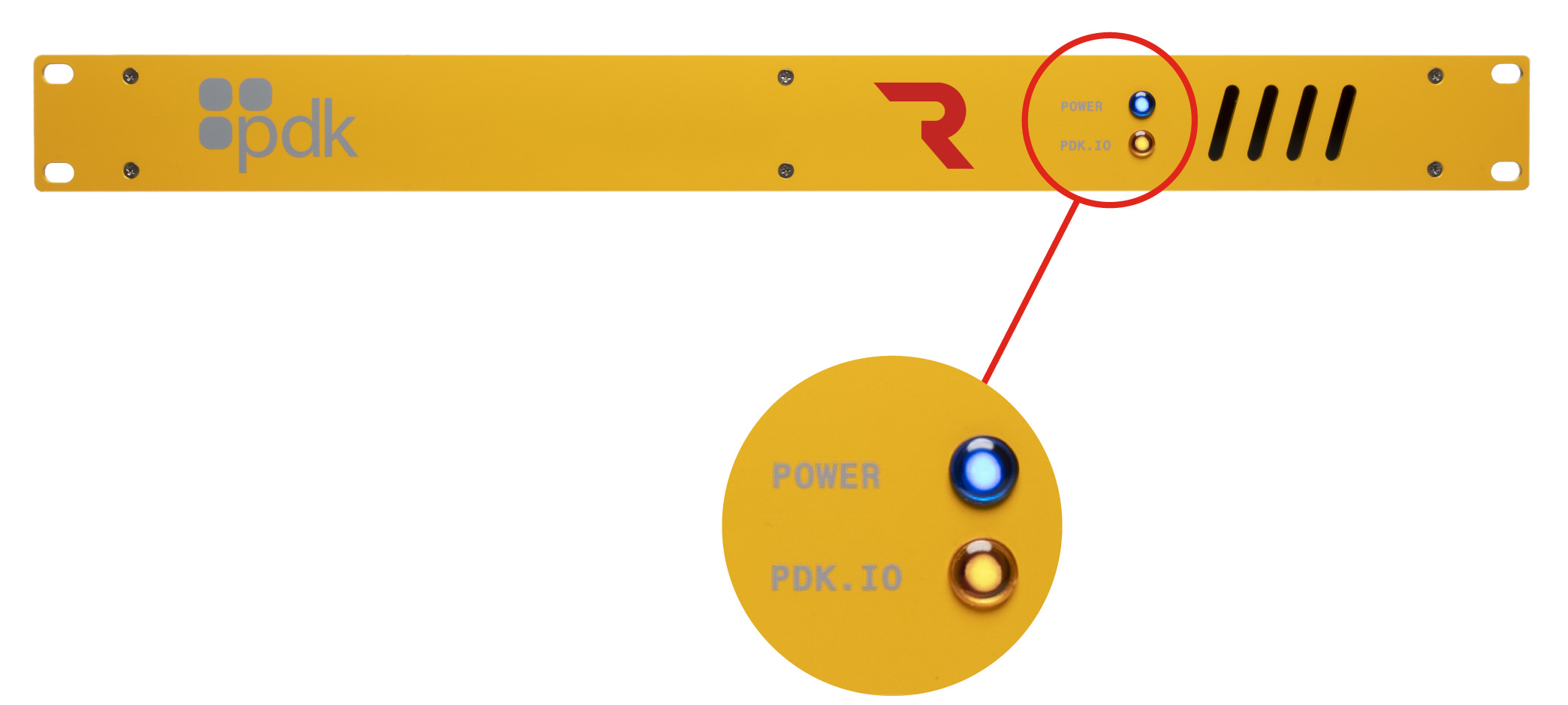

| The image above shows the front of the Red Cloud Node SE with the status indicators. |
|
Front Status Indicators Power - The Red Cloud Node Server Edition is powered on PDK.IO - The Red Cloud Node Server Edition is connected to PDK.io when lit |
|

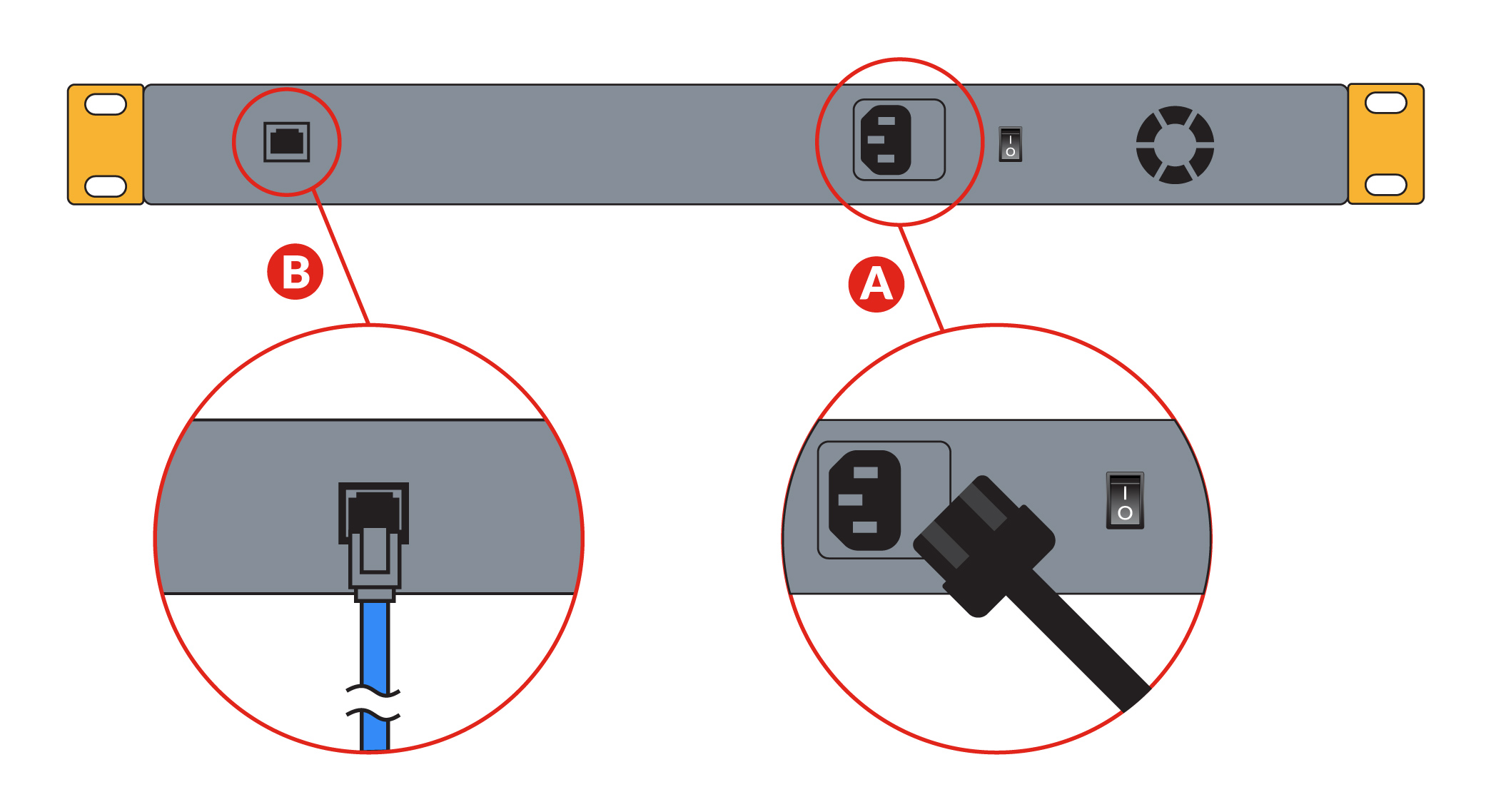

Ethernet Connection (A) 110-220VAC Power - A connection to a 110/220VAC outlet or power source is required. (B) Ethernet Connection - An Ethernet connection is required for the Red Cloud Node (Ethernet) to function as expected. |
Compliance Information
| Notices | FCC Compliance | Liability |
| Intellectual Property Rights | Hardware Notices | Trademark Acknowledgments |
| Regulatory Information | Safety | Disposal and Recycling |
Notices
- The ProdataKey Red Cloud Node SE is intended for indoor use only.
- The ProdataKey product shall be installed by a trained professional.
- The ProdataKey product shall be used in compliance with local laws and regulations.
- Mount in a dry, well-ventilated, secure environment. Do not install the enclosure on unstable brackets, surfaces, or walls.
- Use only applicable tools when installing the ProdataKey product. Using excessive force while mounting the product could cause damage.
- Avoid exposing ProdataKey product to shocks or heavy pressure.
- Do not use chemicals, caustic agents, or aerosol cleaners to clean the product. Use a clean cloth dampened with pure water for cleaning the exterior of the enclosure.
- Use only accessories that comply with the technical specification of the product. These can be provided by ProdataKey or a ProdataKey authorized third-party vendor.
- Use only spare parts provided by or recommended by ProdataKey Support or a product reseller.
- Do not attempt to repair the product by yourself. Contact ProdataKey Support or your ProdataKey authorized distributor for service matters.
- Protect the power cord and Ethernet cable from being pinched, particularly where the wiring exits the box.
FCC Compliance
FCC Compliance Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.
Product can be used without license conditions or restrictions in all European Union countries, including Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Luxembourg, The Netherlands, Portugal, Spain, Sweden, and the United Kingdom, as well as other non-EU countries, including Iceland, Norway, and Switzerland.
Liability
ProdataKey makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. ProdataKey shall not be liable, nor responsible for incidental or consequential damages in connection with the furnishing, performance, or use of this material. This product is only to be used for its intended purpose.
Every care has been taken in the preparation of this document. Please feel free to inform ProdataKey Support of any inaccuracies or omissions in this documentation. We welcome your feedback and suggestions. ProdataKey cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and documentation without prior notice.
Intellectual Property Rights
Patents Pending - ProdataKey has intellectual property rights relating to technology embodied in the product described in this document.
Hardware Notices
This equipment must be installed and used in strict accordance with the instructions given in the user documentation. This equipment contains no user-serviceable components. Wiring methods shall be in accordance with the National Electrical Code, ANSI/NFPA 70. Unauthorized equipment changes or modifications will invalidate all applicable regulatory certifications and approvals.
Use only accessories that comply with the technical specification of the product. These can be provided by ProdataKey or an approved third party. Use only spare parts provided by or recommended by ProdataKey.
After the system is installed and working properly, no further maintenance or testing is required.
Do not attempt to repair the product by yourself. Contact ProdataKey Support or your ProdataKey authorized distributor for service matters.
Trademark Acknowledgments
ProdataKey, Prodata Key, prodatakey, PDK, Prodata, are registered trademarks or trademark applications of ProdataKey in various jurisdictions. All other company names and products are trademarks or registered trademarks of their respective companies. Permission to use, copy, modify, and distribute this software and its documentation for any purpose with or without fee is hereby granted, provided that the copyright notice appears in all copies and that both the copyright notice and this permission notice appear in supporting documentation.
Regulatory Information
Electromagnetic Compatibility (EMC)
This equipment has been designed and tested to fulfill applicable standards for
- Radio frequency emissions when installed according to the instructions and used in its intended environment.
- Immunity to electrical and electromagnetic phenomena when installed according to the instructions and used in its intended environment.
Safety
This manual has been prepared to help you install the product. Read through the installation instructions carefully before installing the product. Keep the guide for future installation and maintenance reference.
This product complies with IEC/EN/UL 60950-1, Safety of Information Technology Equipment. If your connecting cables are routed outdoors, the product shall be grounded either through a shielded network cable (shielded twisted pair) or another appropriate method.
The power supply used with this product shall fulfill the requirements for Safety Extra Low Voltage (SELV) and Limited Power Source (LPS) according to IEC/ EN/UL 60950-1.
Disposal and Recycling
When this product has reached the end of its useful life, dispose of it according to local laws and regulations. For information about your nearest designated collection point, contact your local authority responsible for waste disposal. In accordance with local legislation, penalties may be applicable for incorrect disposal of this waste.
Supported Readers
Most Wiegand and OSDP readers are compatible with the ProdataKey hardware. For information regarding the ProdataKey readers, see the available product data sheets at ProdataKey Readers
PDK Certification and Tutorials
Visit ProdataKey accesscontrol101.com for certification training and tutorials.
Manufacturer’s Limited Warranty
One to five-year warranty against defects in materials and workmanship. Full details at https://www.prodatakey.com/warranty.
Support / Sales
Technical Support
- Phone: 801.317.8802 option #2
- Email: support@prodatakey.com
- Direct Dealer Support Line: 801.206.4086
Sales:
- Phone: 801.317.8802 option #1
- Email: sales@prodatakey.com
Copyright
© 2022 ProdataKey, LLC. All rights reserved. ProdataKey, the ProdataKey logo, the Red logo and other ProdataKey marks are owned by ProdataKey, LLC and may be registered. All other trademarks are the property of their respective owners. ProdataKey assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice.
Red Cloud Node SE Instruction Manual
ProdataKey Head Ends
Ver. 1.1.0
Date: December 2022
